1.85mm Male to 1.85mm Male Test Cable using HLL125 Low Loss Flexible Cable, Phase Stable vs. Flexure, 24 Inches

$275.00
Part #:
HLL125-VP-VP-24
Brand:
HASCO Components
Weight:
4.00 Ounces
Shipping:
Calculated at checkout
Current Stock:
24

For quantities greater than current stock levels, please contact customer service at 1-888-498-3242

Pricing by Quantity:

QUANTITY

1 to 24

Buy 25 - 49

Buy 50 or above

PRICE

$275.00

$260.00

$252.00

ADD TO WISHLIST

Description

HASCO Part Number: HLL125-VP-VP-24

RF Cable Assemblies offered by HASCO Components are available in a variety of RF connectors and custom lengths for production and testing environments.  HLL125-VP-VP-24 is an RF test cable manufactured by HASCO Components.  The RF cable used is HLL125, it is designed to be Phase Stable against Flexure. HLL125-VP-VP-24 has 1.85mm Male to 1.85mm Male connectors. This RF Assembly is rated up to 67 GHz. For additional technical information please refer to the datasheet. HASCO Cage Code: 0T8L4.

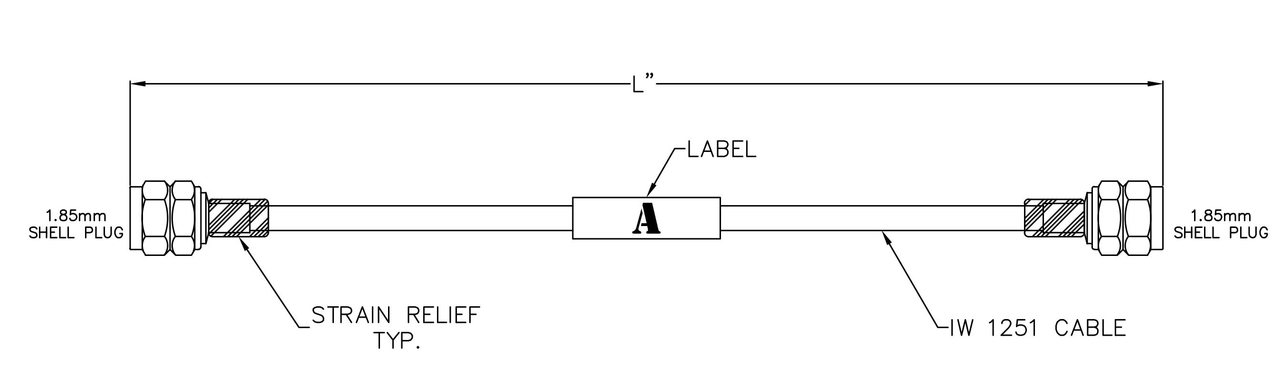

pdf-icon.png« Click Here for the HLL125-VP-VP-24 Datasheet pdf-icon.png« Click Here for the HLL125-VP-VP-24 Outline Drawing

FEATURES:

  •  RoHs Compliant

  •  Low Loss, Low VSWR, High Reliability

  •  Temperature Range:  -65°C ~ +200°C

  •  Phase Stability Vs. Flexure: ± 15° @ 67GHz
    (When wrapped 360°around a 2" diameter mandrel)

  •  Cable Insertion Loss: - 2.10 dB per ft @ 65 GHz + Connector Loss: 0.4 dB per Connector

  •  Amplitude Stability: < ±0.2 dB through 67 GHz

ELECTRICAL SPECIFICATIONS:

Max Frequency (GHz)

67









Capacitance (pF/ft)

27









Velocity Propagation (%)

75









RF Leakage @ 18 GHz (dB)

<100









Time Delay (ns/Ft)

1.35









Impedance (Ohms)

50









Frequency (GHz)

6

18

26.5

40

67

Power CW (Watts)

93

39

30

20

13

Phase Stability vs. Flexure (°)

±1.50

±4.00

±6.00

±10.00

±15.00

MECHANICAL SPECIFICATIONS:

Cable Dia. (Inch)

0.110

Min. bend radius (Inch)

0.5

Recommend Bend Radius (Inch)

4.00"

Temperature Range (°C)

-65 to +200

MATERIALS AND FINISHES:

DESCRIPTION

MATERIALS

FINISH OR COLOR

Cable Jacket

FEP

Yellow or Black

Marker

Mil-l-23053

White

Contacts

BeCu

Gold Plated

Insulators

XX

None

Connector Bodies

Brass

Gold Plated

Connector Nuts

Stainless Steel

Passivated

Gasket

Silicon Rubber

A-A-59588




Test Data: 1.85mm Male to 1.85mm Male, 24 inches, DC - 67 GHz


*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242
Type:
Coax Cable Assemblies
Style:
Test Cable Assemblies
Application:
1.85mm Male to 1.85mm Male Cable Assemblies
Construction:
Low Loss
Connector 1:
1.85mm Male
Connector 2:
1.85mm Male
Length (in.):
24
Impedance (Ohms):
50
PRODUCT DETAILS
