Description

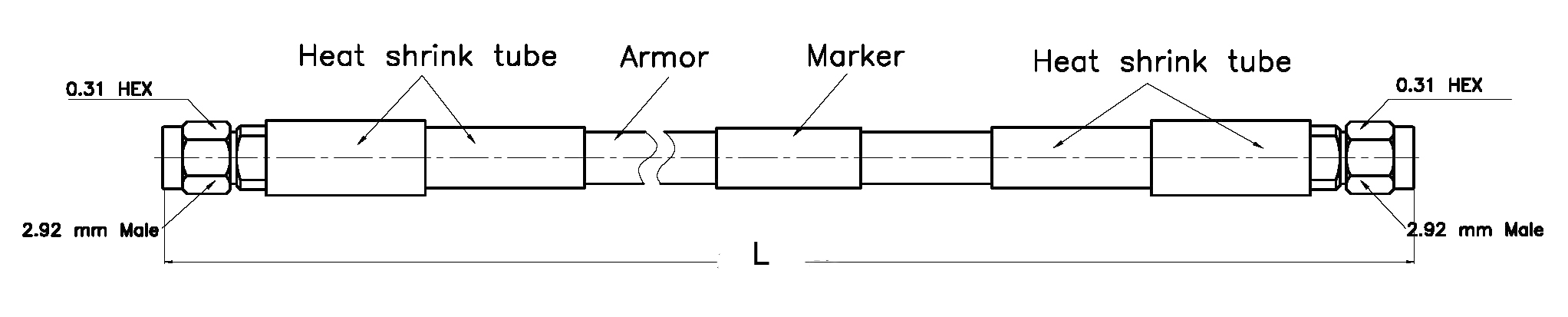

« Click Here for the HSS45A-29P-29P-24 Datasheet« Click Here for the HSS45A-29P-29P-24 Outline DrawingFEATURES:
- RoHS Compliant
- Low Loss, Low VSWR, High Reliability
- Phase Stability Vs. Flexure: ± 8° @ 40GHz
(When wrapped 360°around a 2" diameter mandrel) - Armor: With good results in Resist compression, Resist torsion, Waterproof and Dustproof
- Raw Cable: Cable Insertion Loss: -1.59 dB per Ft @ 40 GHz (Does not include Connectors)
- Amplitude Stability: < ± 0.4 through 40 GHz
ELECTRICAL SPECIFICATIONS:
| Max Frequency (GHz) | 40 |
|
|
|
|
| Capacitance (pF/ft) | 96.44 |
|
|
|
|
| Velocity Propagation (%) | 70 |
|
|
|
|
| RF Leakage @ 18 GHz (dB) |
|
|
|
| |
| Time Delay (ns/Ft) | 1.4 |
|
|
|
|
| Impedance (Ohms) | 50 |
|
|
|
|
| Frequency (GHz) | 2 | 6 | 18 | 26.5 | 40 |
| Power CW (Watts) | 81 | 48 | 21 | 17 | 10 |
| Phase Stability vs. Flexure (°) | ±0.2 | ±0.6 | ±1.86 | ±2.65 | ±8.0 |
MECHANICAL SPECIFICATIONS:
| Armor Max Dia. (Inch) | 0.256 |
| Min. bend radius (Inch) | 1 |
| Recommend Bend Radius (Inch) | 1.5 |
| Temperature Range (°C) | -55 to +200 |
MATERIALS AND FINISHES:
| DESCRIPTION | MATERIALS | FINISH OR COLOR |
| Cable Jacket | FEP | Blue |
| VA Armor | Stainless Steel +PUR | Blue |
| Marker | Mil-l-23053 | White |
| Contacts | BeCu | Gold Plated |
| Insulators | PEEK | None |
| Connector Bodies | Stainless Steel | Passivated |
| Connector Nuts | Stainless Steel | Passivated |
| Gasket | Silicon Rubber | A-A-59588 |
- Type:
- Coax Cable Assemblies
- Style:
- Test Cable Assemblies
- Application:
- 2.92mm Male to 2.92mm Male Cable Assemblies
- Construction:
- Armored Low Loss
- Connector 1:
- 2.92mm Male
- Connector 2:
- 2.92mm Male
- Length (in.):
- 24
- Impedance (Ohms):
- 50
- Max Frequency (GHz):
- 40
- Series:
- HSS45A
