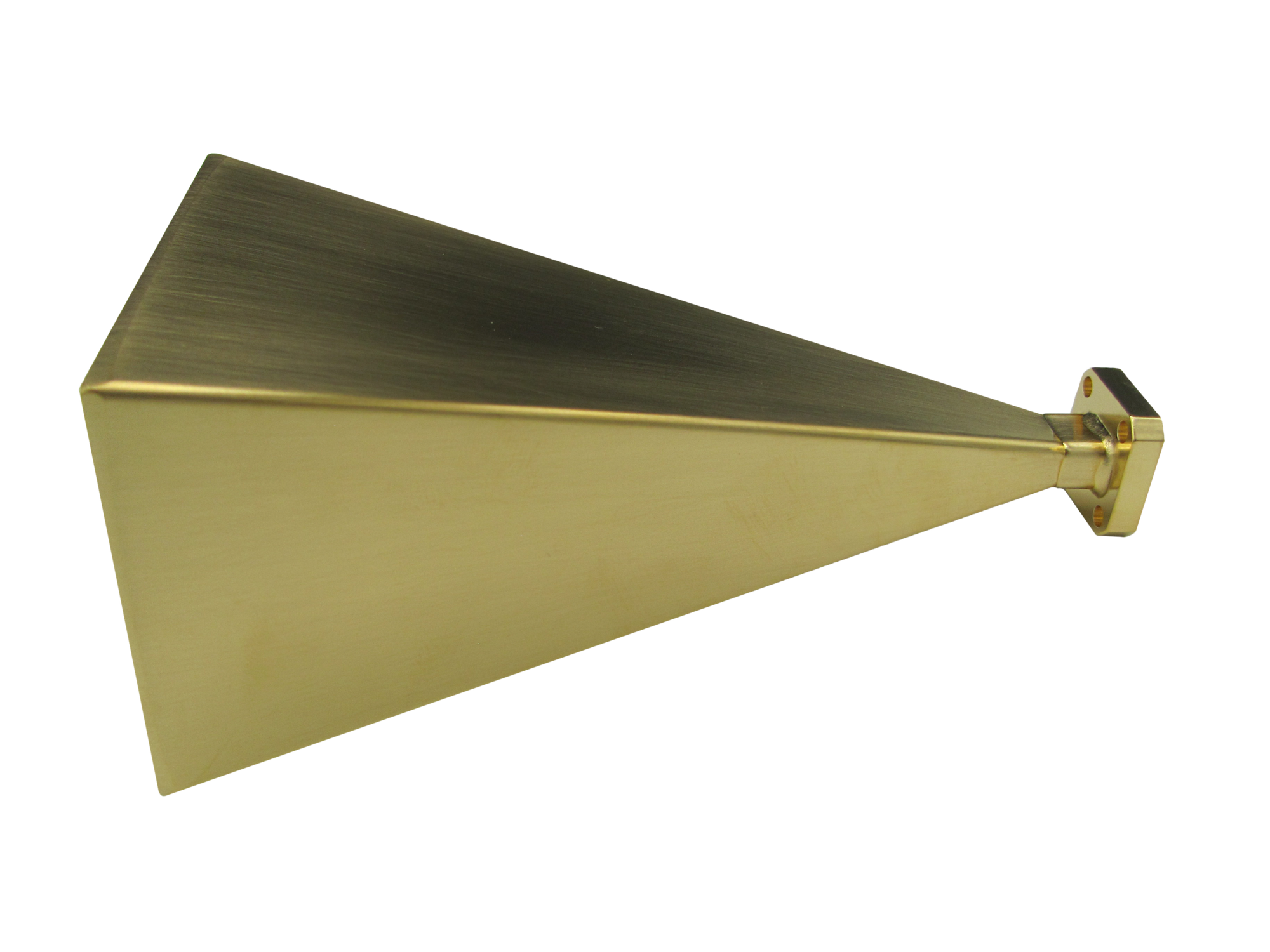

WR-28 Rectangular Standard Gain Horn Antenna, Ka Band - 26.5 to 40 GHz

P/N: HWSGH28-23-ES

Brand: HASCO Components

The HWSGH28-23-ER is a Ka-band WR-28 waveguide standard rectangular gain horn antenna that operates from 26.5 GHz to 40 GHz. The antenna offers 23 dBi typical gain, precisely electroformed over a mandrel and gold plated. These horns have a pyramidal shape with a rectangular aperture. The standard gain horn antenna supports linear polarized waveforms. The input of this antenna is a WR-28 waveguide with UG-599/U flange. The standard gain horn antenna is used for antenna range calibration and general-purpose system set ups.

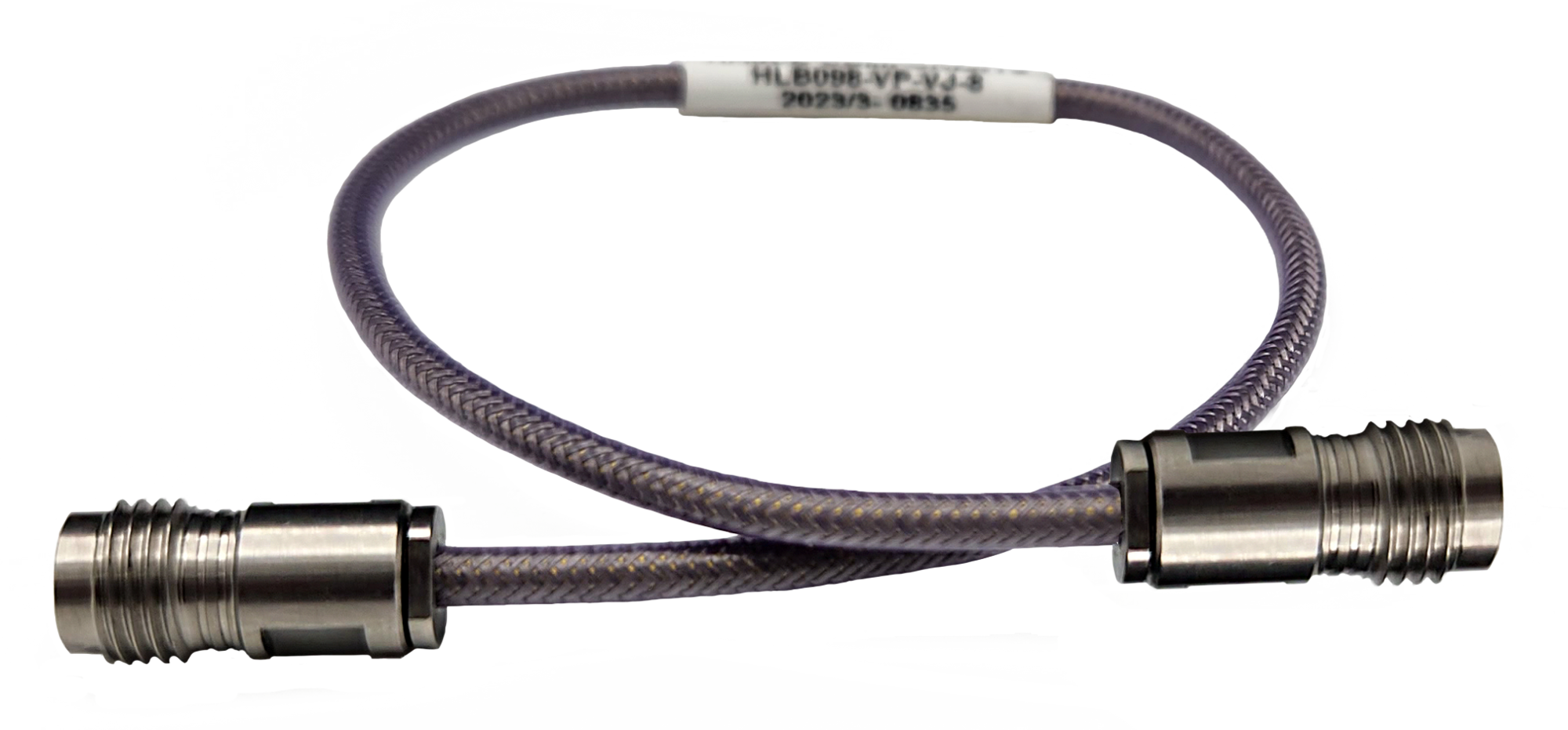

Littlebend HLB098 Ultra Flexible RF Cable with 1.85mm Female Connectors - 8 inch

P/N: HLB098-VJ-VJ-08

Brand: Littlebend

The HLB098 Littlebend Ultra Flexible RF Cable is designed for demanding microwave interconnect requirements. They are phase and amplitude stable. This cable is well suited for dense microwave packaging with a 0.20” minimum bend radius in an 0.098” cable with stainless steel braid. HLB098 Littlebend 67 GHz flexible cables are terminated with high performance 1.85mm straight connectors.

ReFlex RF085 Direct Solder Cable with SMA Male Connectors - 24 inch

P/N: SPSD-TPRF085-240-SPSD

Brand: IW Microwave

The RF Cable Assemblies offered by HASCO Components are available in a variety of RF connectors and custom lengths for production and testing environments.  The cable assembly from IW Microwave uses an RF085 ReFlex coax type and SMA Male to SMA Male connectors. This RF Assembly is available in with different connectors and operating frequency ranges. Available with FEP jacket.

HASCO RF MARKETING PARTNER

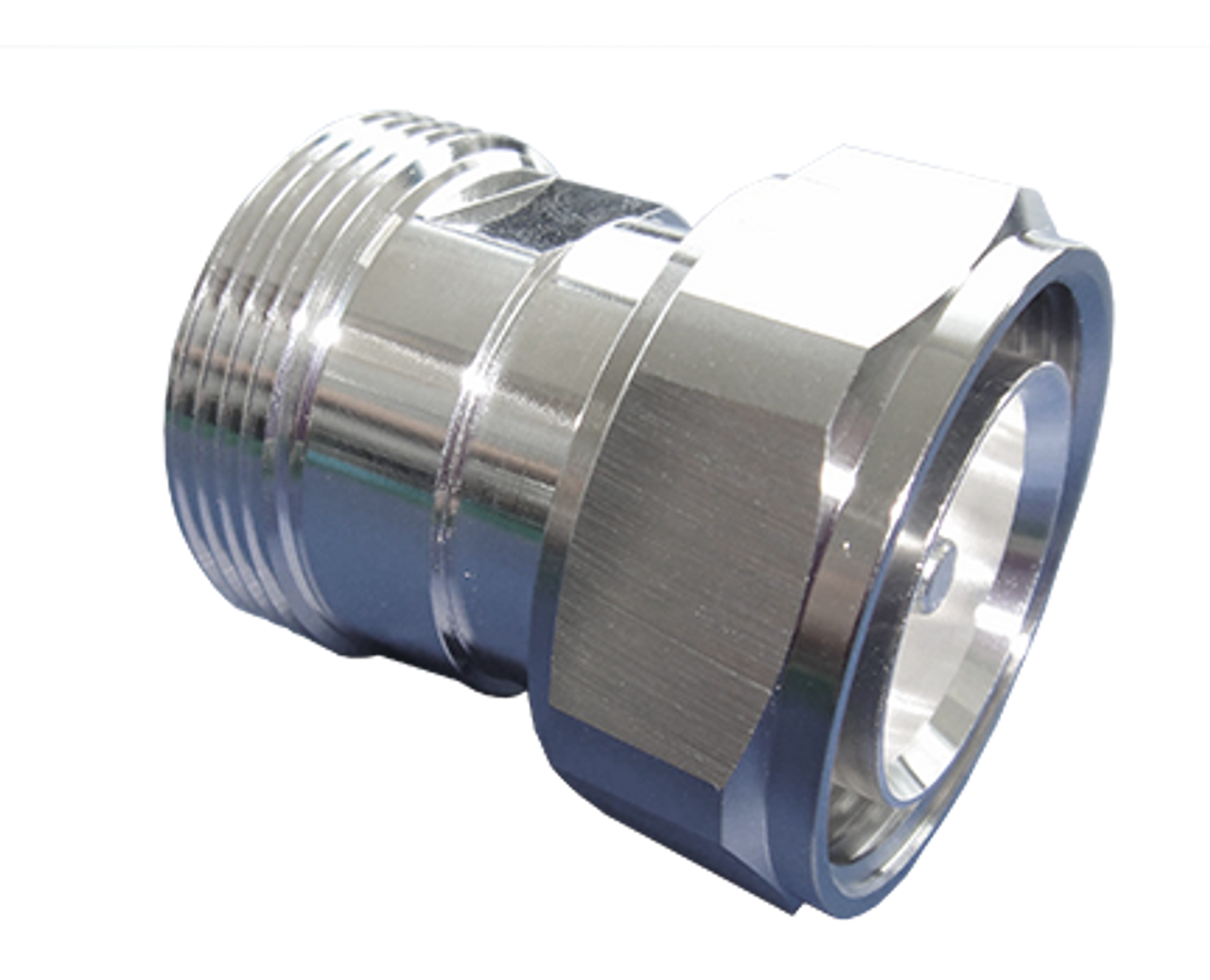

7/16 DIN Male to 7/16 DIN Female Low PIM Adapter - 168 dBc

P/N: 716P-716J-SLP

Brand: HASCO Components

The 716P-716J-SLP is a Low PIM 7/16 DIN Male to 7/16 DIN Female in series adapter manufactured by HASCO Components. PIM is the term used to describe the unwanted signals created by multiple frequencies traveling through the same interface. This connector is identified as Low PIM because of its PIM performance of - 168 dBc.

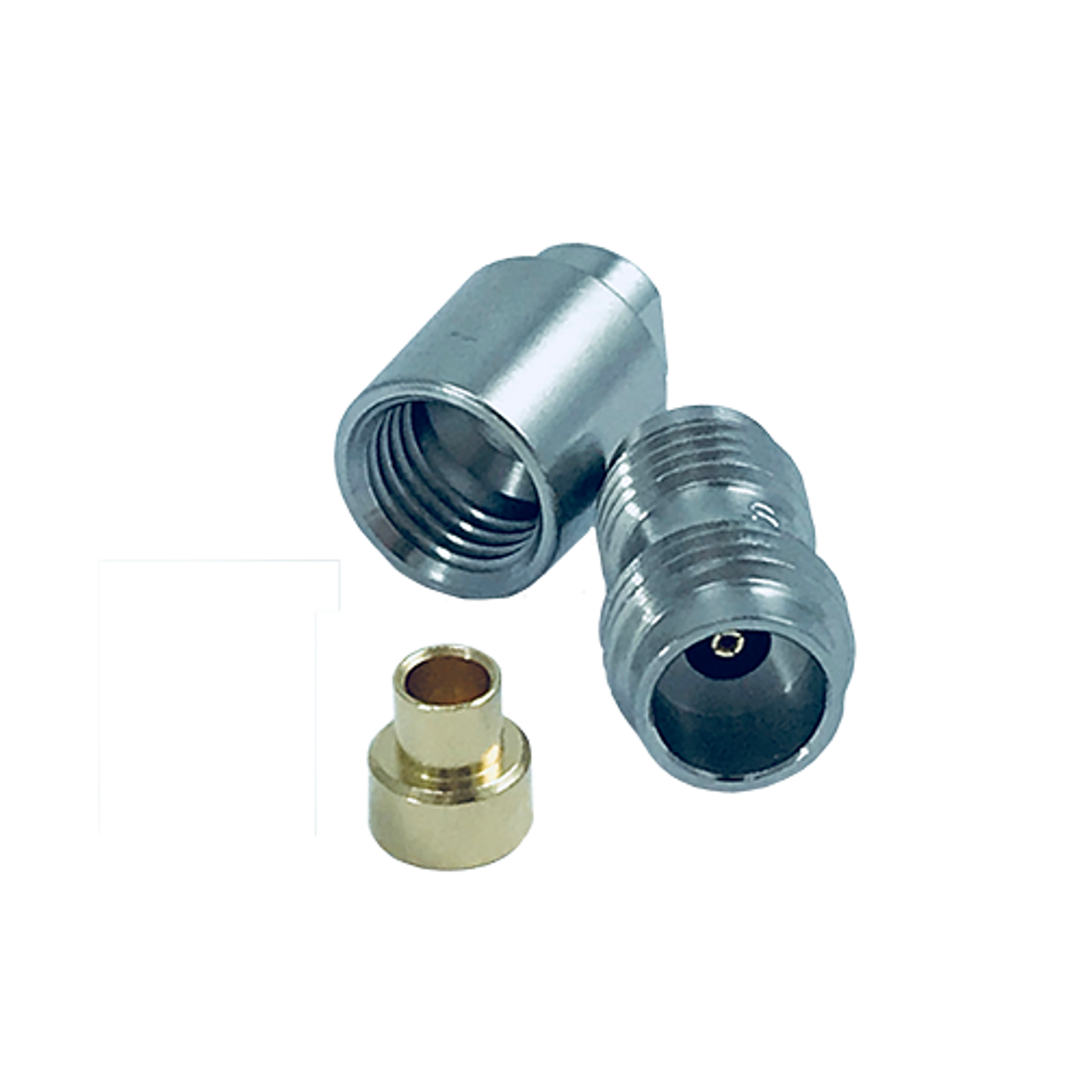

2.4mm Female Field Replaceable Cable Connector, 0.086" Cable - DC to 50 GHz

P/N: 1402-02SF

Brand: Southwest Microwave

The 1402-02SF is a 2.4mm Female Field Replaceable cable connector manufactured by Southwest Microwave. This 2.4mm Female accepts a 0.086" cable and will operate up to 50 GHz. The cable center conductor diameter is .020" All Southwest Microwave field replaceable cable connectors are made of Passivated Steel with Gold Plated Beryllium Copper center contacts. This connector conforms to MIL-STD-348A and MIL-PRF-39012.
