Description
Features
• RoHs Compliant

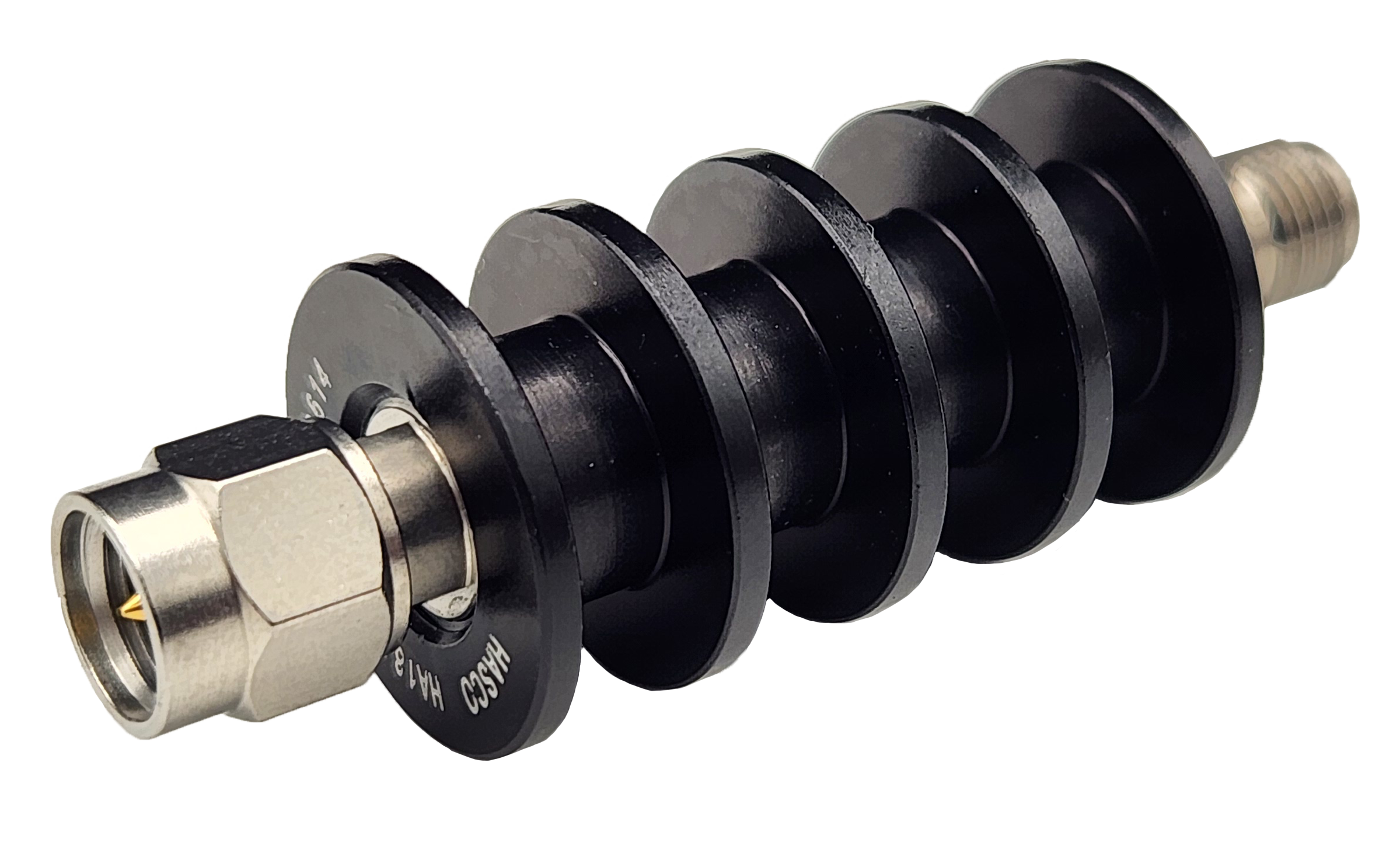

The HASCO HA18A10WS-dB is an SMA Male to Female Attenuator. This type of Attenuator is bidirectional. Attenuators like this HA18A10WS-dB are used to reduce or step down the power level of a signal while maintaining the waveforms integrity. The operating frequency for this model is DC to 18 GHz and is rated for 10 Watts. HASCO Cage Code: 0T8L4
« Datasheet
Item |
Specification |
||||||||||||||||
|
Impedence |
50 Ohms |
||||||||||||||||
|
Frequency Range |
DC to 18 GHz |
||||||||||||||||
|
VSWR |
1.20:1 @ DC - 4 GHz |
||||||||||||||||
|
Power |
10 Watts |
||||||||||||||||
|
Attenuation Accuracy |
|
Item |
Specification |
|
Durability |
500 Cycles Min |
Item |
Specification |
|
Temperature Range |
-40°C to 125°C |
Material
Item |
Specification |
|---|---|
|
Body |
Passivated Stainless Steel Type 303 |
|
Contact |
Gold plated BeCu |
- Adapter Body Style:
- Straight
- Connector 1 Gender 1:
- Male
- Connector 1 Series 1:
- SMA
- Frequency Range (Max):
- 18 GHz
- Frequency Range (Min):
- DC
- VSWR 1 Value:
- 1.20:1
- VSWR 1 Frequency (Min):
- DC
- VSWR 1 Frequency (Max):
- 4 GHz
- VSWR 2 Value:
- 1.25:1
- VSWR 2 Frequency (Min):
- 4 GHz
- VSWR 2 Frequency (Max):
- 8 GHz
- Power Rating 1 Value:
- 10 Watts
- Type 1:
- Attenuator
- VSWR 3 Frequency (Min):
- 8 GHz
- VSWR 3 Frequency (Max):
- 12.4 GHz
- VSWR 3 Value:
- 1.30:1
- VSWR 4 Frequency (Min):
- 12.4 GHz
- VSWR 4 Frequency (Max):
- 18 GHz
- VSWR 4 Value:
- 1.35:1
- Body Material:
- Stainless Steel
- Body Plating:
- Passivated
- Center Contact Material:
- BeCu
- Center Contact Plating:
- Gold
- dB Value:
- 3 dB
- Connector 1 Series 2:
- SMA
- Connector 1 Gender 2:
- Female
- Connector 2 Series 1:
- SMA
- Connector 2 Series 2:
- SMA
- Connector 2 Gender 1:
- Female
- Connector 2 Gender 2:
- Male
