Bias Tees

HASCO’s ultra-broadband bias tees deliver exceptional performance from 200 MHz to 50 GHz, combining ultra-low insertion loss (≤1.25 dB from 0.1–18 GHz or ≤1.5 dB to 40 GHz), high DC bias capability (up to 50 VDC / 225–250 mA with isolation to 400 kHz), and superior RF match (≤1.55:1 VSWR and ≥20 dB return loss from 0.1–12 GHz) to ensure maximum power transfer and minimal signal degradation. Engineered with rugged gold-plated brass and BeCu contacts and rated for -55 °C to +125 °C, these bias tees deliver the reliability required for demanding aerospace, defense, and test environments.

Product

Product Name

Part #

Price

200 MHz to 40 GHz Bias Tee with 2.92mm Male Input and 2.92mm Female Output

HBT40-20040-MF

Price: $979.38

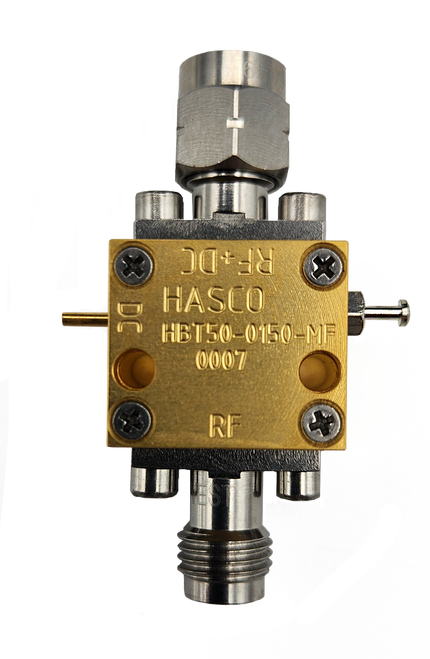

Bias Tee with 2.4mm Female to 2.4mm Male Connectors - 50 GHz

HBT50-0150-MF

Price: $1,863.64
Bias Tee with 2.92mm Female to 2.92mm Male Connectors - 40 GHz

HBT40-0140-MF

Price: $1,545.45
Bias Tee with SMA Female to SMA Male Connectors - 18 GHz

HBT18-0118-MF

Price: $1,363.64
