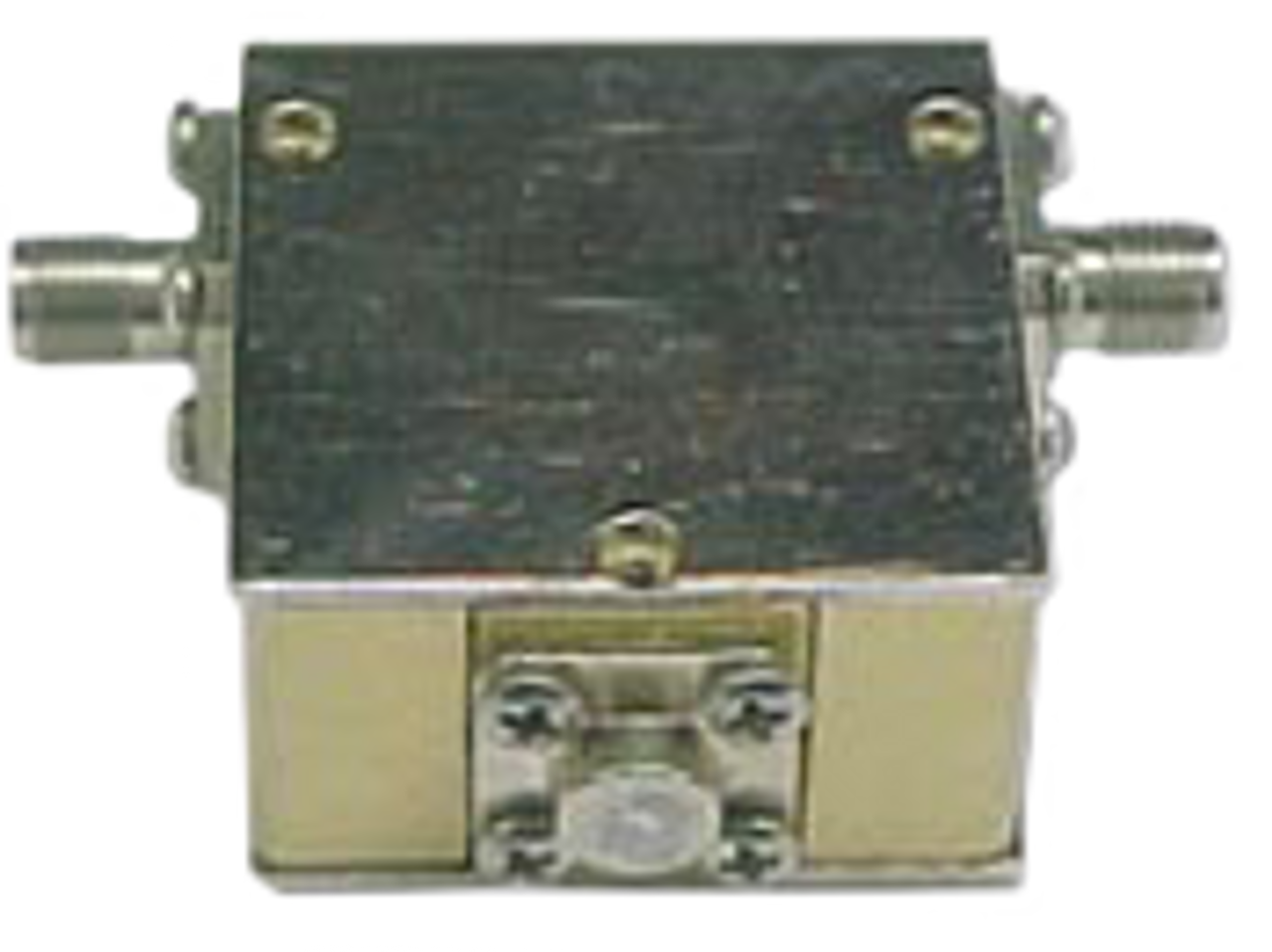

SMA Isolator, 1.7 GHz to 2.2 GHz, 150 Watts

The HSI1722S is a high-power SMA isolator engineered for RF systems operating between 1.7 GHz and 2.2 GHz. It supports an average forward power of 150 Watts and can handle peak powers up to 500 Watts, with a reflective power capacity of 10 Watts. The device offers a typical insertion loss of 0.40 dB and maintains a VSWR of 1.25:1, ensuring efficient signal transmission. With an isolation of 20 dB, it effectively minimizes signal reflection and interference. Constructed with SMA (Jack/Female) nickel-plated brass connectors and gold-plated beryllium copper contact pins, the HSI1722S is designed for durability and reliable performance in demanding RF applications.

Enhance your RF system's reliability with the HSI1722S — robust, efficient, and built for high-power applications.

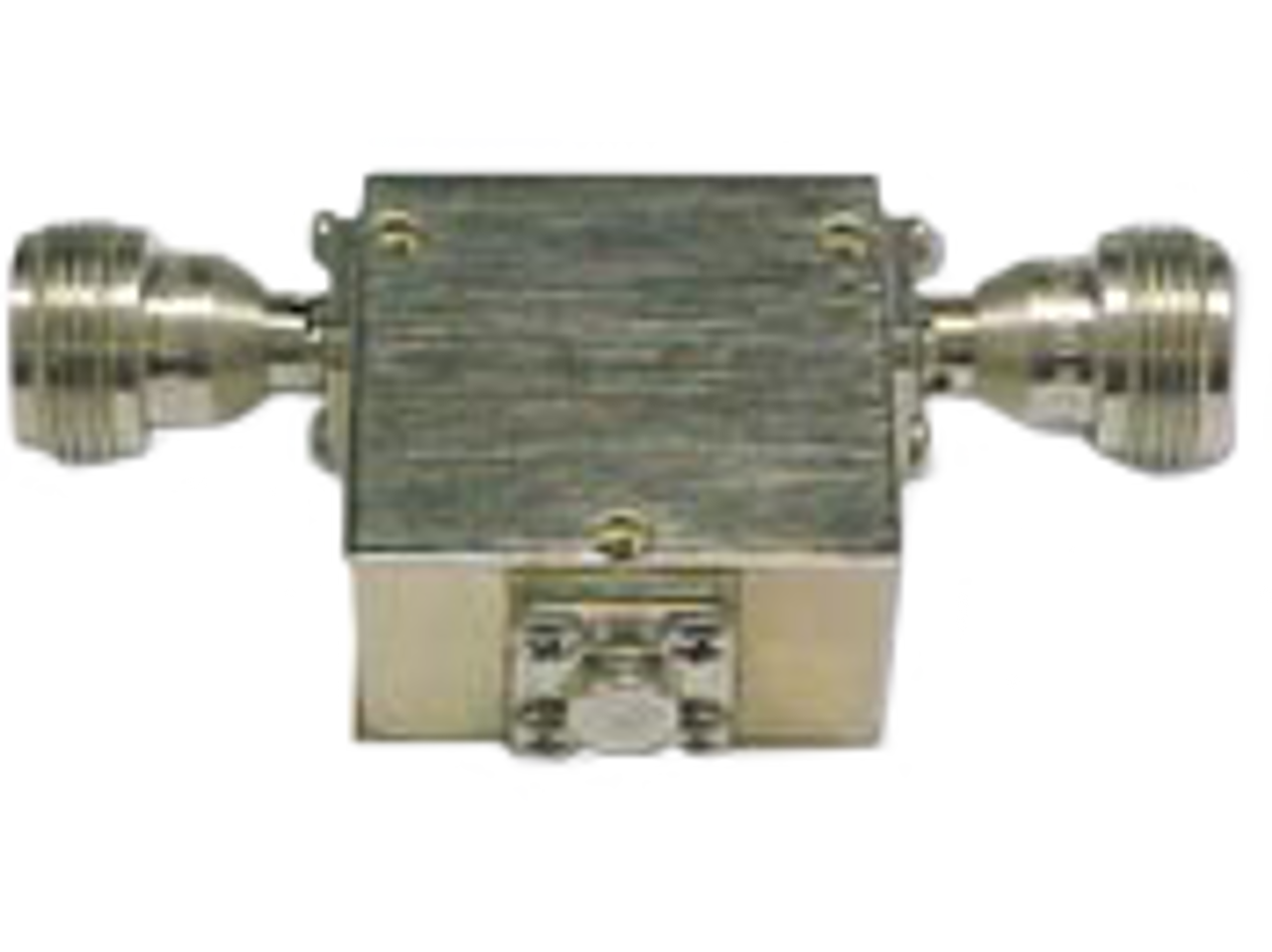

Type N Isolator, 1.7 GHz to 2.2 GHz, 200 Watts

The HSI1722N is a high-power N-type isolator designed for broadband RF applications from 1.7 GHz to 2.2 GHz. It delivers robust performance with 200 Watts average forward power handling and supports 10 Watts of reflected power, making it ideal for high-demand environments. The unit features a low insertion loss of 0.40 dB (typical), 20 dB isolation, and a 1.25:1 VSWR, ensuring excellent signal integrity and protection for sensitive components.

Power your RF chain with the HSI1722N — engineered for strength, precision, and continuous performance.

2.92mm Isolator, 26.5 GHz to 40 GHz, 5 Watts

The HSI2640 is a precision-engineered 2.92mm coaxial isolator designed for high-frequency applications spanning 26.5 GHz to 40 GHz. It supports up to 5 Watts of average forward power and accommodates 2 Watts of reflected power, making it ideal for demanding millimeter-wave systems. With a compact form factor and robust construction, the HSI2640 ensures reliable performance in advanced RF environments.

Elevate your high-frequency designs with the HSI2640 — compact, resilient, and optimized for 40 GHz operation.

HASCO RF MARKETING PARTNER

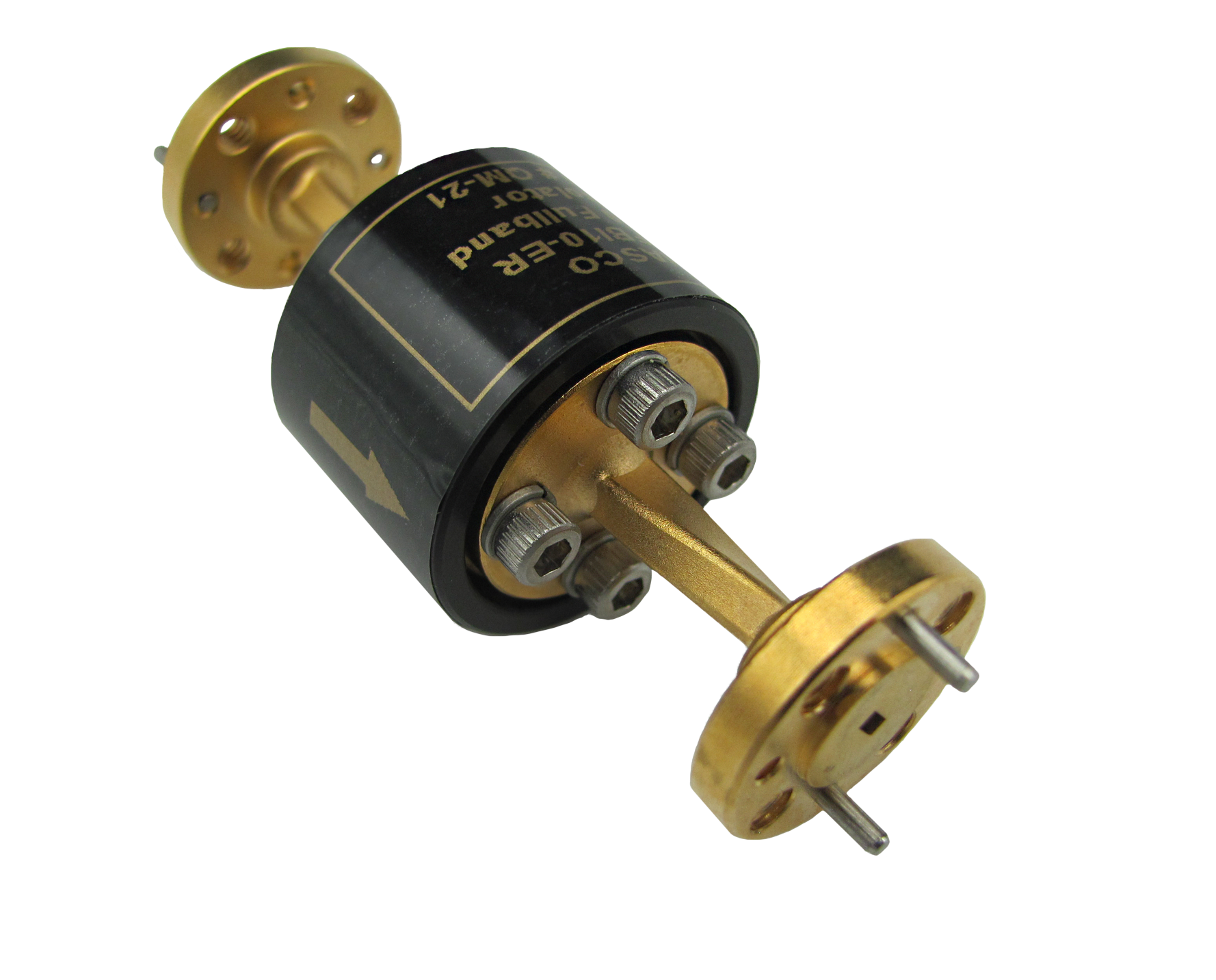

WR-10 Full Band Isolator - 75 to 110 GHz

The HWFBI10-ER is a WR-10 full-band waveguide isolator engineered for millimeter-wave systems operating from 75 to 110 GHz. Utilizing a magnetized ferrite rod to induce Faraday rotation, it effectively suppresses reflected signals, ensuring optimal performance in swept-frequency applications. With a maximum insertion loss of 2.5 dB and a minimum isolation of 27 dB, this isolator maintains signal integrity across the entire W-band. Its gold-plated brass UG-387/U-M round flanges and 1 Watt power handling capability make it suitable for test labs, automotive radar systems, and high-frequency sub-assemblies.

Optimize your millimeter-wave designs with the HWFBI10-ER — precision-crafted for superior isolation and reliability up to 110 GHz.

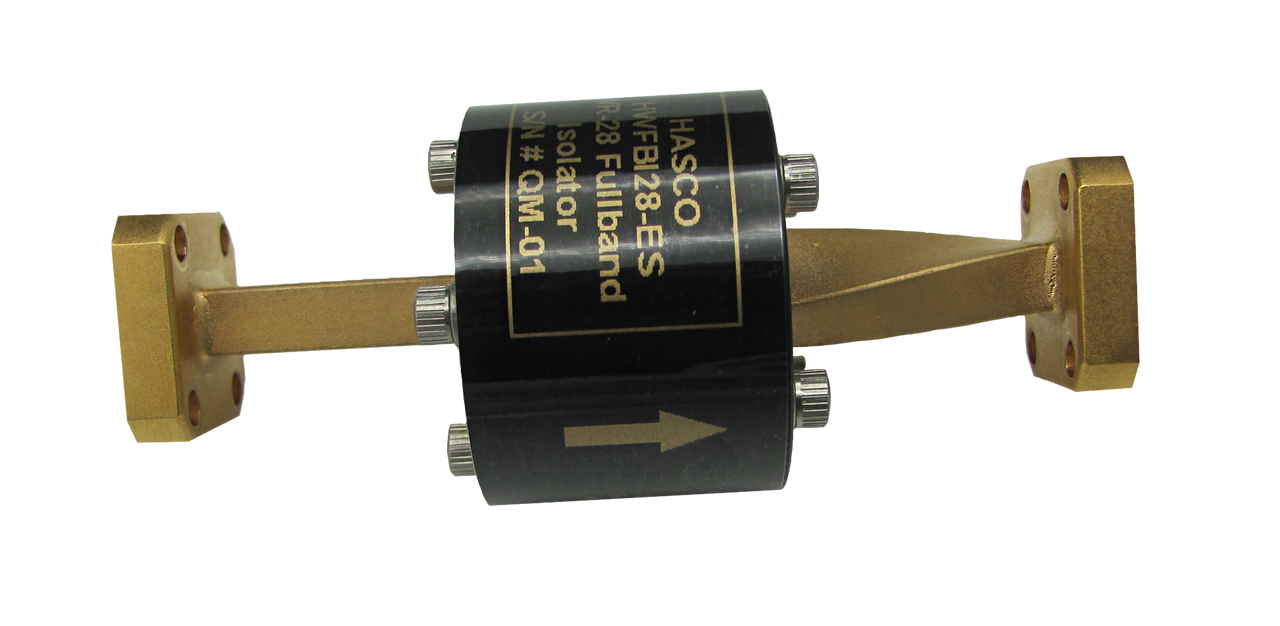

WR-28 Full Band Isolator - 26.5 to 40 GHz

The HWFBI28-ES is a full-band WR-28 waveguide isolator designed for Ka-band applications operating from 26.5 GHz to 40 GHz. It utilizes a longitudinal, magnetized ferrite rod to induce Faraday rotation, effectively attenuating reflected signals and ensuring optimal performance in swept-frequency systems. With a power handling capacity of 1.5 Watts, an isolation of 25 dB, and a gold-plated brass construction featuring UG-599/U flanges, the HWFBI28-ES is ideal for high-frequency applications requiring reliable isolation and minimal insertion loss.

Improve your Ka-band system’s performance with the HWFBI28-ES — a durable isolator designed to ensure stable signal integrity across the full WR-28 frequency range.

HASCO's Quality Standard

When ordering from HASCO, customers can expect several significant benefits. HASCO is renowned for its commitment to producing high-quality products. Our components are carefully crafted using premium materials and advanced manufacturing processes, guaranteeing long-lasting performance and durability.

HASCO's exceptional customer service and technical support add to the overall value. Expert guidance is readily available to assist customers in choosing the right components for their applications, while prompt and reliable delivery ensures customers receive their orders on time.
