2.92mm Male to 2.92mm Male Test Cable using HSS45A Flexible Armored Cable, Phase Stable vs. Flexure, 60 Inches

$226.07
Part #:
HSS45A-29P-29P-60
Brand:
HASCO Components
Weight:
5.00 Ounces
Shipping:
Calculated at checkout

Out of stock - Call for availability

For quantities greater than current stock levels, please contact customer service at 1-888-498-3242

Pricing by Quantity:

QUANTITY

1 to 9

Buy 10 - 24

Buy 25 - 49

Buy 50 or above

PRICE

$226.07

$223.14

$219.30

$212.71

ADD TO WISHLIST

Description

HASCO Part Number: HSS45A-29P-29P-60

RF Cable Assemblies offered by HASCO Components are available in a variety of RF connectors and custom lengths for production and testing environments.  HSS45A-29P-29P-60 is an RF cable assembly manufactured by HASCO Components.  The RF coax cable used is HSS45A, an armored phase stable against flexure RF cable. HSS45A-29P-29P-60 has 2.92mm Male to 2.92mm Male connectors. This RF Assembly is rated up to 40 GHz. For additional technical information please refer to the datasheet. HASCO Cage Code: 0T8L4

pdf-icon.png« Click Here for the HSS45A-29P-29P-60 Datasheetpdf-icon.png« Click Here for the HSS45A-29P-29P-60 Outline Drawing

FEATURES:

  •  RoHS Compliant
  •  Low Loss, Low VSWR, High Reliability
  •  Phase Stability Vs. Flexure: ± 8° @ 40GHz
    (When wrapped 360°around a 2" diameter mandrel)
  •  Armor:  With good results in Resist compression, Resist torsion, Waterproof and Dustproof
  •  Raw Cable: Cable Insertion Loss: -1.59 dB per Ft @ 40 GHz (Does not include Connectors)
  •  Amplitude Stability: < ± 0.4 through 40 GHz

ELECTRICAL SPECIFICATIONS:

Max Frequency (GHz)

40









Capacitance (pF/ft)

96.44









Velocity Propagation (%)

70









RF Leakage @ 18 GHz (dB)











Time Delay (ns/Ft)

1.4









Impedance (Ohms)

50









Frequency (GHz)

2

6

18

26.5

40

Power CW (Watts)

81

48

21

17

10

Phase Stability vs. Flexure (°)

±0.2

±0.6

±1.86

±2.65

±8.0

MECHANICAL SPECIFICATIONS:

Armor Max Dia. (Inch)

0.256

Min. bend radius (Inch)

1

Recommend Bend Radius (Inch)

1.5

Temperature Range (°C)

-55 to +200

MATERIALS AND FINISHES:

DESCRIPTION

MATERIALS

FINISH OR COLOR

Cable Jacket

FEP

Blue

VA Armor

Stainless Steel +PUR

Blue

Marker

Mil-l-23053

White

Contacts

BeCu

Gold Plated

Insulators

PEEK

None

Connector Bodies

Stainless Steel

Passivated

Connector Nuts

Stainless Steel

Passivated

Gasket

Silicon Rubber

A-A-59588


*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242
Type:
Coax Cable Assemblies
Style:
Test Cable Assemblies
Application:
2.92mm Male to 2.92mm Male Cable Assemblies
Construction:
Armored Low Loss
Connector 1:
2.92mm Male
Connector 2:
2.92mm Male
Length (in.):
60
Impedance (Ohms):
50
Max Frequency (GHz):
40
Series:
HSS45A
PRODUCT DETAILS
HASCO Part Number: HSS45A-29P-29P-60

RF Cable Assemblies offered by HASCO Components are available in a variety of RF connectors and custom lengths for production and testing environments.  HSS45A-29P-29P-60 is an RF cable assembly manufactured by HASCO Components.  The RF coax cable used is HSS45A, an armored phase stable against flexure RF cable. HSS45A-29P-29P-60 has 2.92mm Male to 2.92mm Male connectors. This RF Assembly is rated up to 40 GHz. For additional technical information please refer to the datasheet. HASCO Cage Code: 0T8L4

pdf-icon.png« Click Here for the HSS45A-29P-29P-60 Datasheetpdf-icon.png« Click Here for the HSS45A-29P-29P-60 Outline Drawing

FEATURES:

  •  RoHS Compliant
  •  Low Loss, Low VSWR, High Reliability
  •  Phase Stability Vs. Flexure: ± 8° @ 40GHz
    (When wrapped 360°around a 2" diameter mandrel)
  •  Armor:  With good results in Resist compression, Resist torsion, Waterproof and Dustproof
  •  Raw Cable: Cable Insertion Loss: -1.59 dB per Ft @ 40 GHz (Does not include Connectors)
  •  Amplitude Stability: < ± 0.4 through 40 GHz

ELECTRICAL SPECIFICATIONS:

Max Frequency (GHz)

40









Capacitance (pF/ft)

96.44









Velocity Propagation (%)

70









RF Leakage @ 18 GHz (dB)











Time Delay (ns/Ft)

1.4









Impedance (Ohms)

50









Frequency (GHz)

2

6

18

26.5

40

Power CW (Watts)

81

48

21

17

10

Phase Stability vs. Flexure (°)

±0.2

±0.6

±1.86

±2.65

±8.0

MECHANICAL SPECIFICATIONS:

Armor Max Dia. (Inch)

0.256

Min. bend radius (Inch)

1

Recommend Bend Radius (Inch)

1.5

Temperature Range (°C)

-55 to +200

MATERIALS AND FINISHES:

DESCRIPTION

MATERIALS

FINISH OR COLOR

Cable Jacket

FEP

Blue

VA Armor

Stainless Steel +PUR

Blue

Marker

Mil-l-23053

White

Contacts

BeCu

Gold Plated

Insulators

PEEK

None

Connector Bodies

Stainless Steel

Passivated

Connector Nuts

Stainless Steel

Passivated

Gasket

Silicon Rubber

A-A-59588


WARRANTY INFORMATION
*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242

1 Review Hide Reviews Show Reviews

  • 5
    No Better Place to Find Coaxial Cable Assemblies

    Posted by Unknown on 23rd Oct 2013

    There&#039;s no better place than Hasco to find coaxial cable assemblies. These low loss cables always work great. I&#039;ll be back when I need more!

Part No: HSS45A-29P-29P-60
2.92mm Male to 2.92mm Male Test Cable using HSS45A Flexible Armored Cable, Phase Stable vs. Flexure, 60 Inches

HASCO Part Number: HSS45A-29P-29P-60

RF Cable Assemblies offered by HASCO Components are available in a variety of RF connectors and custom lengths for production and testing environments.  HSS45A-29P-29P-60 is an RF cable assembly manufactured by HASCO Components.  The RF coax cable used is HSS45A, an armored phase stable against flexure RF cable. HSS45A-29P-29P-60 has 2.92mm Male to 2.92mm Male connectors. This RF Assembly is rated up to 40 GHz. For additional technical information please refer to the datasheet. HASCO Cage Code: 0T8L4

pdf-icon.png« Click Here for the HSS45A-29P-29P-60 Datasheetpdf-icon.png« Click Here for the HSS45A-29P-29P-60 Outline Drawing

FEATURES:

  •  RoHS Compliant
  •  Low Loss, Low VSWR, High Reliability
  •  Phase Stability Vs. Flexure: ± 8° @ 40GHz
    (When wrapped 360°around a 2" diameter mandrel)
  •  Armor:  With good results in Resist compression, Resist torsion, Waterproof and Dustproof
  •  Raw Cable: Cable Insertion Loss: -1.59 dB per Ft @ 40 GHz (Does not include Connectors)
  •  Amplitude Stability: < ± 0.4 through 40 GHz

ELECTRICAL SPECIFICATIONS:

Max Frequency (GHz)

40









Capacitance (pF/ft)

96.44









Velocity Propagation (%)

70









RF Leakage @ 18 GHz (dB)











Time Delay (ns/Ft)

1.4









Impedance (Ohms)

50









Frequency (GHz)

2

6

18

26.5

40

Power CW (Watts)

81

48

21

17

10

Phase Stability vs. Flexure (°)

±0.2

±0.6

±1.86

±2.65

±8.0

MECHANICAL SPECIFICATIONS:

Armor Max Dia. (Inch)

0.256

Min. bend radius (Inch)

1

Recommend Bend Radius (Inch)

1.5

Temperature Range (°C)

-55 to +200

MATERIALS AND FINISHES:

DESCRIPTION

MATERIALS

FINISH OR COLOR

Cable Jacket

FEP

Blue

VA Armor

Stainless Steel +PUR

Blue

Marker

Mil-l-23053

White

Contacts

BeCu

Gold Plated

Insulators

PEEK

None

Connector Bodies

Stainless Steel

Passivated

Connector Nuts

Stainless Steel

Passivated

Gasket

Silicon Rubber

A-A-59588

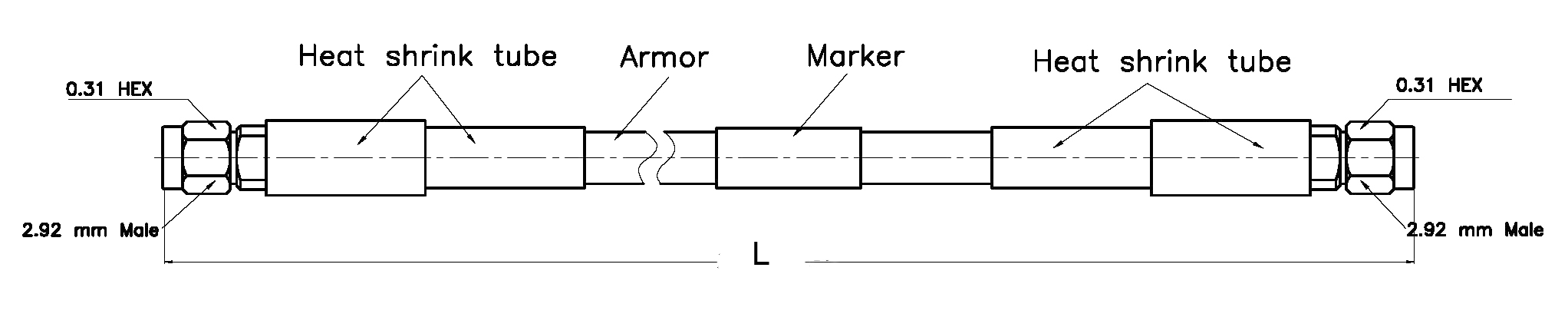

Part No: HSS45A-29P-29P-60
