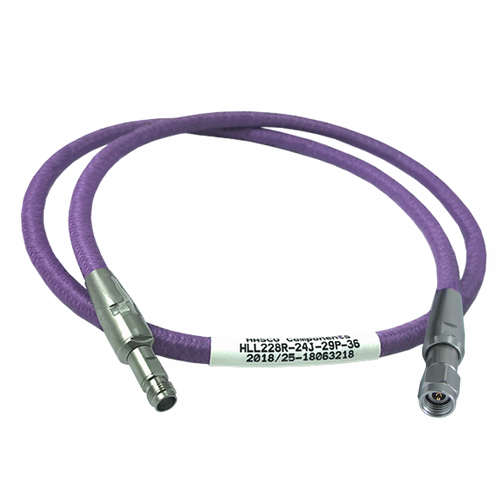

The HASCO HLL228R Series Cable is a low loss LL228 cable that operates from DC to 40 GHz. This cable series is constructed with 2.4mm Female to 2.92mm Male connectors. These cables are internally ruggedized with multi-layer copper spiral and braided armor. They offer excellent phase and amplitude stability vs. flexure. The HLL228R Series cables offer 1.30:1 max VSWR. HASCO Cage Code: 0T8L4
« Datasheet Item | Specification |
| Impedence | 50 Ohms |
| Frequency Range | DC to 40 GHz |
| VSWR | 1.30:1 Max |
| Insertion Loss | ≦ 3.2 dB |
| Insulation Resistance | ≧5000MΩ |
| Dielectric Withstanding Voltage | 1000 V rms |
Mechanical
Item | Specification |
| Bend Radius | 36mm |
| Durability | ≧1000 Cycles |
Environmental
Item | Specification |
| Temperature Range | -55°C to 125°C |
Material
Item | Specification |
|---|---|
| Connector Body & Nut | Passivated Stainless Steel |
| Contact | Gold plated BeCu |
| Connector Dielectric | PEI |
| Cable Contact | SPC |
| Cable Dielectric | LD-PTFE |
| Shield | SPC Braid (inner), LD-PTFE (middle), SPC Braid (outer) |
| Jacket | FEP, Flat Stainless Spring Tube (inner jacket) |
| Strengthened Shield | Tin plated Copper Wire |
| Anti-Twist Layer | PTFE Wrapping Tape |
| Outer Armor | PTFE Braid |
- Cable Length (Inch):
- 36
- Connector 1 Gender:
- Female
- Connector 1 Series:
- 2.4mm
- Connector 2 Gender:
- Male
- Connector 2 Series:
- 2.92mm
- Frequency, Max:
- 40 GHz
- Frequency, Min:
- DC
- Type:
- Ruggedized
- Cable Series:
- HLL228R
- Cable Type:
- Low Loss
- Cable Type:
- Phase Stable
- Cable Type:
- Ruggedized
- Connector 1 Style:
- Straight
- Connector 2 Style:
- Straight
- Cable Type:
- Phase and Amplitude Stable
- Connector 1 Series:
- 2.92mm
- Connector 2 Series:
- 2.4mm
- Flex Type:
- Flexible
- Jacket Material:
- FEP
- Type:
- Standard Test
- Velocity of Propogation (%):
- 76
