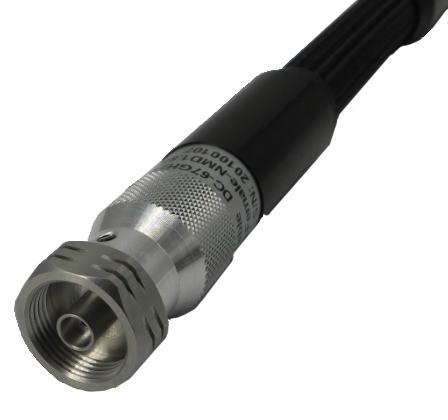

The HASCO HVNA67-185NMD-185P-24 is a flexible, phase stable test cable that operates from DC to 67 GHz. This cable series is constructed with 1.85mm Female NMD to 1.85mm Male connectors. They offer excellent phase stablity vs. flexure. The HVNA67 Series Cable is RoHS Compliant. HASCO Cage Code: 0T8L4
« DatasheetSpecifications
Item |
Specification |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Frequency Range |
DC - 67 GHz |
|||||||||||||||
|
Impedance |
50 Ohms |
|||||||||||||||
|
VSWR |
|
|||||||||||||||
|
Insertion Loss |
IL ≦ 6.2*L (M) + 0.8 dB @ 67 GHz |
|||||||||||||||
|
Velocity of Propogation |
80% |
|||||||||||||||
|
Shielding Effectiveness |
> 90 dB |
|||||||||||||||
|
Power Handling @ 40°C |
115 W @ 1 GHz |
Mechanical Specifications
Item |
Specification |
|---|---|
|
Min Bend Radius |
1.97 inch (50mm) |
Environmental Specifications
Item |
Specification |
|---|---|
|
Operating Temperature Range |
23°C ± 5°C |
|
Storage Temperature Range |
-45°C to 85°C |
Material Specifications
Item |
Specification |
|---|---|
|
Connector Body & Nut |
Passivated Stainless Steel |
|
Dielectric |
PEI |
|
Center Contact |
Gold plated BeCu |
- Cable Length (Inch):
- 24
- Cable Series:
- HVNA67
- Cable Type:
- VNA
- Cable Type:
- Phase Stable
- Cable Type:
- Flexible
- Connector 1 Gender:
- Male
- Connector 1 Series:
- 1.85mm NMD
- Connector 1 Style:
- Straight
- Connector 2 Gender:
- Female
- Connector 2 Series:
- 1.85mm
- Connector 2 Style:
- Straight
- Flex Type:
- Flexible
- Frequency, Max:
- 67 GHz
- Frequency, Min:
- DC
- Velocity of Propogation (%):
- 80
- Connector 2 Gender:
- Male
