RF Cable Applications


With our line of coaxial cables, HASCO has addressed crucial criteria for testing electronic components and systems—phase stability, insertion loss stability, and repeatable measurements—HASCO's test & measurement cables will give you a lower cost per measurement along with more consistent and accurate test results over a diverse set of testing environments.

littlebend-logo-tight.png vna-logo.png ruggedized-logo.png

These extremely flexible, triple shielded cables support a minimum bend radius of 0.20”.



  • Hardware-In-Loop Applications
  • Point-To-Point Interconnect Modules
  • High-Density Routing Solutions
  • 5G & MIMO Testing
  • Small Form Factor


Click to View Littlebend Cables

Click to View Littlebend Selector Guide

Click to View Littlebend Performance Test Documentation

Click to View Littlebend Performance Video

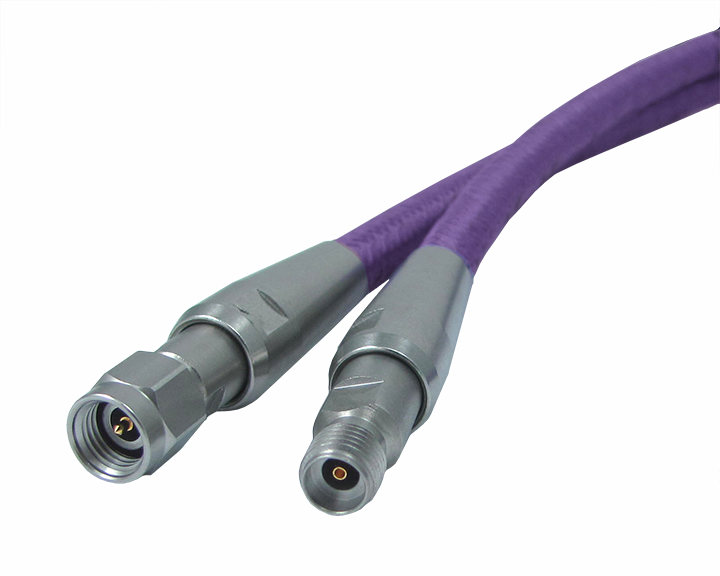

The VNA test and measurement cable often turns out to be particularly critical with regard to the design of a measuring systems.



  • Precise VNA cable assemblies with outstandiing VSWR, minimal insertion loss, phase and amplitude stability (up to 67GHz).
  • NMD connectors
  • Under bending, crushing, and other demanding test circumstances, the cable assemblies produce repeatable, dependable test results.




Click to View VNA Test Cables

HASCO Component Ruggedized Test Cable Assemblies are designed for high-reliability in defense, aerospace and environmental (Hi-Rel) applications.



  • Low Loss & Phase Stable over Temperature
  • Internally Ruggedized Multi-Layer Copper Spiral Braided Armor
  • Excellent Phase and Amplitude Stability vs. Flexure


Ruggedized Cable Image

Click to View Ruggedized Cables



Sample Performance Graphs












Sample Performance Graphs




VNA 50ghz insertion loss graph






Typical Performance Information
