Bias Tee with 2.4mm Female to 2.4mm Male Connectors - 50 GHz

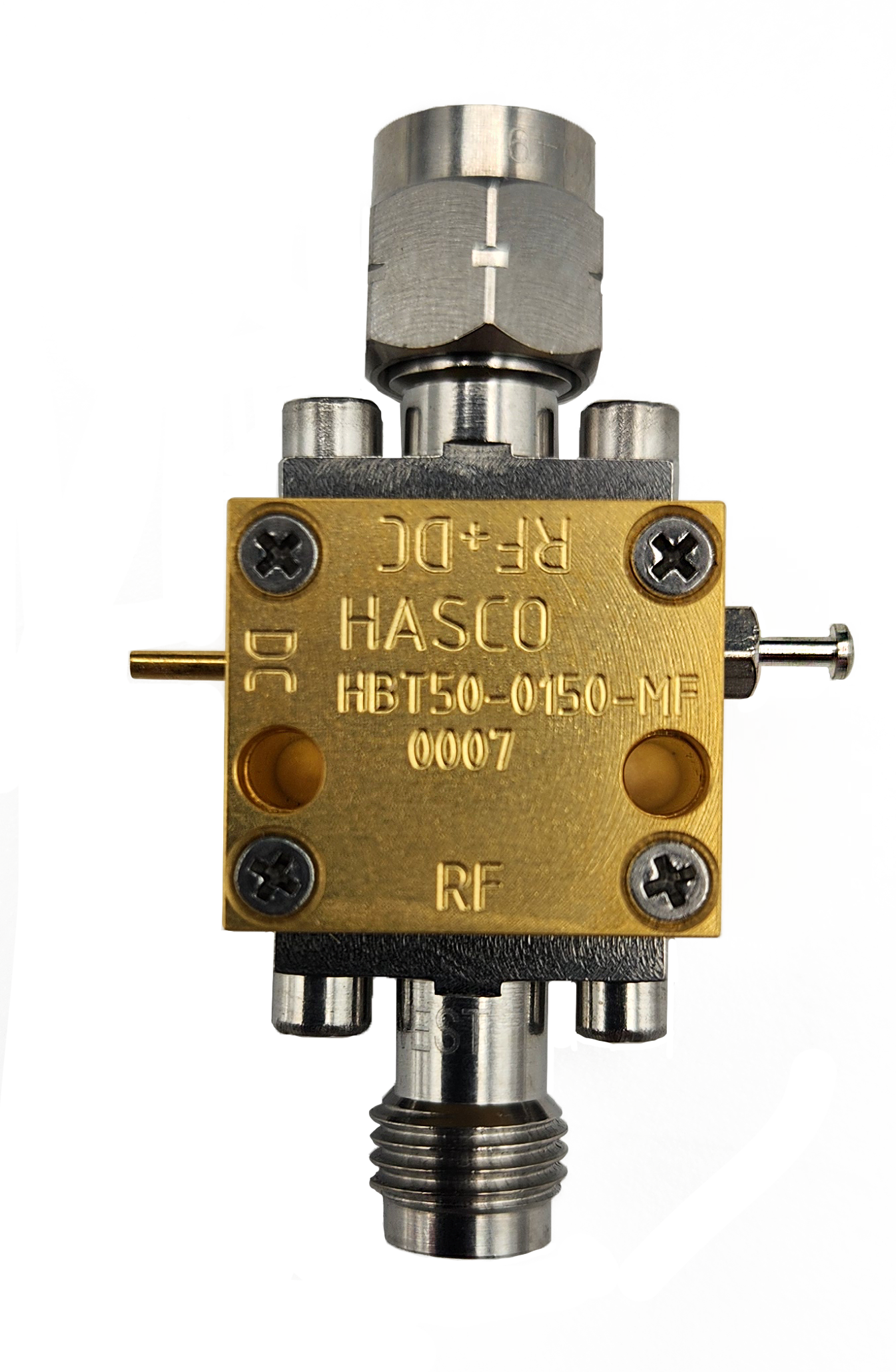

The HASCO HBT50-0150-MF is a 50 GHz Bias Tee with 2.4mm Female to 2.4mm Male connectors. A bias tee is a three-port network used for setting the DC bias point of some electronic components without disturbing other components. The bias tee is a diplexer. The low-frequency port is used to set the bias; the high-frequency port passes the radio-frequency signals but blocks the biasing levels; the combined port connects to the device, which sees both the bias and RF. Properties that are important to a bias tee are RF bandwidth, insertion loss and mismatch at the two RF ports, the maximum DC current, and video bandwidth of the DC port. HASCO Cage Code: 0T8L4
