3.5mm NMD Female to 3.5mm Male Precision VNA Test Cable, Low Loss, Phase Stable vs. Flexure, 36 Inches

$474.31
Part #:
HVNA26-35NMD-35P-36
Brand:
HASCO Components
Weight:
15.00 Ounces
Shipping:
Calculated at checkout
Current Stock:
2

For quantities greater than current stock levels, please contact customer service at 1-888-498-3242

Pricing by Quantity:

QUANTITY

1 to 9

Buy 10 - 24

Buy 25 - 49

Buy 50 or above

PRICE

$474.31

$468.15

$460.08

$446.27

ADD TO WISHLIST

Description

HASCO Part Number: HVNA26-35NMD-35P-36

RF Cable Assemblies offered by HASCO Components are available in a variety of RF connectors and custom lengths for production and testing environments.  HVNA26-35NMD-35P-36 is an RF cable assembly manufactured by HASCO Components.  This is a Lab Grade VNA test cable assembly HVNA26-35NMD-35P-36 has 3.5mm NMD Female to 3.5mm NMD Male connectors. This RF Assembly is rated up to 26.5 GHz. For additional technical information please refer to the datasheet. HASCO Cage Code: 0T8L4

pdf-icon.png« Click Here for the HVNA26-35NMD-35P-36 Datasheet

FEATURES:

  •  RoHs Compliant

  •  Extra rugged and long-life performance

  •  High stability for test lab precision measurements

  • Negligible changes of phase & amplitude after flexing

  •  Phase Stability Vs. Flexure: ± 2° @ 26.5 GHz
    (When wrapped 90°around a 2" radius mandrel)

  •  Insertion Loss: < 2.9 dB  @ 26.5 GHz

  •  Excellent Amplitude Stability: < ± 0.4 dB through 26.5 GHz

ELECTRICAL SPECIFICATIONS:

Max Frequency (GHz)

26.5









Capacitance (pF/ft)

29.4









Velocity Propagation (%)

70









VSWR

 1.35:1









Time Delay (ns/Ft)

1.40









Impedance (Ohms)

50









Frequency (GHz)

2

6

10

18

26.5

Power CW (Watts)

420

215

140

125

75

Phase Stability vs. Flexure (°)

±0.19

±.57

±.94

±1.7

±2.5

MECHANICAL SPECIFICATIONS:

Cable Max Dia. (Inch)

0.6

Min. bend radius (Inch)

1.5

Recommend Bend Radius (Inch)

2

Temperature Range (°C)

-40 to +105

MATERIALS AND FINISHES:

DESCRIPTION

MATERIALS

FINISH OR COLOR

Cable Outer Braid

Polyester-PET

Black

Marker

Mil-l-23053

White

Contacts

BeCu

Gold Plated

Insulators

PEEK

None

Connector Bodies (35P)

Stainless Steel &
Aluminum Alloy

Passivated / Electrophoresis

Connector Bodies (NMD35)

Stainless Steel

Passivated

Connector Nuts (35P)

Stainless Steel &
Aluminum

Passivated

Gasket

Silicon Rubber

A-A-59588




Test #1: NMD 3.5mm Female to 3.5mm Male, 36 inches, DC - 26.5 GHz



Test #2: NMD 3.5mm Female to 3.5mm Male, 36 inches, DC - 26.5 GHz
*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242
Type:
Coax Cable Assemblies
Style:
Test Cable Assemblies
Application:
3.5mm NMD Female to 3.5mm Male Cable Assemblies
Construction:
Low Loss
Connector 1:
3.5mm NMD Female
Connector 2:
3.5mm Male
Length (in.):
36
Impedance (Ohms):
50
PRODUCT DETAILS
HASCO Part Number: HVNA26-35NMD-35P-36

RF Cable Assemblies offered by HASCO Components are available in a variety of RF connectors and custom lengths for production and testing environments.  HVNA26-35NMD-35P-36 is an RF cable assembly manufactured by HASCO Components.  This is a Lab Grade VNA test cable assembly HVNA26-35NMD-35P-36 has 3.5mm NMD Female to 3.5mm NMD Male connectors. This RF Assembly is rated up to 26.5 GHz. For additional technical information please refer to the datasheet. HASCO Cage Code: 0T8L4

pdf-icon.png« Click Here for the HVNA26-35NMD-35P-36 Datasheet

FEATURES:

  •  RoHs Compliant

  •  Extra rugged and long-life performance

  •  High stability for test lab precision measurements

  • Negligible changes of phase & amplitude after flexing

  •  Phase Stability Vs. Flexure: ± 2° @ 26.5 GHz
    (When wrapped 90°around a 2" radius mandrel)

  •  Insertion Loss: < 2.9 dB  @ 26.5 GHz

  •  Excellent Amplitude Stability: < ± 0.4 dB through 26.5 GHz

ELECTRICAL SPECIFICATIONS:

Max Frequency (GHz)

26.5









Capacitance (pF/ft)

29.4









Velocity Propagation (%)

70









VSWR

 1.35:1









Time Delay (ns/Ft)

1.40









Impedance (Ohms)

50









Frequency (GHz)

2

6

10

18

26.5

Power CW (Watts)

420

215

140

125

75

Phase Stability vs. Flexure (°)

±0.19

±.57

±.94

±1.7

±2.5

MECHANICAL SPECIFICATIONS:

Cable Max Dia. (Inch)

0.6

Min. bend radius (Inch)

1.5

Recommend Bend Radius (Inch)

2

Temperature Range (°C)

-40 to +105

MATERIALS AND FINISHES:

DESCRIPTION

MATERIALS

FINISH OR COLOR

Cable Outer Braid

Polyester-PET

Black

Marker

Mil-l-23053

White

Contacts

BeCu

Gold Plated

Insulators

PEEK

None

Connector Bodies (35P)

Stainless Steel &
Aluminum Alloy

Passivated / Electrophoresis

Connector Bodies (NMD35)

Stainless Steel

Passivated

Connector Nuts (35P)

Stainless Steel &
Aluminum

Passivated

Gasket

Silicon Rubber

A-A-59588




Test #1: NMD 3.5mm Female to 3.5mm Male, 36 inches, DC - 26.5 GHz



Test #2: NMD 3.5mm Female to 3.5mm Male, 36 inches, DC - 26.5 GHz
WARRANTY INFORMATION
*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242
Part No: HVNA26-35NMD-35P-36
3.5mm NMD Female to 3.5mm Male Precision VNA Test Cable, Low Loss, Phase Stable vs. Flexure, 36 Inches

HASCO Part Number: HVNA26-35NMD-35P-36

RF Cable Assemblies offered by HASCO Components are available in a variety of RF connectors and custom lengths for production and testing environments.  HVNA26-35NMD-35P-36 is an RF cable assembly manufactured by HASCO Components.  This is a Lab Grade VNA test cable assembly HVNA26-35NMD-35P-36 has 3.5mm NMD Female to 3.5mm NMD Male connectors. This RF Assembly is rated up to 26.5 GHz. For additional technical information please refer to the datasheet. HASCO Cage Code: 0T8L4

pdf-icon.png« Click Here for the HVNA26-35NMD-35P-36 Datasheet

FEATURES:

  •  RoHs Compliant

  •  Extra rugged and long-life performance

  •  High stability for test lab precision measurements

  • Negligible changes of phase & amplitude after flexing

  •  Phase Stability Vs. Flexure: ± 2° @ 26.5 GHz
    (When wrapped 90°around a 2" radius mandrel)

  •  Insertion Loss: < 2.9 dB  @ 26.5 GHz

  •  Excellent Amplitude Stability: < ± 0.4 dB through 26.5 GHz

ELECTRICAL SPECIFICATIONS:

Max Frequency (GHz)

26.5









Capacitance (pF/ft)

29.4









Velocity Propagation (%)

70









VSWR

 1.35:1









Time Delay (ns/Ft)

1.40









Impedance (Ohms)

50









Frequency (GHz)

2

6

10

18

26.5

Power CW (Watts)

420

215

140

125

75

Phase Stability vs. Flexure (°)

±0.19

±.57

±.94

±1.7

±2.5

MECHANICAL SPECIFICATIONS:

Cable Max Dia. (Inch)

0.6

Min. bend radius (Inch)

1.5

Recommend Bend Radius (Inch)

2

Temperature Range (°C)

-40 to +105

MATERIALS AND FINISHES:

DESCRIPTION

MATERIALS

FINISH OR COLOR

Cable Outer Braid

Polyester-PET

Black

Marker

Mil-l-23053

White

Contacts

BeCu

Gold Plated

Insulators

PEEK

None

Connector Bodies (35P)

Stainless Steel &
Aluminum Alloy

Passivated / Electrophoresis

Connector Bodies (NMD35)

Stainless Steel

Passivated

Connector Nuts (35P)

Stainless Steel &
Aluminum

Passivated

Gasket

Silicon Rubber

A-A-59588




Test #1: NMD 3.5mm Female to 3.5mm Male, 36 inches, DC - 26.5 GHz



Test #2: NMD 3.5mm Female to 3.5mm Male, 36 inches, DC - 26.5 GHz

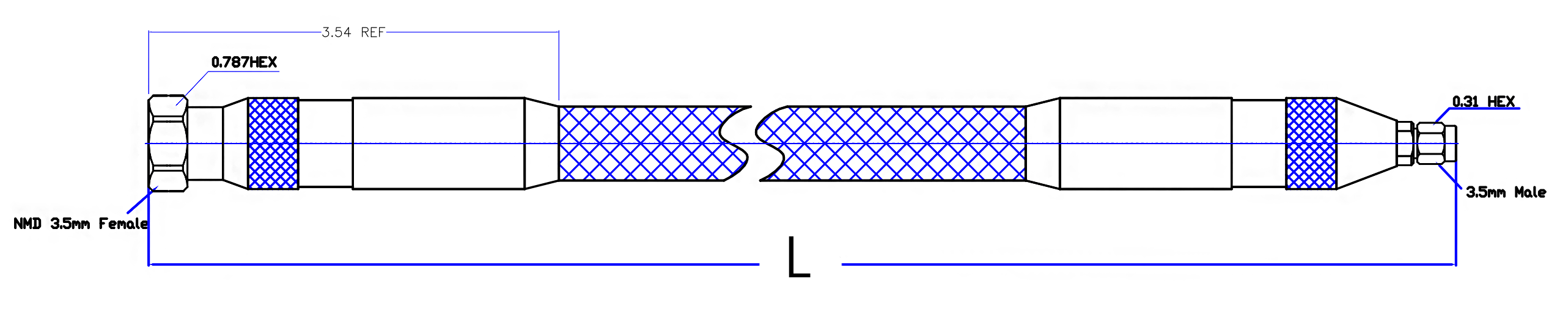

Part No: HVNA26-35NMD-35P-36
LTR
DESCRIPTION
DATE
APPR
THIS DRAWING IS A CONTROLLED DOCUMENT
DRAWN BY:
CHECKED BY:
APPROVED BY:
THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF HASCO COMPONENTS AND SHALL NOT BE REPRODUCED, COPIED NOR USED - IN WHOLE OR IN PART - AS THE BASIS FOR THE MANUFACTURE OR SALE OF OTHER ITEMS WITHOUT THE EXPRESS, RITTEN PERMISSION OF HASCO COMPONENTS.

MATERIALS:

SEE DATA SHEET

CAGE CODE:

HVNA26-35NMD-35P-36

MATERIALS:

SEE DATA SHEET

SCALE:

NS

SIZE:

REV:
