- Home
- Cable Assemblies
- 1.85mm Male to 1.85mm Male Test Cable using HLL125 Low Loss Flexible Cable, Phase Stable vs. Flexure, 30 Inches
1.85mm Male to 1.85mm Male Test Cable using HLL125 Low Loss Flexible Cable, Phase Stable vs. Flexure, 30 Inches
1.85mm Male to 1.85mm Male Test Cable using HLL125 Low Loss Flexible Cable, Phase Stable vs. Flexure, 30 Inches
Sale Price:
$280.00
Part #:
HLL125-VP-VP-30
Brand:
Weight:
4.00 Ounces
Part Number:
HLL125-VP-VP-30
Shipping:
Calculated at checkout
Current Stock:
15
*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242
)
Product Description
HASCO Part Number: HLL125-VP-VP-30
RF Cable Assemblies offered by HASCO Components are available in a variety of RF connectors and custom lengths for production and testing environments. HLL125-VP-VP-30 is an RF test cable manufactured by HASCO Components. The RF cable used is HLL125, it is designed to be Phase Stable against Flexure. HLL125-VP-VP-30 has 1.85mm Male to 1.85mm Male connectors. This RF Assembly is rated up to 67 GHz. For additional technical information please refer to the datasheet. Insulated Wire Cage Code: 59528
NOTE: The HLL125 Cable is manufactured with both a black and yellow FEP jacket.

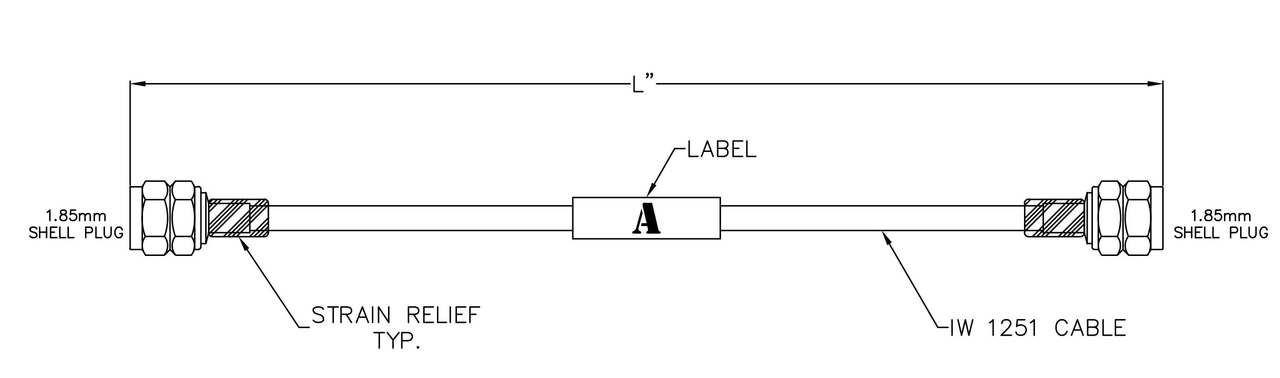

« Click Here for the HLL125-VP-VP-30 Datasheet « Click Here for the HLL125-VP-VP-30 Outline DrawingFEATURES:
- RoHs Compliant
- Low Loss, Low VSWR, High Reliability
- Temperature Range: -65°C ~ +200°C
- Phase Stability Vs. Flexure: ± 15° @ 67GHz
(When wrapped 360°around a 2" diameter mandrel) - Cable Insertion Loss: - 2.10 dB per ft @ 65 GHz + Connector Loss: 0.4 dB per Connector
- Amplitude Stability: < ±0.2 dB through 67 GHz
ELECTRICAL SPECIFICATIONS:
|
Max Frequency (GHz) |
67 |
|
|
|
|
|
Capacitance (pF/ft) |
27 |
|
|
|
|
|
Velocity Propagation (%) |
75 |
|
|
|
|
|
RF Leakage @ 18 GHz (dB) |
<100 |
|
|
|
|
|
Time Delay (ns/Ft) |
1.35 |
|
|
|
|
|
Impedance (Ohms) |
50 |
|
|
|
|
|
Frequency (GHz) |
6 |
18 |
26.5 |
40 |
67 |
|
Power CW (Watts) |
93 |
39 |
30 |
20 |
13 |
|
Phase Stability vs. Flexure (°) |
±1.50 |
±4.00 |
±6.00 |
±10.00 |
±15.00 |
MECHANICAL SPECIFICATIONS:
|
Cable Dia. (Inch) |
0.110 |
|
Min. bend radius (Inch) |
0.5 |
|
Recommend Bend Radius (Inch) |
4.00" |
|
Temperature Range (°C) |
-65 to +200 |
MATERIALS AND FINISHES:
|
DESCRIPTION |
MATERIALS |
FINISH OR COLOR |
|
Cable Jacket |
FEP |
Yellow or Black |
|
Marker |
Mil-l-23053 |
White |
|
Contacts |
BeCu |
Gold Plated |
|
Insulators |
XX |
None |
|
Connector Bodies |
Brass |
Gold Plated |
|
Connector Nuts |
Stainless Steel |
Passivated |
|
Gasket |
Silicon Rubber |
A-A-59588 |
Test Data: 1.85mm Male to 1.85mm Male, 24 inches, DC - 67 GHz
- Parameter Value
- HASCO Cage Code 0T8L4
Related Products
-
Part #:HLL125-VP-VP-04$258.00 -
Part #:HLL125-VP-VP-09$260.00 -
Part #:HLL125-VP-VP-03$258.00 -
Part #:HLL125-VP-VP-06$260.00 -
Part #:HLL125-VP-VP-12$265.00
