Description

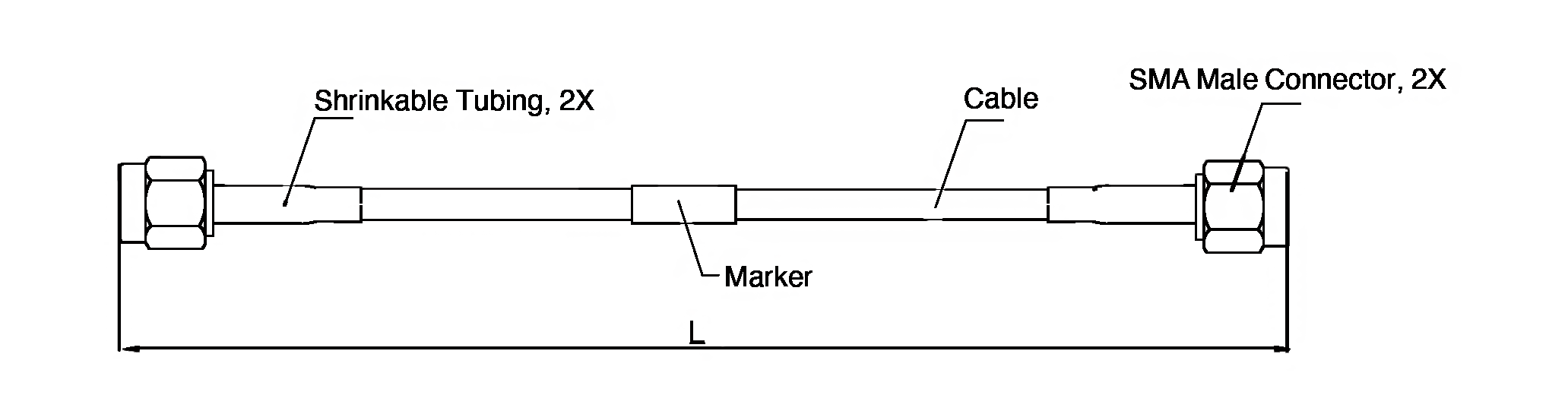

« Click Here for the HA141C-S1-S1-29J Datasheet « Click Here for the HA141C-S1-S1-29J Outline DrawingFEATURES:
- RoHs Compliant
- Hand Formable to Final Shape
- Anti-torque nut on SMA Straight Connector
- 100% VSWR test to 18 GHz
- 100% Hi-pot and continuity tests
- Cable Insertion Loss at +25°C: 0.4 dB + 0.065 x length (per inch)
ELECTRICAL SPECIFICATIONS:
| Max Frequency (GHz) | 20 |
|
|
|
|
| Capacitance (pF/ft) | 29 |
|
|
|
|
| Velocity Propagation (%) | 70 |
|
|
|
|
| RF Leakage @ 18 GHz (dB) | >100 |
|
|
|
|
| Impedance (Ohms) | 50 |
|
|
|
|
| Power CW (Watts) | Call for More Info |
|
|
|
|
MECHANICAL SPECIFICATIONS:
| Outer Conductor Diameter (Inch) | .141 |
| Min. bend radius (Inch) | .375 |
| Recommend Bend Radius (Inch) | .5 |
| Temperature Range (°C) | 200°C |
MATERIALS AND FINISHES
| DESCRIPTION | MATERIALS | FINISH OR COLOR |
| Cable Jacket | FEP | Blue |
| Marker | Mil-l-23053 | Black |
| Contacts | BeCu | Gold Plated |
| Insulators | PTFE | None |
| Connector Bodies | Brass | Ni/Au |
| Connector Nuts | Stainless Steel | Passivated |
| Gasket | Silicon Rubber | A-A-59588 |
- Cable Diameter:
- .141
- Cable Length (Inch):
- 29
- Cable Series:
- RG402
- Connector 1 Gender:
- Male
- Connector 1 Series:
- SMA
- Connector 1 Style:
- Straight
- Connector 2 Gender:
- Male
- Connector 2 Series:
- SMA
- Connector 2 Style:
- Straight
- Flex Type:
- Conformable
- Frequency, Max:
- 26.5 GHz
- Frequency, Min:
- DC
- Jacket Material:
- FEP
