SMA Male to SMA Male .141 Tin-Braid Conformable Cable with Blue Jacket using RG402 Coax, 24 Inches

$22.30
Part #:
HA141C-S1-S1-24J
Brand:
HASCO Components
Weight:
1.50 Ounces
Shipping:
Calculated at checkout
Current Stock:
16

For quantities greater than current stock levels, please contact customer service at 1-888-498-3242

Pricing by Quantity:

QUANTITY

1 to 9

10 to 24

25 to 49

50 or above

PRICE

$22.30

$21.65

$21.00

$20.35

ADD TO WISHLIST

Description

HASCO Part Number: HA141C-S1-S1-24J

RF Cable Assemblies offered by HASCO Components are available in a variety of RF connectors and custom lengths for production and testing environments.  HA141C-S1-S1-24J is an RF cable assembly manufactured by HASCO Components.  The cable assembly uses an RG402 Tin-Braid Conformable coax type. HA141C-S1-S1-24J has SMA Male to SMA Male connectors. This RF Assembly is available in with different connectors and operating frequency ranges. For additional technical information please refer to the datasheet.

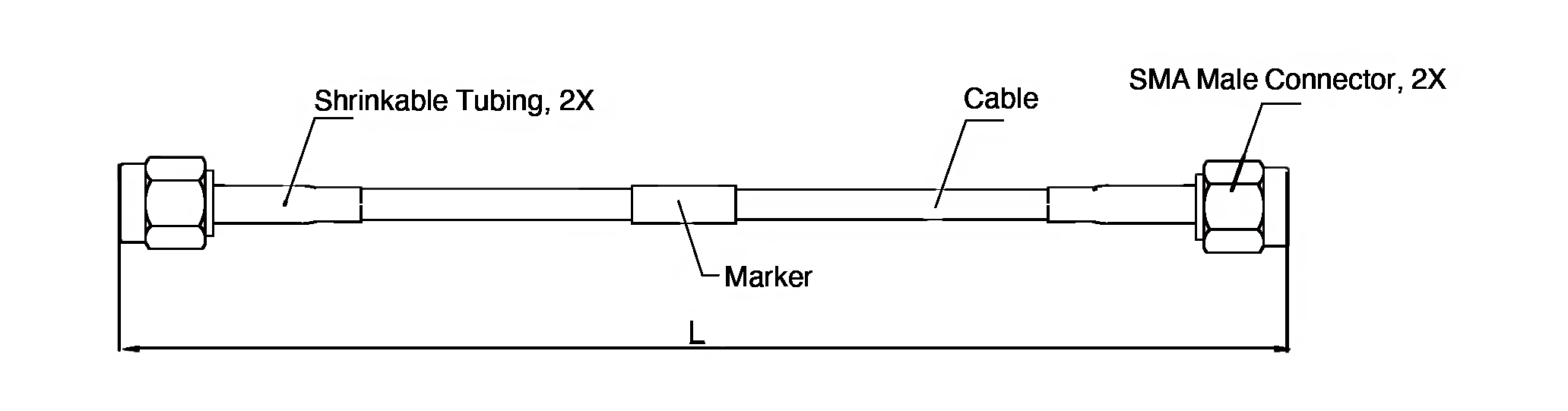

pdf-icon.png« Click Here for the HA141C-S1-S1-24J Datasheet pdf-icon.png« Click Here for the HA141C-S1-S1-24J Outline Drawing

FEATURES:

  •  RoHs Compliant

  •  Hand Formable to Final Shape

  •  Anti-torque nut on SMA Straight Connector

  •  100% VSWR test to 18 GHz

  •  100% Hi-pot and continuity tests

  •  Cable Insertion Loss at +25°C: 0.4 dB + 0.065 x length (per inch)

ELECTRICAL SPECIFICATIONS:

Max Frequency (GHz)

20









Capacitance (pF/ft)

29









Velocity Propagation (%)

70









RF Leakage @ 18 GHz (dB)

 >100









Impedance (Ohms)

50









Power CW (Watts)

 Call for
More Info









MECHANICAL SPECIFICATIONS:

 Outer Conductor Diameter (Inch)  .141

Min. bend radius (Inch)

.375

Recommend Bend Radius (Inch)

.5

Temperature Range (°C)

200°C

MATERIALS AND FINISHES:

DESCRIPTION

MATERIALS

FINISH OR COLOR

Cable Jacket

FEP

Blue

Marker

Mil-l-23053

Black

Contacts

BeCu

Gold Plated

Insulators

PTFE

None

Connector Bodies

Brass

Ni/Au

Connector Nuts

Stainless Steel

Passivated

Gasket

Silicon Rubber

A-A-59588




*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242
Type:
Coax Cable Assemblies
Style:
Conformable Cable Assemblies
Application:
SMA Male to SMA Male Cable Assemblies
Construction:
Standard
Connector 1:
SMA Male
Connector 2:
SMA Male
Length (in.):
24
Impedance (Ohms):
50
PRODUCT DETAILS
HASCO Part Number: HA141C-S1-S1-24J

RF Cable Assemblies offered by HASCO Components are available in a variety of RF connectors and custom lengths for production and testing environments.  HA141C-S1-S1-24J is an RF cable assembly manufactured by HASCO Components.  The cable assembly uses an RG402 Tin-Braid Conformable coax type. HA141C-S1-S1-24J has SMA Male to SMA Male connectors. This RF Assembly is available in with different connectors and operating frequency ranges. For additional technical information please refer to the datasheet.

pdf-icon.png« Click Here for the HA141C-S1-S1-24J Datasheet pdf-icon.png« Click Here for the HA141C-S1-S1-24J Outline Drawing

FEATURES:

  •  RoHs Compliant

  •  Hand Formable to Final Shape

  •  Anti-torque nut on SMA Straight Connector

  •  100% VSWR test to 18 GHz

  •  100% Hi-pot and continuity tests

  •  Cable Insertion Loss at +25°C: 0.4 dB + 0.065 x length (per inch)

ELECTRICAL SPECIFICATIONS:

Max Frequency (GHz)

20









Capacitance (pF/ft)

29









Velocity Propagation (%)

70









RF Leakage @ 18 GHz (dB)

 >100









Impedance (Ohms)

50









Power CW (Watts)

 Call for
More Info









MECHANICAL SPECIFICATIONS:

 Outer Conductor Diameter (Inch)  .141

Min. bend radius (Inch)

.375

Recommend Bend Radius (Inch)

.5

Temperature Range (°C)

200°C

MATERIALS AND FINISHES:

DESCRIPTION

MATERIALS

FINISH OR COLOR

Cable Jacket

FEP

Blue

Marker

Mil-l-23053

Black

Contacts

BeCu

Gold Plated

Insulators

PTFE

None

Connector Bodies

Brass

Ni/Au

Connector Nuts

Stainless Steel

Passivated

Gasket

Silicon Rubber

A-A-59588
