Description
Features
• Low SWaP Design: Aerodynamic profiles reduce drag, extending UAS flight times while maintaining structural integrity.
• Broadband Performance: Omnidirectional coverage supports real-time data transmission, with patterns optimized for small ground planes.
• Durability and Compliance: Rugged radomes protect against environmental stressors; NDAA-compliant materials ensure eligibility for U.S. government contracts.
The HASCO HAD-1325-O1M1-02 is an SMA Female Blade Antenna that operates within the L-Band.
HASCO offers a versatile family of blade antennas, each engineered for aerodynamic efficiency, durability, and seamless integration. All models feature SMA-F connectors, VSWR ≤2.0:1, azimuth omnidirectional coverage, elevation patterns similar to a quarter-wave monopole on small ground planes, 1-3 dBi peak gain, and 20W CW power handling. Weights range from 0.43 oz (15.3 g) to 1.25 oz (35.1 g), minimizing impact on UAS flight dynamics. HASCO Components Cage Code: 0T8L4
« Click Here to View Datasheet
Electrical Specifications
Item |
Specification |
|---|---|
|
Frequency Range |
1.35 - 2.5 GHz |
|
VSWR |
2.0:1 |
|
Impedance |
50 Ω |
|
Azimuth |
Omnidirectional |
|
Elevation |
Same as quarter wave monopole on small ground |
|
Gain |
1 - 3 dBi Peak |
|
Power |
20 Watts, CW |

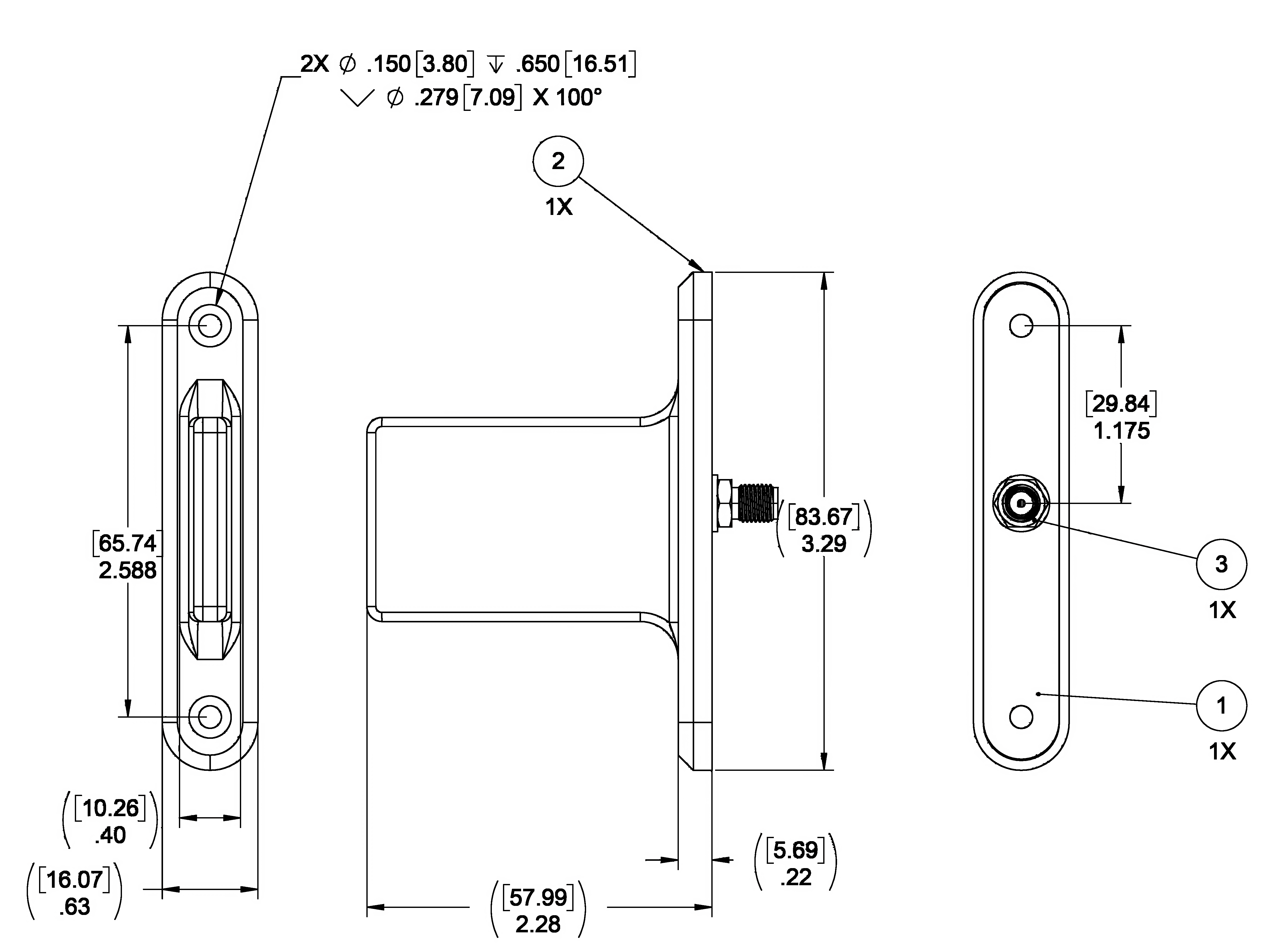

Mechanical Specifications
Item |
Specification |
|---|---|
|
Height |
2.588 inch (63.74mm) |
|
Base Width |
2.28 inch (57.99mm) |
|
Weight |
0.685 oz (19.4 g) |
|
Mount |
2-Hole |
- Connector 1 Mount:
- SMA
- Frequency, Max:
- 2.5 GHz
- Frequency, Min:
- 1.35 GHz
- Gender:
- Female
- Type:
- Blade Antenna
