SMA Female Dual Band Blade Antenna, S-Band (2.20 - 2.50 GHz), C-Band (4.40 - 4.49 GHz), 4-Hole

SMA Female Dual Band Blade Antenna, S-Band (2.20 - 2.50 GHz), C-Band (4.40 - 4.49 GHz), 4-Hole

Features
• Low SWaP Design: Aerodynamic profiles reduce drag, extending UAS flight times while maintaining structural integrity.
• Broadband Performance: Omnidirectional coverage supports real-time data transmission, with patterns optimized for small ground planes.
• Durability and Compliance: Rugged radomes protect against environmental stressors; NDAA-compliant materials ensure eligibility for U.S. government contracts.

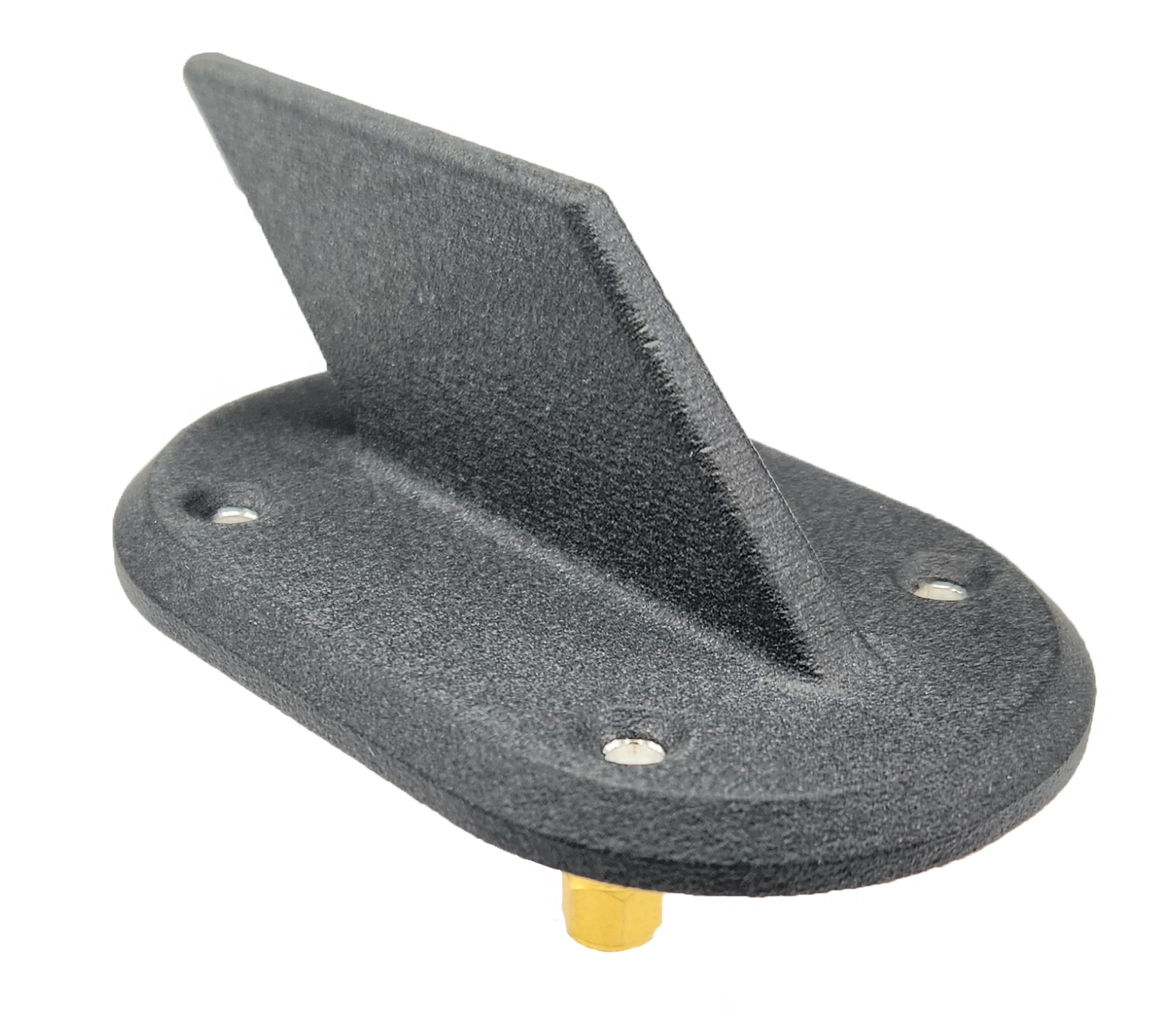

The HASCO HAD-2250-H1B-02 is an SMA Female Blade Antenna that operates within the S-Band (2.20 - 2.50 GHz) and C-Band (4.40 - 4.49 GHz).

HASCO offers a versatile family of blade antennas, each engineered for aerodynamic efficiency, durability, and seamless integration. All models feature SMA-F connectors, VSWR ≤2.0:1, azimuth omnidirectional coverage, elevation patterns similar to a quarter-wave monopole on small ground planes, 1-3 dBi peak gain, and 20W CW power handling. Weights range from 0.43 oz (15.3 g) to 1.25 oz (35.1 g), minimizing impact on UAS flight dynamics. HASCO Components Cage Code: 0T8L4

« Click Here to View Datasheet

 Electrical Specifications

 Mechanical Specifications
