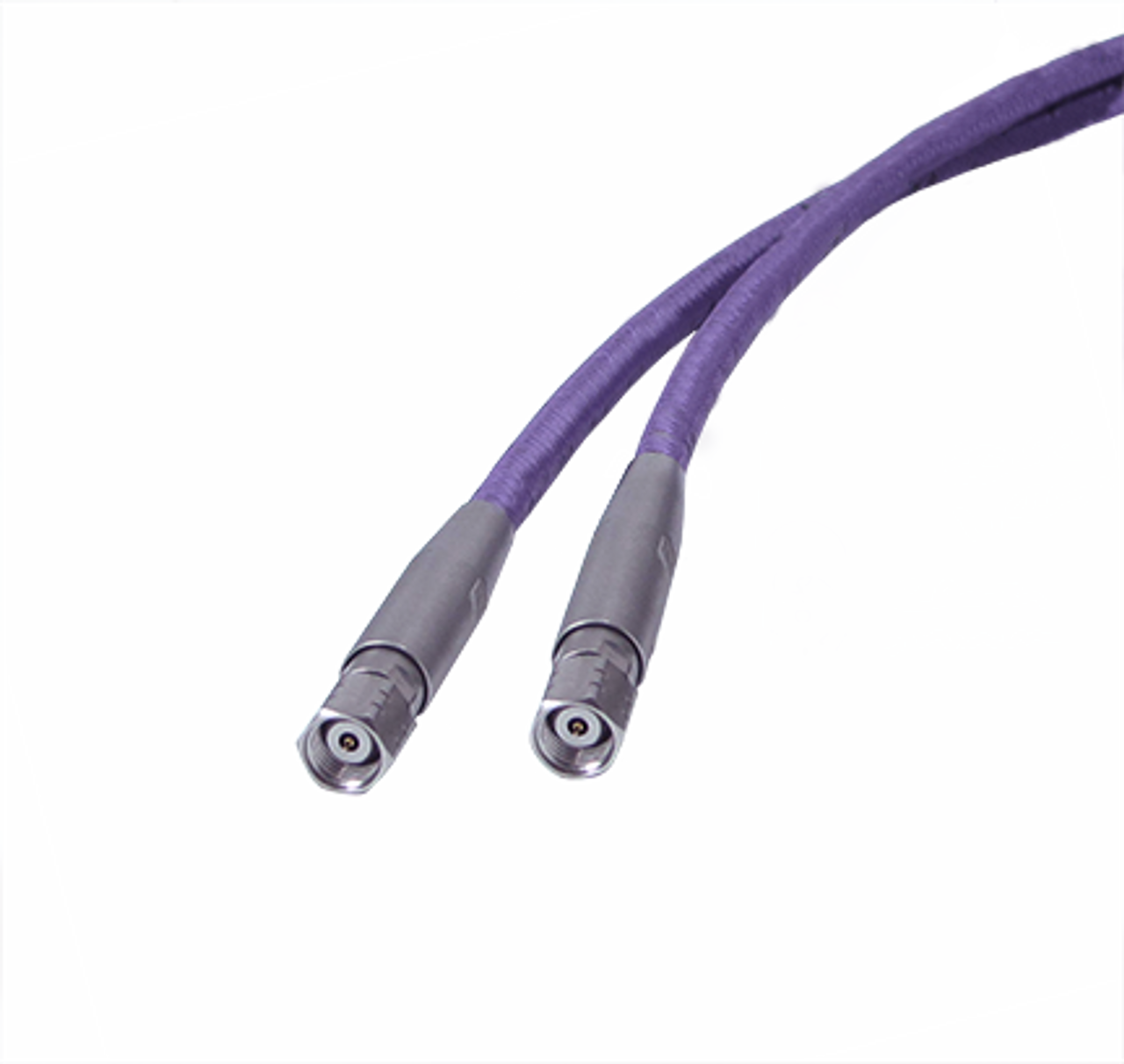

P/N: HLL185R-VP-VP-36

Brand: HASCO Components

HLL185R Series Cable is a low loss LL185 cable that operates from DC to 67 GHz. This cable series is constructed with 1.85mm Male to 1.85mm Male connectors. These cables are internally ruggedized with multi-layer copper spiral and braided armor. They offer excellent phase and amplitude stability vs. flexure.

P/N: HMQ3833

Brand: Advanced Microwave

The Advanced Microwave HMQ3833 covers 18 to 32 GHz I/Q mixer with IF frequency range of DC to 3 GHz. The mixer can be used as a single side band upconverter or image reject mixer or up or downconversion. The LO is driven with +15 to +19 dBm typ and as an up or downconverter features conversion loss of 9 dB typ, L to I isolation of 26 dB typ, L to R isolation of 32 dB typ. Image Rejection is typically 32 dB while amplitude balance is typically ±0.9 max. dBm across the band.

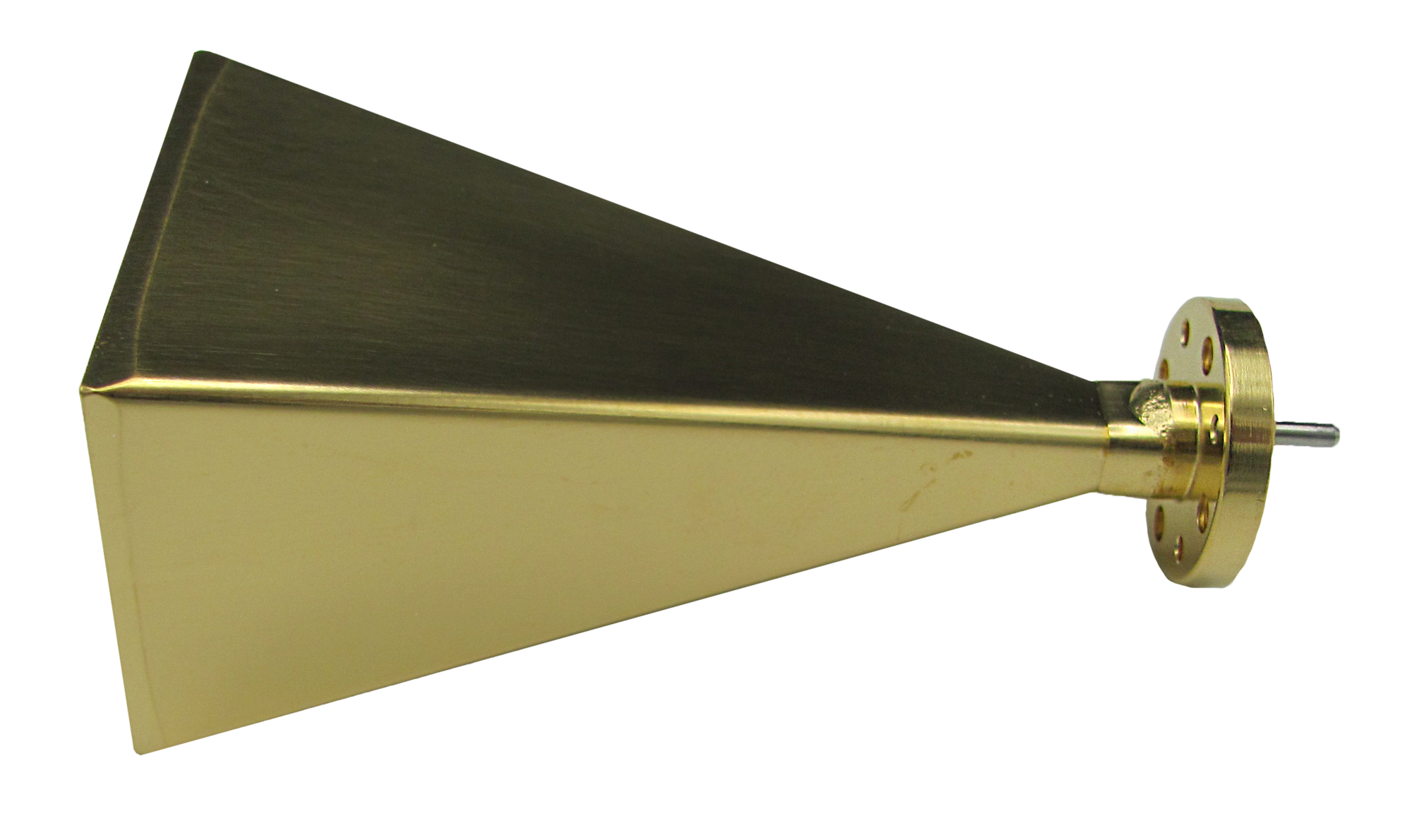

P/N: HWSGH15-23-ER

Brand: HASCO Components

HWSGH15-23-ER is a V-band WR-15 waveguide standard rectangular gain horn antenna that operates from 50 GHz to 75 GHz. The antenna offers 23 dBi typical gain, precisely electroformed over a mandrel and gold plated. These horns have a pyramidal shape with a rectangular aperture. The standard gain horn antenna supports linear polarized waveforms. The input of this antenna is a WR-15 waveguide with UG-385/U flange.

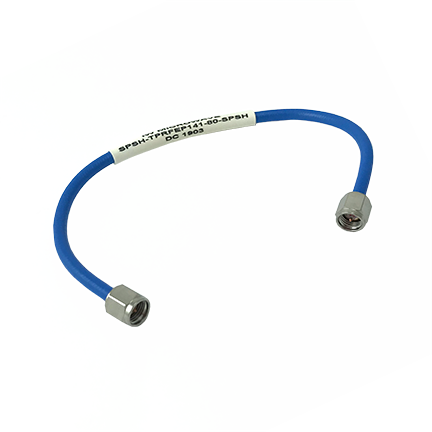

P/N: SPSH-TPRFEP141-240-SPSH

Brand: IW Microwave

IW Microwave RF141 Re-Flex Cable Assembly with FEP Jacket and SMA Male (Plug) Shell Style Connector. Frequency Range DC to 26.5 GHz.

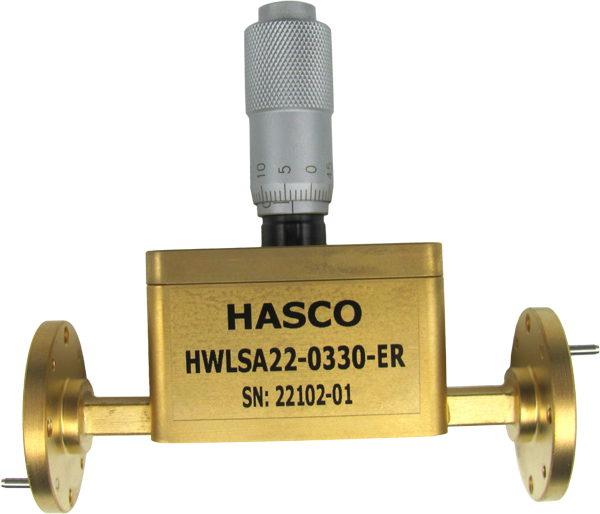

P/N: HWLSA22-0330-ER

Brand: HASCO Components

HWLSA22-0330-ER is a Q Band, Level Set Waveguide Attenuator and covers a frequency range of 33 to 50 GHz. This attenuator is equipped with a micrometer dial which makes the dB value mechanically adjustable. This attenuator is ideal for a waveguide system where broadband level setting is required. It is a passive, reciprocal network where either side can serve as input.
