Description

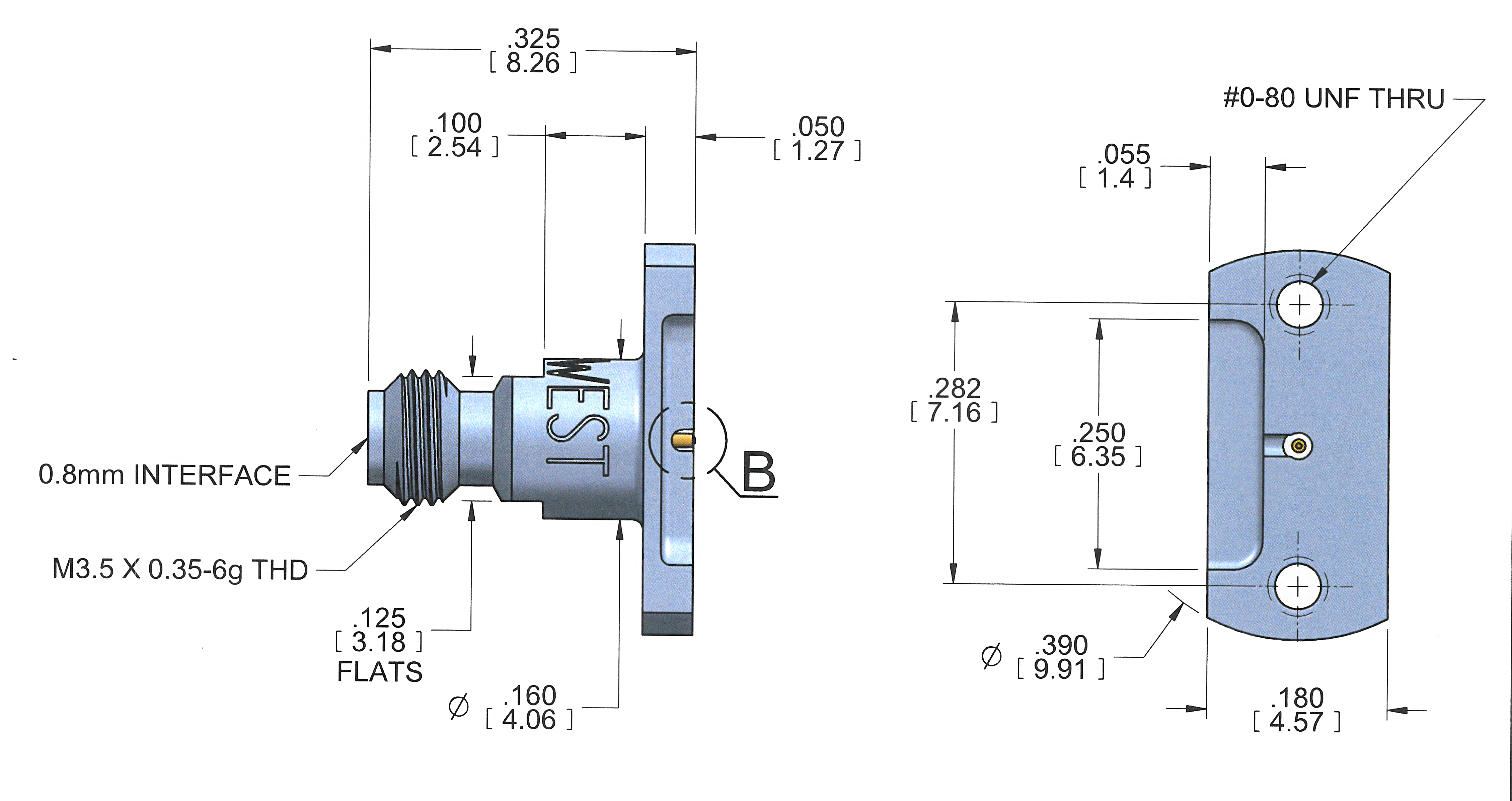

26359-001J is a Vertical Launch Connector manufactured by Southwest Microwave. The 26359-001J is a 0.8mm Female coax connector with transition to PCB. Vertical Launch Connectors help reduce losses caused by the transition from PCB to Coax Connector and maintain a Low VSWR and RF Leakage. For microstrip or grounded coplanar waveguide (GCPW) designs, Southwest Microwave vertical launch connectors provide optimal signal integrity, are reusable and can be installed without soldering. Suitable for various board materials and thicknesses, the vertical launch connectors reduce footprint without sacrificing performance, resulting in design and installation convenience. Southwest Microwave Cage Code: 66049
« Click Here for the 26359-001J Datasheet
Mechanical Specifications
Item |
Specification |
|---|---|
|
Housing Material |
Stainless Steel, CRESS Alloy UNS-30300 Per ASTM A582 Passivated Per ASTM A967 |
|
Contact |
Beryllium Copper (BeCu) UNS-C17300 PER ASTM B196/197 GOLD PLATE Per ASTM B488 |
|
Contact Capture |
KEL-F (PCTFE) Per ASTM D 1430 |
- Connector 1 Mount:
- Vertical Launch
- Frequency, Min:
- DC
- Gender:
- Female
- PCB Thickness:
- Up to .100
- Pin Diameter:
- .0055
- Series:
- 0.8mm
- Type:
- Vertical Launch
PRODUCT DETAILS
26359-001J is a Vertical Launch Connector manufactured by Southwest Microwave. The 26359-001J is a 0.8mm Female coax connector with transition to PCB. Vertical Launch Connectors help reduce losses caused by the transition from PCB to Coax Connector and maintain a Low VSWR and RF Leakage. For microstrip or grounded coplanar waveguide (GCPW) designs, Southwest Microwave vertical launch connectors provide optimal signal integrity, are reusable and can be installed without soldering. Suitable for various board materials and thicknesses, the vertical launch connectors reduce footprint without sacrificing performance, resulting in design and installation convenience. Southwest Microwave Cage Code: 66049
« Click Here for the 26359-001J Datasheet
Mechanical Specifications
Item |
Specification |
|---|---|
|
Housing Material |
Stainless Steel, CRESS Alloy UNS-30300 Per ASTM A582 Passivated Per ASTM A967 |
|
Contact |
Beryllium Copper (BeCu) UNS-C17300 PER ASTM B196/197 GOLD PLATE Per ASTM B488 |
|
Contact Capture |
KEL-F (PCTFE) Per ASTM D 1430 |
