HULL190-S1-S1-60 SMA Male Ultra Low Loss, HULL190 Cable

SMA Male to SMA Male Ultra Low Loss Test Cable using HULL190 Flexible Cable, Phase Stable vs. Temp and Flexure, 60 Inches

$341.06

Part #:

HULL190-S1-S1-60

Brand:

HASCO Components

Weight:

2.50 Ounces

Shipping:

Calculated at checkout

Current Stock:

For quantities greater than current stock levels, please contact customer service at 1-888-498-3242

Pricing by Quantity:

QUANTITY

1 to 9

Buy 10 - 24

Buy 25 - 49

Buy 50 - 99

Buy 100 - 249

Buy 250 - 499

Buy 500 - 999

Buy 1000 - 2499

Buy 2500 or above

PRICE

$341.06

$330.83

$320.90

$311.28

$301.94

$292.88

$284.09

$275.57

$267.30

PRODUCT DETAILS
Warranty Information

Description

HASCO Part Number: HULL190-S1-S1-60

RF Cable Assemblies offered by HASCO Components are available in a variety of RF connectors and custom lengths for production and testing environments. HULL190-S1-S1-60 is an RF test cable manufactured by HASCO Components. The RF cable used is HULL190, it is designed to be like the GORE ultra low loss. HULL190-S1-S1-60 has SMA Male to SMA Male connectors. This RF Assembly is rated up to 26.5 GHz. For additional technical information please refer to the datasheet. HASCO Cage Code: 0T8L4

« Click Here for the HULL190-S1-S1-60 Datasheet

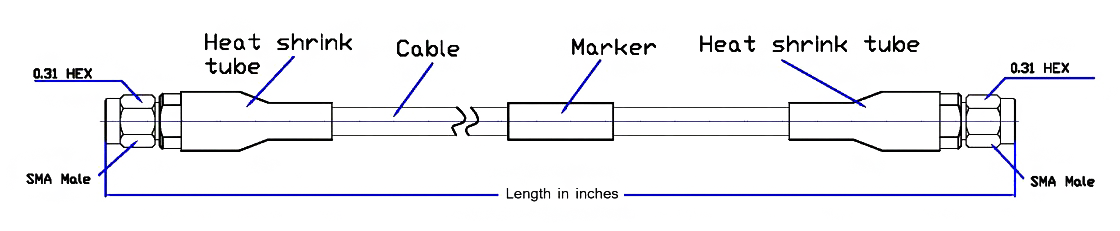

« Click Here for the HULL190-S1-S1-60 Outline Drawing

FEATURES:

RoHS Compliant
Low Loss, Low VSWR, High Reliability
Phase Stable over Temp: 550ppm Max @ -45°C ~ +85°C
Phase Stability Vs. Flexure: ± 4.5° @ 26.5GHz
(When wrapped 360° around a 1.89" radius mandrel)
Available with Stainless Steel Armor
Cable Insertion Loss: -.39 dB per Ft @ 26.5 GHz
Amplitude Stability: < ± 0.2 through 26.5 GHz

ELECTRICAL SPECIFICATIONS:

Max Frequency (GHz)	26.5
Capacitance (pF/ft)	23.7
Velocity Propagation (%)	85
RF Leakage @ 18 GHz (dB)
Time Delay (ns/Ft)	1.18
Impedance (Ohms)	50
Frequency (GHz)	2	6	12	18	26.5
Power CW (Watts)	650	390	260	220	190
Phase Stability vs. Flexure (°)	±0.33	±1	±2	±3	±4.5

MECHANICAL SPECIFICATIONS:

Cable Max Dia. (Inch)	0.189
Min. bend radius (Inch)	1.0
Recommend Bend Radius (Inch)	1.89
Temperature Range (°C)	-65 to +200

MATERIALS AND FINISHES:

DESCRIPTION	MATERIALS	FINISH OR COLOR
Cable Jacket	PFA	Grey
Marker	Mil-l-23053	White
Contacts	BeCu	Gold Plated
Insulators	PTFE	None
Connector Bodies	Stainless Steel	Passivated
Connector Nuts	Stainless Steel	Passivated
Gasket	Silicon Rubber	A-A-59588

Test #1: SMA Male to SMA Male, 24 inches, DC - 26.5 GHz

Test #2: SMA Male to SMA Male, 36 inches, DC - 26.5 GHz

*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242

Cable Diameter:: .189
Cable Length (Inch):: 60
Cable Series:: HULL190
Cable Type:: Low Loss
Cable Type:: Phase Stable
Connector 1 Gender:: Male
Connector 1 Series:: SMA
Connector 1 Style:: Straight
Connector 2 Gender:: Male
Connector 2 Series:: SMA
Connector 2 Style:: Straight
Flex Type:: Flexible
Frequency, Max:: 26.5 GHz
Frequency, Min:: DC
Jacket Material:: PFA
Type:: Standard Test
Velocity of Propogation (%):: 85
