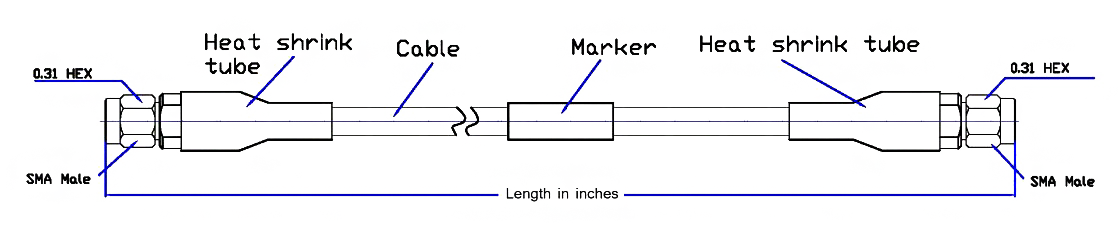

« Click Here for the HULL190-S1-S1-18 Datasheet « Click Here for the HULL190-S1-S1-18 Outline DrawingFEATURES:
- RoHS Compliant
- Low Loss, Low VSWR, High Reliability
- Phase Stable over Temp: 550ppm Max @ -45°C ~ +85°C
- Phase Stability Vs. Flexure: ± 4.5° @ 26.5GHz
(When wrapped 360° around a 1.89" radius mandrel) - Available with Stainless Steel Armor
- Cable Insertion Loss: -.39 dB per Ft @ 26.5 GHz
- Amplitude Stability: < ± 0.2 through 26.5 GHz
ELECTRICAL SPECIFICATIONS:
| Max Frequency (GHz) | 26.5 |
|
|
|
|
| Capacitance (pF/ft) | 23.7 |
|
|
|
|
| Velocity Propagation (%) | 85 |
|
|
|
|
| RF Leakage @ 18 GHz (dB) |
|
|
|
| |
| Time Delay (ns/Ft) | 1.18 |
|
|
|
|
| Impedance (Ohms) | 50 |
|
|
|
|
| Frequency (GHz) | 2 | 6 | 12 | 18 | 26.5 |
| Power CW (Watts) | 650 | 390 | 260 | 220 | 190 |
| Phase Stability vs. Flexure (°) | ±0.33 | ±1 | ±2 | ±3 | ±4.5 |
MECHANICAL SPECIFICATIONS:
| Cable Max Dia. (Inch) | 0.189 |
| Min. bend radius (Inch) | 1.0 |
| Recommend Bend Radius (Inch) | 1.89 |
| Temperature Range (°C) | -65 to +200 |
MATERIALS AND FINISHES:
| DESCRIPTION | MATERIALS | FINISH OR COLOR |
| Cable Jacket | PFA | Grey |
| Marker | Mil-l-23053 | White |
| Contacts | BeCu | Gold Plated |
| Insulators | PTFE | None |
| Connector Bodies | Stainless Steel | Passivated |
| Connector Nuts | Stainless Steel | Passivated |
| Gasket | Silicon Rubber | A-A-59588 |
Test #1: SMA Male to SMA Male, 24 inches, DC - 26.5 GHz
Test #2: SMA Male to SMA Male, 36 inches, DC - 26.5 GHz
- Type:
- Coax Cable Assemblies
- Style:
- Test Cable Assemblies
- Application:
- SMA Male to SMA Male Cable Assemblies
- Construction:
- Low Loss
- Connector 1:
- SMA Male
- Connector 2:
- SMA Male
- Length (in.):
- 18
- Impedance (Ohms):
- 50
- Max Frequency (GHz):
- 26.5
- Series:
- HULL190
PRODUCT DETAILS
« Click Here for the HULL190-S1-S1-18 Datasheet « Click Here for the HULL190-S1-S1-18 Outline DrawingFEATURES:
- RoHS Compliant
- Low Loss, Low VSWR, High Reliability
- Phase Stable over Temp: 550ppm Max @ -45°C ~ +85°C
- Phase Stability Vs. Flexure: ± 4.5° @ 26.5GHz
(When wrapped 360° around a 1.89" radius mandrel) - Available with Stainless Steel Armor
- Cable Insertion Loss: -.39 dB per Ft @ 26.5 GHz
- Amplitude Stability: < ± 0.2 through 26.5 GHz
ELECTRICAL SPECIFICATIONS:
| Max Frequency (GHz) | 26.5 |
|
|
|
|
| Capacitance (pF/ft) | 23.7 |
|
|
|
|
| Velocity Propagation (%) | 85 |
|
|
|
|
| RF Leakage @ 18 GHz (dB) |
|
|
|
| |
| Time Delay (ns/Ft) | 1.18 |
|
|
|
|
| Impedance (Ohms) | 50 |
|
|
|
|
| Frequency (GHz) | 2 | 6 | 12 | 18 | 26.5 |
| Power CW (Watts) | 650 | 390 | 260 | 220 | 190 |
| Phase Stability vs. Flexure (°) | ±0.33 | ±1 | ±2 | ±3 | ±4.5 |
MECHANICAL SPECIFICATIONS:
| Cable Max Dia. (Inch) | 0.189 |
| Min. bend radius (Inch) | 1.0 |
| Recommend Bend Radius (Inch) | 1.89 |
| Temperature Range (°C) | -65 to +200 |
MATERIALS AND FINISHES:
| DESCRIPTION | MATERIALS | FINISH OR COLOR |
| Cable Jacket | PFA | Grey |
| Marker | Mil-l-23053 | White |
| Contacts | BeCu | Gold Plated |
| Insulators | PTFE | None |
| Connector Bodies | Stainless Steel | Passivated |
| Connector Nuts | Stainless Steel | Passivated |
| Gasket | Silicon Rubber | A-A-59588 |
Test #1: SMA Male to SMA Male, 24 inches, DC - 26.5 GHz
Test #2: SMA Male to SMA Male, 36 inches, DC - 26.5 GHz
