4 dB - Fixed Attenuator SMA Male To SMA Female Up To 18 GHz Rated To 2 Watts With Passivated Stainless Steel Body

$32.50
Part #:
HA18A-04
Brand:
HASCO Components
Weight:
0.50 Ounces
Shipping:
Calculated at checkout
Current Stock:
31

For quantities greater than current stock levels, please contact customer service at 1-888-498-3242

Pricing by Quantity:

QUANTITY

1 to 9

Buy 10 - 24

Buy 25 - 49

Buy 50 - 99

Buy 100 or above

PRICE

$32.50

$31.55

$30.60

$29.70

$28.80

ADD TO WISHLIST

Description

HASCO Part Number: HA18A-04

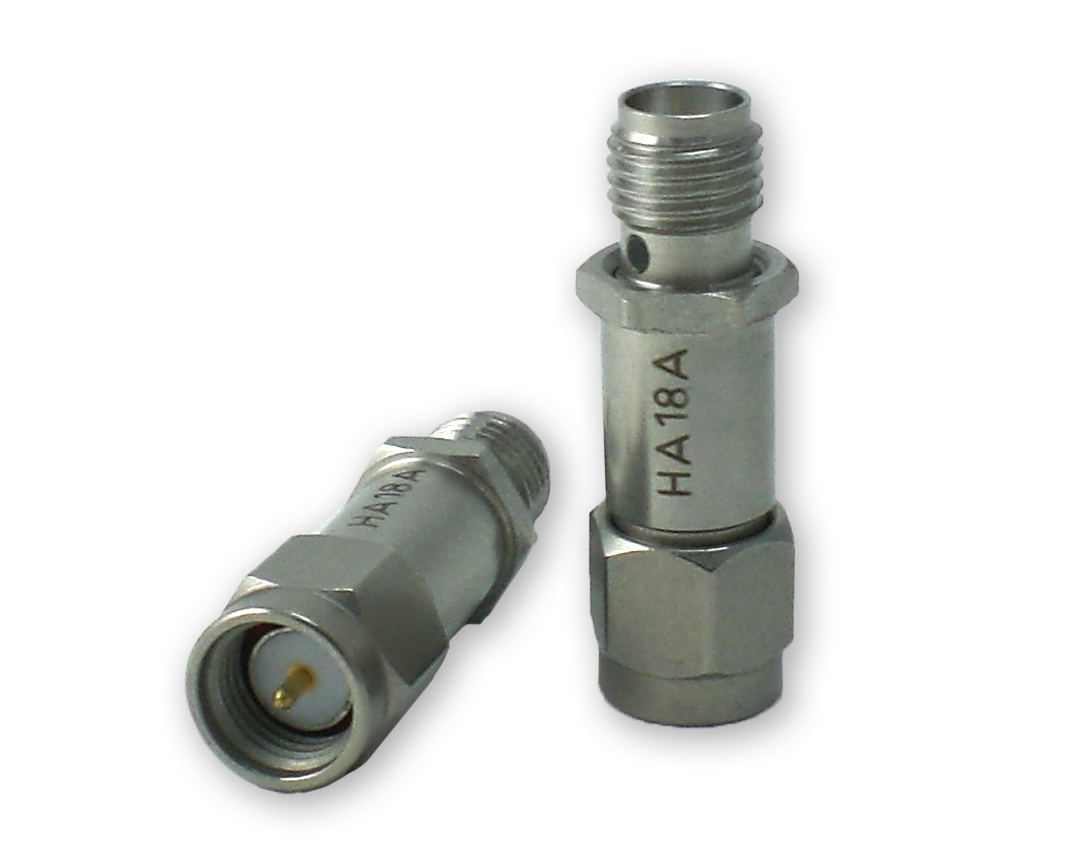

HA18A-04 is a SMA Male to Female Attenuator manufactured by HASCO. This type of Attenuator is bidirectional. Attenuators like this HA18A-04 are used to reduce or step down the power level of a signal while maintaining the waveforms integrity. The operating frequency for this model is DC to 18 GHz and is rated for 2 Watts. The attenuation value is 4 dB. This attenuator is housed in a Passivated Stainless Steel Body. HASCO Cage Code: 0T8L4


pdf-icon.png« Click Here for the HA18A-04 Outline Drawing


 Electrical Specifications



Parameter

Specification

 Frequency

DC -  18 GHz

 Impedence

50 Ohms

 Attenuation (dB)

 DC - 18 GHz
0.5 - 9: ± 0.30 dB
10 - 20: ± 0.50 dB
 25 & 30: ± 0.75 dB



 VSWR

 DC - 4 GHz: 1.15:1
4-8 GHz: 1.20:1
8-12.4 GHz: 1.25:1
12.4-18 GHz: 1.35:
1


 Power Rating

AVE:   2 WATTS
5 µSec Pulse, 0.05% Duty Cycle

PEAK:  250 WATTS

 Operating Temperature

Minimum: -55°C Maximum: +85°C































Mechanical Specifications

Item

Specification

 Body, Housing & Hex Nut

 Passivated Stainless Steel

 Center Contact

 Gold Plated Beryllium Copper

 Insulator

 PTFE, Virgin Electrical Grade

*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242
Attenuation Accuracy:
±0.30dB
Connector 1 Gender:
Male
Connector 1 Series:
SMA
Connector 2 Gender:
Female
Connector 2 Series:
SMA
dB Value:
4
Frequency, Max:
18 GHz
Frequency, Min:
DC
Power Rating:
2 Watts
Product Type:
Fixed
PRODUCT DETAILS
HASCO Part Number: HA18A-04

HA18A-04 is a SMA Male to Female Attenuator manufactured by HASCO. This type of Attenuator is bidirectional. Attenuators like this HA18A-04 are used to reduce or step down the power level of a signal while maintaining the waveforms integrity. The operating frequency for this model is DC to 18 GHz and is rated for 2 Watts. The attenuation value is 4 dB. This attenuator is housed in a Passivated Stainless Steel Body. HASCO Cage Code: 0T8L4


pdf-icon.png« Click Here for the HA18A-04 Outline Drawing


 Electrical Specifications



Parameter

Specification

 Frequency

DC -  18 GHz

 Impedence

50 Ohms

 Attenuation (dB)

 DC - 18 GHz
0.5 - 9: ± 0.30 dB
10 - 20: ± 0.50 dB
 25 & 30: ± 0.75 dB



 VSWR

 DC - 4 GHz: 1.15:1
4-8 GHz: 1.20:1
8-12.4 GHz: 1.25:1
12.4-18 GHz: 1.35:
1


 Power Rating

AVE:   2 WATTS
5 µSec Pulse, 0.05% Duty Cycle

PEAK:  250 WATTS

 Operating Temperature

Minimum: -55°C Maximum: +85°C































Mechanical Specifications

Item

Specification

 Body, Housing & Hex Nut

 Passivated Stainless Steel

 Center Contact

 Gold Plated Beryllium Copper

 Insulator

 PTFE, Virgin Electrical Grade

WARRANTY INFORMATION
*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242
Part No: HA18A-04
4 dB - Fixed Attenuator SMA Male To SMA Female Up To 18 GHz Rated To 2 Watts With Passivated Stainless Steel Body

HASCO Part Number: HA18A-04

HA18A-04 is a SMA Male to Female Attenuator manufactured by HASCO. This type of Attenuator is bidirectional. Attenuators like this HA18A-04 are used to reduce or step down the power level of a signal while maintaining the waveforms integrity. The operating frequency for this model is DC to 18 GHz and is rated for 2 Watts. The attenuation value is 4 dB. This attenuator is housed in a Passivated Stainless Steel Body. HASCO Cage Code: 0T8L4


pdf-icon.png« Click Here for the HA18A-04 Outline Drawing


 Electrical Specifications



Parameter

Specification

 Frequency

DC -  18 GHz

 Impedence

50 Ohms

 Attenuation (dB)

 DC - 18 GHz
0.5 - 9: ± 0.30 dB
10 - 20: ± 0.50 dB
 25 & 30: ± 0.75 dB



 VSWR

 DC - 4 GHz: 1.15:1
4-8 GHz: 1.20:1
8-12.4 GHz: 1.25:1
12.4-18 GHz: 1.35:
1


 Power Rating

AVE:   2 WATTS
5 µSec Pulse, 0.05% Duty Cycle

PEAK:  250 WATTS

 Operating Temperature

Minimum: -55°C Maximum: +85°C































Mechanical Specifications

Item

Specification

 Body, Housing & Hex Nut

 Passivated Stainless Steel

 Center Contact

 Gold Plated Beryllium Copper

 Insulator

 PTFE, Virgin Electrical Grade
