2.92mm Male to 2.92mm Male Test Cable using HLL150A Low Loss Flexible Armored Cable, Phase Stable vs. Flexure, 30 Inches

$218.15
Part #:
HLL150A-29P-29P-30
Brand:
HASCO Components
Weight:
5.00 Ounces
Shipping:
Calculated at checkout
Current Stock:
4

For quantities greater than current stock levels, please contact customer service at 1-888-498-3242

Pricing by Quantity:

QUANTITY

1 to 9

10 to 24

25 to 49

50 or above

PRICE

$218.15

$211.60

$205.25

$199.10

ADD TO WISHLIST

Description

HASCO Part Number: HLL150A-29P-29P-30

RF Cable Assemblies offered by HASCO Components are available in a variety of RF connectors and custom lengths for production and testing environments.  HLL150A-29P-29P-30 is an RF cable assembly manufactured by HASCO Components.  The RF coax cable used is HLL150A, an armored phase stable against flexure RF cable. HLL150A-29P-29P-30 has 2.92mm Male to 2.92mm Male connectors. This RF Assembly is rated up to 40 GHz. For additional technical information please refer to the datasheet. HASCO Cage Code: 0T8L4

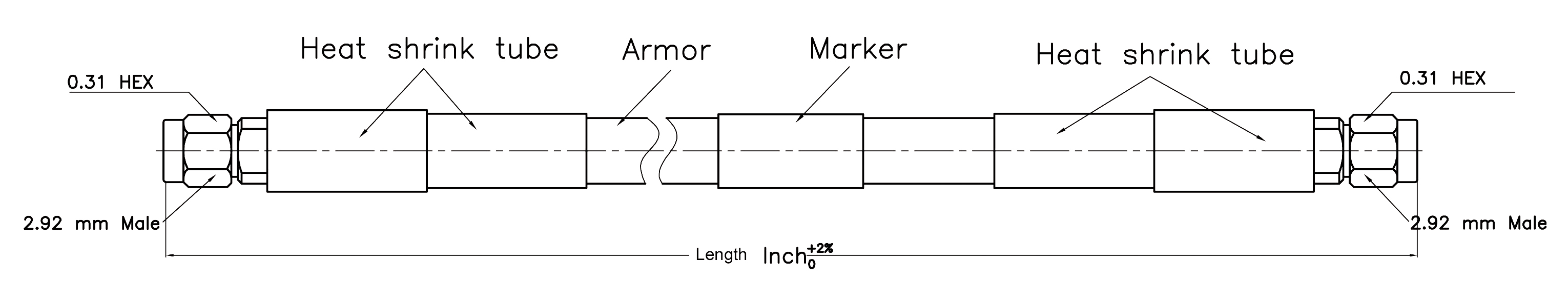

pdf-icon.png« Click Here for the HLL150A-29P-29P-30 Datasheetpdf-icon.png« Click Here for the HLL150A-29P-29P-30 Outline Drawing

FEATURES:

    •  RoHS Compliant
    •  Low Loss, Low VSWR, High Reliability
    •  Phase Stable over Temp: 550ppm Max @ -40°C ~ +85°C
    •  Phase Stability Vs. Flexure: ± 8° @ 40GHz (When wrapped 360° around a 2" diameter mandrel)
    •  Armor: with good results in Resist compression, Resist torsion, Waterproof and Dustproof
    •  Cable Insertion Loss: -.75 dB per Ft @ 40 GHz

ELECTRICAL SPECIFICATIONS:

Max Frequency (GHz)

40









Capacitance (pF/ft)

24









Velocity Propagation (%)

83









RF Leakage @ 18 GHz (dB)

<-100









Time Delay (ns/Ft)

1.2









Impedance (Ohms)

50









Frequency (GHz)

2

6

18

26.5

40

Power CW (Watts)

420

215

125

100

75

Phase Stability vs. Flexure (°)

±0.4

±1.2

±3.6

±5.3

±8.0

MECHANICAL SPECIFICATIONS:

Armor Max Dia. (Inch)

0.322

Min. bend radius (Inch)

1.5

Recommend Bend Radius (Inch)

2.5

Temperature Range (°C)

-55 to +85

MATERIALS AND FINISHES:

DESCRIPTION

MATERIALS

FINISH OR COLOR

Cable Jacket

FEP

Blue

Armor

Stainless Steel + PUR

Blue

Marker

Mil-l-23053

White

Contacts

BeCu

Gold Plated

Insulators

PEEK

None

Connector Bodies

Stainless Steel

Passivated

Connector Nuts

Stainless Steel

Passivated

Gasket

Silicon Rubber

A-A-59588




Test #1: 2.92mm Male to 2.92mm Male, 24 inches, DC - 40 GHz



Test #2: 2.92mm to 2.92mm Male, 24 inches, DC - 40 GHz
*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242
