TNC Female Connector 4 Hole .500" Square Flange - Accepts .018 Pin Dia., tested to 18 GHz

$50.99
Part #:
412-30SF
Brand:
Southwest Microwave
Weight:
1.50 Ounces
Shipping:
Calculated at checkout

Out of stock - Call for availability

For quantities greater than current stock levels, please contact customer service at 1-888-498-3242

Pricing by Quantity:

QUANTITY

1 to 9

10 to 24

25 to 49

50 or above

PRICE

$50.99

$45.38

$40.78

$36.48

Description

Southwest Microwave Part Number: 412-30SF

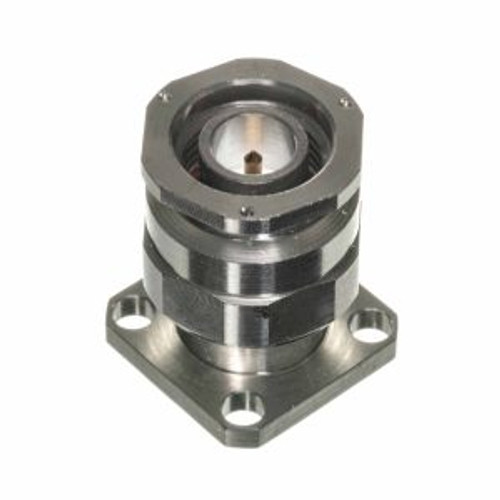

412-30SF is a 4 Hole Square Flange TNC Female connector manufactured by Southwest Microwave. This TNC Female accepts a 0.018" Pin Diameter and will operate up to 18 GHz. The flange size is .500" All Southwest Microwave TNC connectors are made of Stainless Steel with either Gold Plated Brass or Beryllium Copper center contacts. This connector conforms to MIL-STD-348A and MIL-PRF-39012. Southwest Microwave Cage Code: 66049

Click Here to View Outline  « Click Here for the 412-30SF Outline Drawing

 Specifications

Item

Specification

 Frequency Range

 DC to 18.0 GHz

 VSWR

 DC to 18.0 GHz:   1.15:1 MAX

 RF Leakage

 < -100 dB

 Temperature Range

 -55°C to 165°C



 Mechanical Specifications

Item

Specification

Housing

 Steel, CRES Alloy UNS S30300 Per ASTM A582, Passivated Per ASTM A967

Contact

 BeCu, UNS C17300 Per ASTM B196, Gold Plated Per MIL-G-45204 or ASTM B488

Dielectric

 Virgin PTFE Fluorocarbon Per ASTM D1710

Center Contact Capture

 High Temperature Ultem 1000 Per ASTM D5205

Connector Interface

 Per MIL-STD-348, Figs. 313-1 and 313-2

*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242
Type:
Coax Connectors
Style:
Panel Mount Connectors
Application:
TNC Connectors
Connector:
TNC Female
Mount Type:
4-Hole Flange
Termination Type:
.018 Pin
Max Frequency (GHz):
18
Feature:
None
Orientation:
Straight
PRODUCT DETAILS
Southwest Microwave Part Number: 412-30SF

412-30SF is a 4 Hole Square Flange TNC Female connector manufactured by Southwest Microwave. This TNC Female accepts a 0.018" Pin Diameter and will operate up to 18 GHz. The flange size is .500" All Southwest Microwave TNC connectors are made of Stainless Steel with either Gold Plated Brass or Beryllium Copper center contacts. This connector conforms to MIL-STD-348A and MIL-PRF-39012. Southwest Microwave Cage Code: 66049

Click Here to View Outline  « Click Here for the 412-30SF Outline Drawing

 Specifications

Item

Specification

 Frequency Range

 DC to 18.0 GHz

 VSWR

 DC to 18.0 GHz:   1.15:1 MAX

 RF Leakage

 < -100 dB

 Temperature Range

 -55°C to 165°C



 Mechanical Specifications

Item

Specification

Housing

 Steel, CRES Alloy UNS S30300 Per ASTM A582, Passivated Per ASTM A967

Contact

 BeCu, UNS C17300 Per ASTM B196, Gold Plated Per MIL-G-45204 or ASTM B488

Dielectric

 Virgin PTFE Fluorocarbon Per ASTM D1710

Center Contact Capture

 High Temperature Ultem 1000 Per ASTM D5205

Connector Interface

 Per MIL-STD-348, Figs. 313-1 and 313-2

WARRANTY INFORMATION
*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242

1 Review Hide Reviews Show Reviews

  • 5
    Awesome Price For Coax Cable Connectors

    Posted by Jake on 17th Sep 2013

    This site has some truly awesome prices for coax cable connectors. I am truly stunned at what kind of deals they are offering. These cables are definitely high quality. They work incredibly well. I will most definitely be a return shopper to this site.

Part No: 412-30SF
TNC Female Connector 4 Hole .500" Square Flange - Accepts .018 Pin Dia., tested to 18 GHz

Southwest Microwave Part Number: 412-30SF

412-30SF is a 4 Hole Square Flange TNC Female connector manufactured by Southwest Microwave. This TNC Female accepts a 0.018" Pin Diameter and will operate up to 18 GHz. The flange size is .500" All Southwest Microwave TNC connectors are made of Stainless Steel with either Gold Plated Brass or Beryllium Copper center contacts. This connector conforms to MIL-STD-348A and MIL-PRF-39012. Southwest Microwave Cage Code: 66049

Click Here to View Outline  « Click Here for the 412-30SF Outline Drawing

 Specifications

Item

Specification

 Frequency Range

 DC to 18.0 GHz

 VSWR

 DC to 18.0 GHz:   1.15:1 MAX

 RF Leakage

 < -100 dB

 Temperature Range

 -55°C to 165°C



 Mechanical Specifications

Item

Specification

Housing

 Steel, CRES Alloy UNS S30300 Per ASTM A582, Passivated Per ASTM A967

Contact

 BeCu, UNS C17300 Per ASTM B196, Gold Plated Per MIL-G-45204 or ASTM B488

Dielectric

 Virgin PTFE Fluorocarbon Per ASTM D1710

Center Contact Capture

 High Temperature Ultem 1000 Per ASTM D5205

Connector Interface

 Per MIL-STD-348, Figs. 313-1 and 313-2
