HSB42 Series Cables

We are happy to feature the HSB42 Series Cables by HASCO. These cable assemblies are ultra flexible, good phase amplitude stable against flexure and offer super amplitude stability through 26.5 GHz. The HSB42 cable series are RoHs Compliant.

HASCO offers the HSB42 in variety of RF connectors and custom lengths for production and testing environments.

Construction & Performance

1. Center Conductor
    Silver plated Copper

2. Dielectric
    PTFE

3. Inner Braid
    Silver plated Copper Strip

4. Interlayer   Aluminum Polyester

5. Outer Braid
    Silver plated Copper

6. Jacket
    PVC, Blue

Featured Products

HSB42 with SMA to SMA Connectors

- 26.5 GHz Max Frequency

- 0.195" Cable Diameter

- Lengths from 12' to 60'

- Capacitance: 29.4 pF/ft

- RF Leakage:

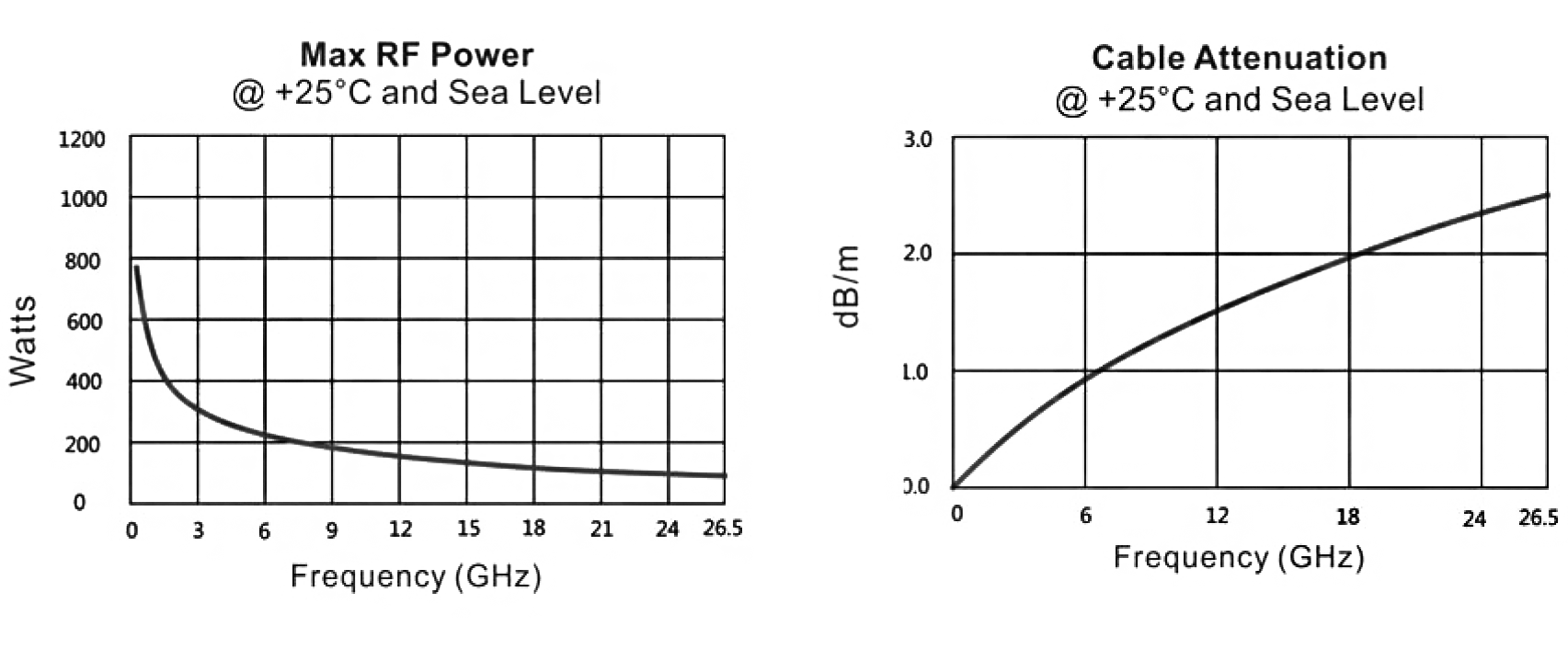

- Power: 75 Watts @ 26.5 GHz

- Phase Stability vs. Flexure:

  ± 2.95°@ 26.5 GHz

- Insertion Loss:

  -.79 dB per ft @ 26.5 GHz

- Amplitude Stability:

  ≤ ±0.1 dB through 26.5 GHz
