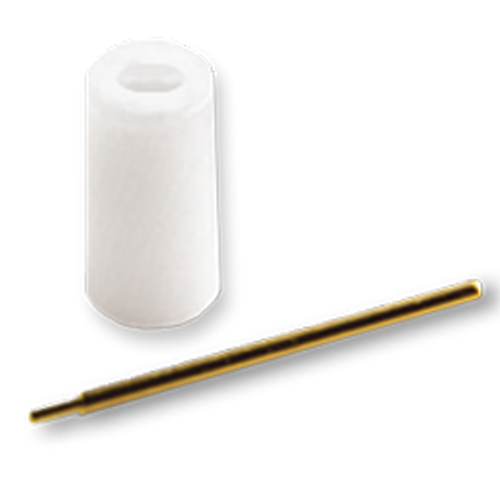

290-12G - Launch Pin-Tab and Dielectric to Microstrip

$5.94
Part #:
290-12G
Brand:
Southwest Microwave
Weight:
0.20 Ounces
Shipping:
Calculated at checkout

Out of stock

For quantities greater than current stock levels, please contact customer service at 1-888-498-3242

Pricing by Quantity:

QUANTITY

1 to 9

10 to 24

25 to 49

50 or above

PRICE

$5.94

$5.35

$4.47

$4.14

Description

Southwest Microwave Part Number: 290-12G


290-12G is a launch pin/tab and dielectric to manufactured by Southwest Microwave. This pin/tab and dielectric has a 0.015" Pin Diameter, 0.160" Pin Length, 0.030" Tab Length, 0.048" Dielectric Diameter, and 0.125" Dielectric Length. All Southwest Microwave Launch Pin/Tab and Dielectric Transition to Microstrip are made of Beryllium Copper, with Gold over Nickel plating and Virgin TFE Fluorocarbon. Southwest Microwave Cage Code: 66049

Measurements

Pin Diameter (d. Dia.): 0.015"

Pin Length (L1): 0.160"

Tab Length (T): 0.030"

Dielectric Diameter (D. Dia.): 0.048"

Dielectric Length (L2): 0.125"





 Mechanical Specifications

Item

Specification

 Launch Pin

 Beryllium Copper (BeCu) Per ASTM B196/197

 Plating

 Gold over Nickel Per MIL-G-45204

 Dielectric

 Virgin TFE Fluorocarbon Per ASTM D1710 and ASTM D1457

*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242
Type:
End Launch Accessories
Style:
Launch Pins
Application:
0.015 Pin
PRODUCT DETAILS
Southwest Microwave Part Number: 290-12G


290-12G is a launch pin/tab and dielectric to manufactured by Southwest Microwave. This pin/tab and dielectric has a 0.015" Pin Diameter, 0.160" Pin Length, 0.030" Tab Length, 0.048" Dielectric Diameter, and 0.125" Dielectric Length. All Southwest Microwave Launch Pin/Tab and Dielectric Transition to Microstrip are made of Beryllium Copper, with Gold over Nickel plating and Virgin TFE Fluorocarbon. Southwest Microwave Cage Code: 66049

Measurements

Pin Diameter (d. Dia.): 0.015"

Pin Length (L1): 0.160"

Tab Length (T): 0.030"

Dielectric Diameter (D. Dia.): 0.048"

Dielectric Length (L2): 0.125"





 Mechanical Specifications

Item

Specification

 Launch Pin

 Beryllium Copper (BeCu) Per ASTM B196/197

 Plating

 Gold over Nickel Per MIL-G-45204

 Dielectric

 Virgin TFE Fluorocarbon Per ASTM D1710 and ASTM D1457

WARRANTY INFORMATION
*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242
Part No: 290-12G
290-12G - Launch Pin-Tab and Dielectric to Microstrip

Southwest Microwave Part Number: 290-12G


290-12G is a launch pin/tab and dielectric to manufactured by Southwest Microwave. This pin/tab and dielectric has a 0.015" Pin Diameter, 0.160" Pin Length, 0.030" Tab Length, 0.048" Dielectric Diameter, and 0.125" Dielectric Length. All Southwest Microwave Launch Pin/Tab and Dielectric Transition to Microstrip are made of Beryllium Copper, with Gold over Nickel plating and Virgin TFE Fluorocarbon. Southwest Microwave Cage Code: 66049

Measurements

Pin Diameter (d. Dia.): 0.015"

Pin Length (L1): 0.160"

Tab Length (T): 0.030"

Dielectric Diameter (D. Dia.): 0.048"

Dielectric Length (L2): 0.125"





 Mechanical Specifications

Item

Specification

 Launch Pin

 Beryllium Copper (BeCu) Per ASTM B196/197

 Plating

 Gold over Nickel Per MIL-G-45204

 Dielectric

 Virgin TFE Fluorocarbon Per ASTM D1710 and ASTM D1457

Part No: 290-12G
LTR
DESCRIPTION
DATE
APPR
THIS DRAWING IS A CONTROLLED DOCUMENT
DRAWN BY:
CHECKED BY:
APPROVED BY:
THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF HASCO COMPONENTS AND SHALL NOT BE REPRODUCED, COPIED NOR USED - IN WHOLE OR IN PART - AS THE BASIS FOR THE MANUFACTURE OR SALE OF OTHER ITEMS WITHOUT THE EXPRESS, RITTEN PERMISSION OF HASCO COMPONENTS.

MATERIALS:

SEE DATA SHEET

CAGE CODE:

290-12G

MATERIALS:

SEE DATA SHEET

SCALE:

NS

SIZE:

REV:
