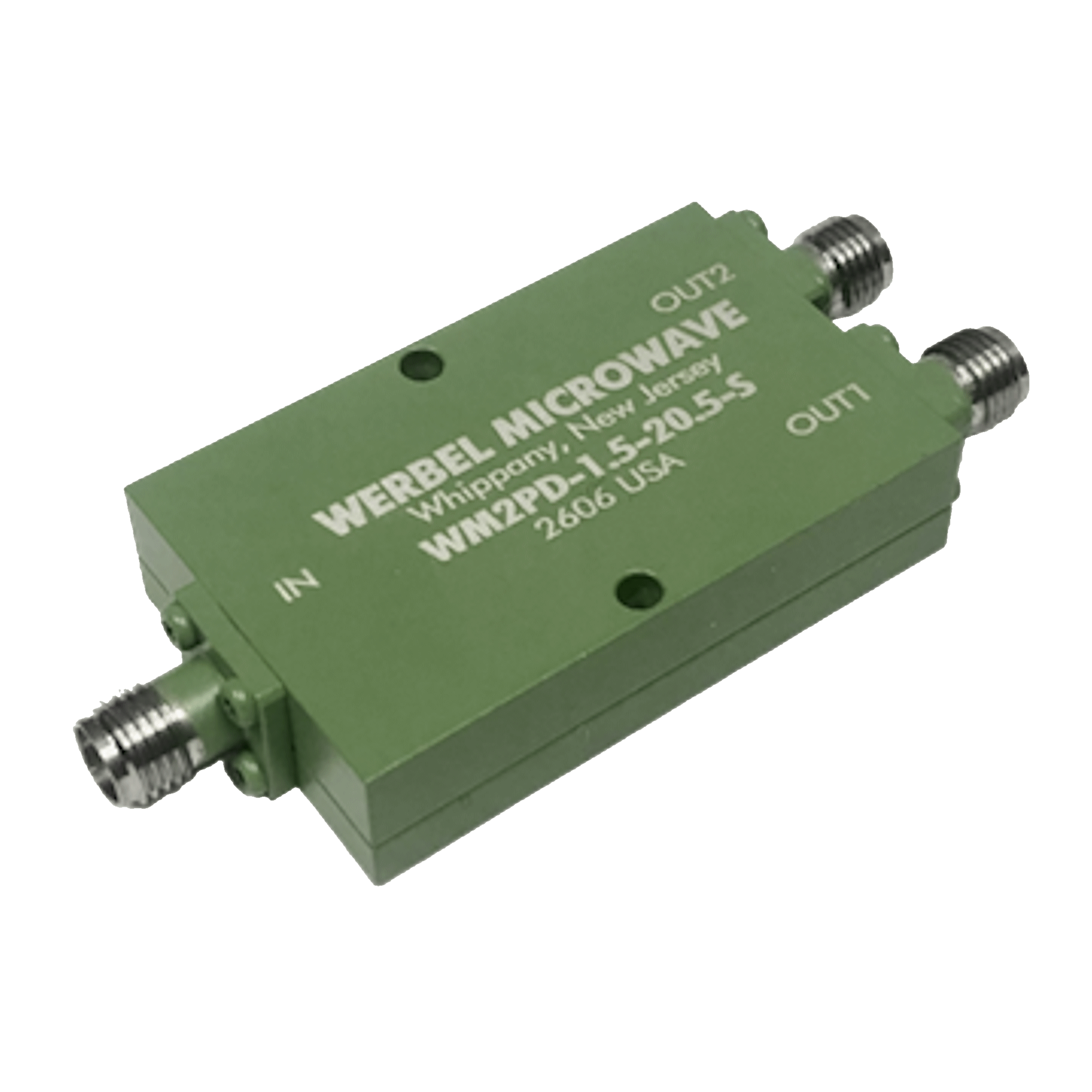

The WM2PD-1.5-20.5-S 2-Way Power Divider by Werbel Microwave covers 1.5 to 20.5 GHz and is designed for engineers who need wideband performance in a compact, cost-efficient package. Optimized for size, bandwidth, and manufacturability, it is well suited for high-volume applications, lab use, and general-purpose signal distribution where extreme port match is not required. Manufactured in the United States, the unit provides consistent insertion loss with tight amplitude and phase balance across the band. Its production-optimized design ensures repeatable, unit-to-unit performance without the need for post-assembly tuning. Compared to higher-specification models, this divider offers extended bandwidth and reduced size at the expense of port match performance. It is ideal for broadband test setups, signal routing, and other non-critical RF applications where reliability, availability, and value take priority over precision matching. Werbel Microwave Cage Code: 78YZ0.
« Datasheet Electrical Specifications
Item |
Specification |
|---|---|
|
Frequency Range |
1.5 to 20.5 GHz |
|
Impedance |
50 Ohms |
|
Insertion Loss (above 3.01 dB split loss) |
0.5 dB Typical, 1.5 dB Max |
|
Isolation |
26.8 dB Typical |
|
Return Loss (Port S) |
20.7 dB Typical |
|
Return Loss (Port 1-2) |
20.9 dB Typical |
|
Amplitude Unbalance |
0.2 dB Typical, 0.7 dB Max |
|
Phase Unbalance |
0.3° Typical, 6° Max |
|
Input Power |
20 Watt |
Environmental Specifications
Item |
Specification |
|---|---|
|
Temperature Range |
-55°C to 85°C (Operating), -55°C to 100°C (Storage) |
|
Humidity |
10% - 90% non-condensing |
Mechanical Specifications
Item |
Specification |
|---|---|
|
Weight |
36 g |
Material Specifications
Item |
Specification |
|---|---|
|
Body |
Aluminum |
|
Connectors |
Stainless Steel |
|
Contact |
Gold plated BeCu |
|
Insulator |
PTFE |
|
Finish |
Green Paint |
- Connector 1 Series 1:
- SMA
- Division:
- 2-Way
- Frequency Range (Max):
- 20.5 GHz
- Frequency Range (Min):
- 1.5 GHz
- Connector 1 Series 1 Gender:
- Female
- Download[PDF]:
- https://www.hasco-inc.com/content/WM2PD-1.5-20.5-S_Datasheet.pdf
