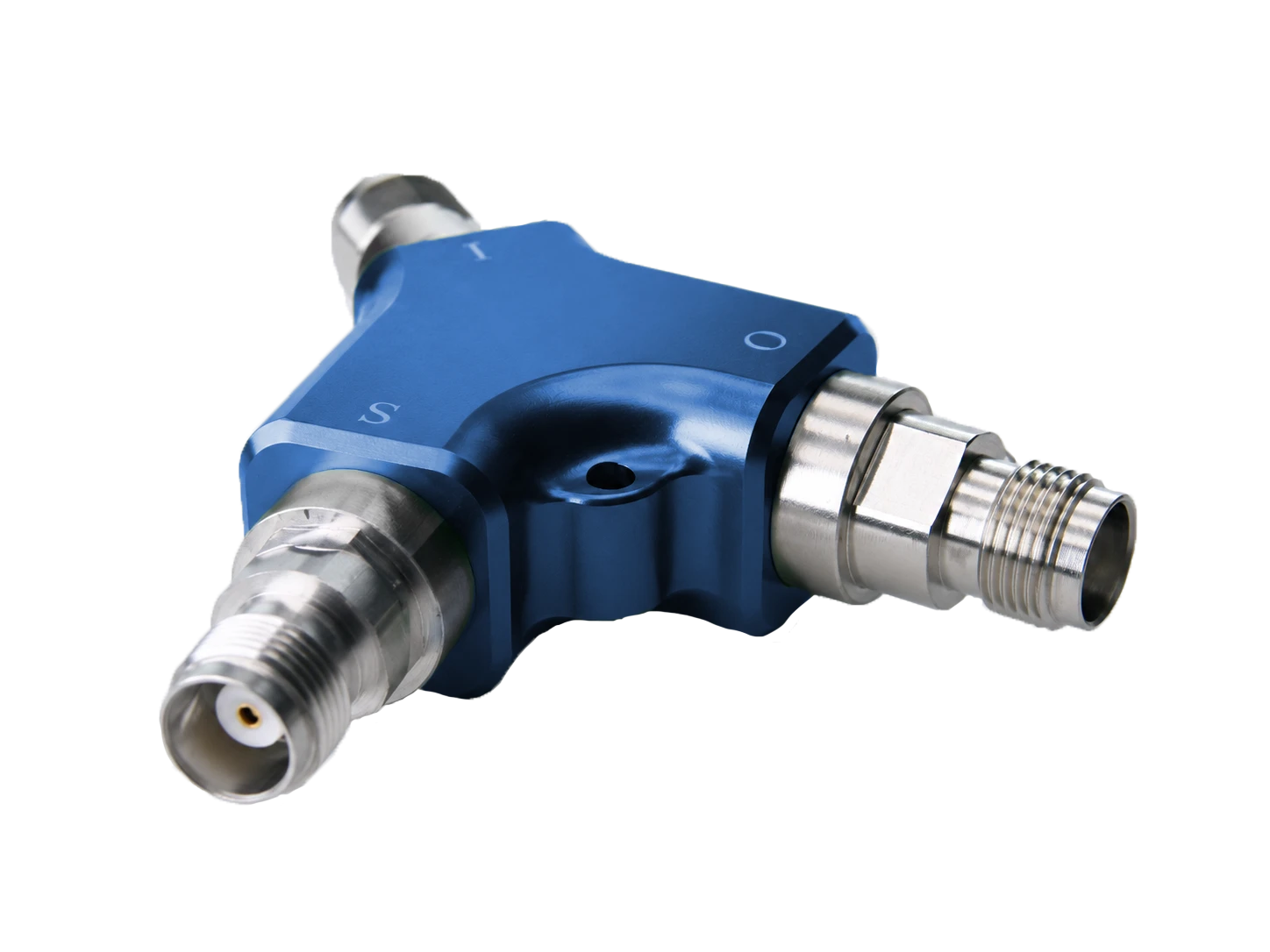

TNC Female Open-Short-Load Calibration Kit

TNC Female Open-Short-Load Calibration Kit - 18 GHz

$1,111.32

Part #:

HAOSL-TNCJ-12

Brand:

HASCO Components

Weight:

2.00 Ounces

Shipping:

Calculated at checkout

Out of stock - Call for availability

Pricing by Quantity:

QUANTITY

1 to 1

Buy 2 - 4

Buy 5 or above

PRICE

$1,111.32

$1,077.98

$1,045.64

PRODUCT DETAILS
Warranty Information

Description

HASCO Part Number: HAOSL-TNCJ-12

The HASCO RF TNC Female Open-Short-Load Calibration Standard provides accurate and repeatable calibration for Vector Network Analyzers (VNA) up to 12 GHz. The integrated OSL design combines Open, Short, and Precision Load standards in a rugged, compact assembly ideal for laboratory, production, and field applications. HASCO Cage Code: 0T8L4

« Datasheet

Features

Compact one-piece design

High return loss performance

Low phase error

Laser engraved port identification

Includes calibration data

Electrical

Item	Specification
Impedance	50 Ω
DC Resistance	50 ± 0.50 Ω
Max Power	0.5 Watts
Frequency Range	DC - 12 GHz
Phase Error (Open/Short)	≦ 3° (DC - 4 GHz) ≦ 6° (4 - 8 GHz) ≦ 9° (8 - 12 GHz)
Return Loss (Open/Short)	≦ 0.1 dB (DC - 4 GHz) ≦ 0.2 dB (4 - 8 GHz) ≦ 0.3 dB (8 - 12 GHz)
Return Loss (Load)	≧ 30 dB (DC - 4 GHz) ≧ 26 dB (4 - 8 GHz) ≧ 23 dB (8 - 12 GHz)
Capacitance (Open)	79.0 (1E-15) F 40.0 (1E-36) F/Hz²

Mechanical

Item	Specification
Open Offset Length	80.169 ps
Short Offset Length	84.292 ps

Environmental

Item	Specification
Temperature Range (Storage)	-20°C to 75°C
Temperature Range (Optimal)	20°C to 25°C
RoHS	Compliant

Material

Item	Specification
Housing	Anodized Aluminum
Body & Nut	Passivated Stainless Steel
Dielectric	PPO
Contact	Gold plated BeCu
Cap	PVC

*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242

Frequency, Max:: 12 GHz
Frequency, Min:: DC
Download[PDF]:: https://store-68dp4b.mybigcommerce.com/content/Calibration%20Kits/HAOSL-TNCJ-12_Datasheet.pdf
Power, Max:: 0.5 Watts
Phase Error (Open):: < 9°
Phase Error (Short):: < 9°
Return Loss (Load):: > 23 dB
