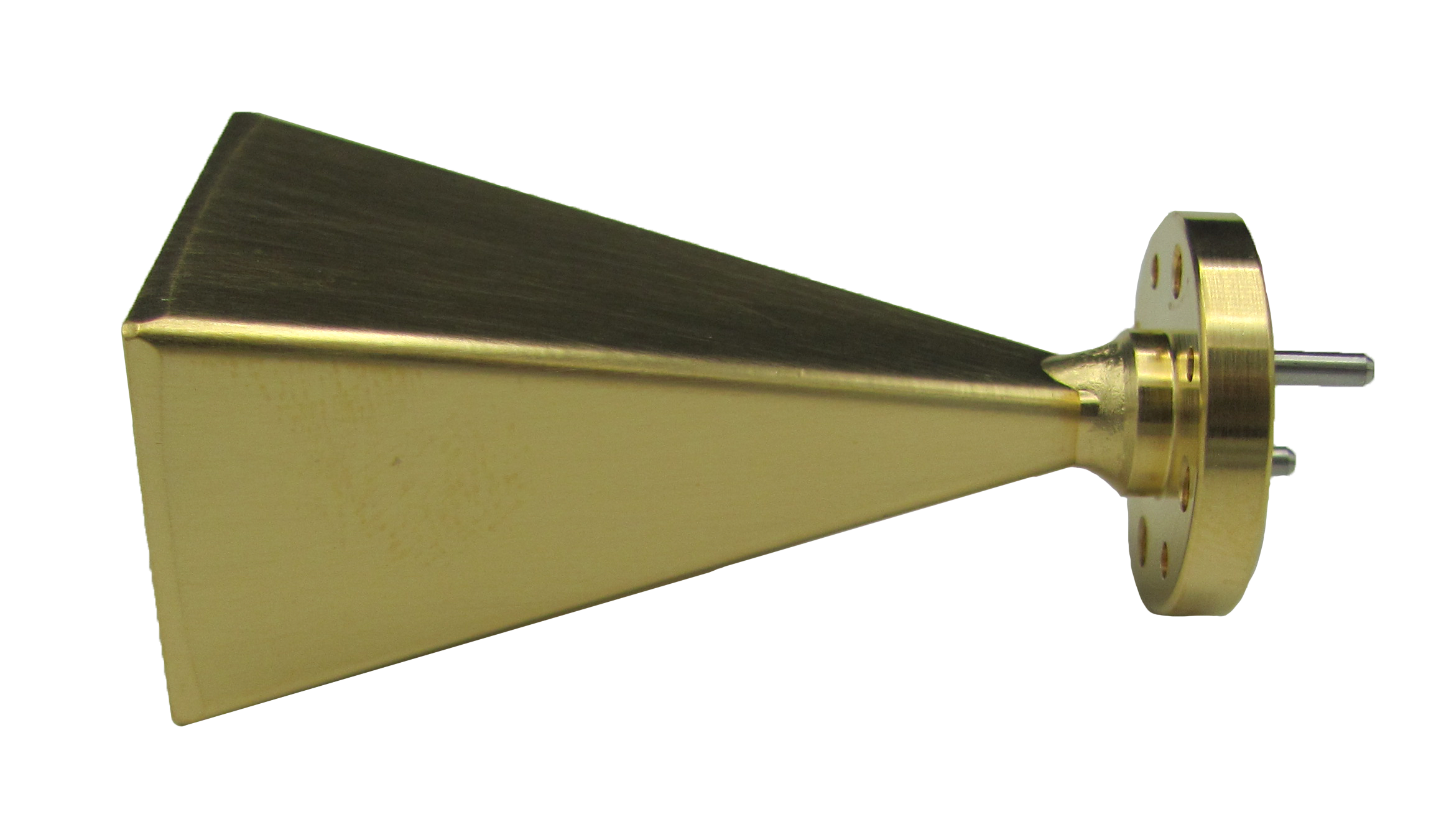

WR-10 Rectangular Standard Gain Horn Antenna 23 dBi Typical Gain, W Band - 75 to 110 GHz

$1,357.00
Part #:
HWSGH10-23-ER
Brand:
HASCO Components
Weight:
2.00 Ounces
Shipping:
Calculated at checkout
Current Stock:
9

Pricing by Quantity:

QUANTITY

1 to 9

Buy 10 - 24

PRICE

$1,357.00

$1,316.29

ADD TO WISHLIST

Description

HASCO Part Number: HWSGH10-23-ER


HWSGH10-23-ER is a W-band WR-10 waveguide standard rectangular gain horn antenna that operates from 75 GHz to 110 GHz. The antenna offers 23 dBi typical gain, precisely electroformed over a mandrel and gold plated. These horns have a pyramidal shape with a rectangular aperture. The standard gain horn antenna supports linear polarized waveforms. The input of this antenna is a WR-10 waveguide with UG-387/U MOD flange. The standard gain horn antenna is used for antenna range calibration and general-purpose system set ups.

Horns with different gain values can be special ordered. Rectangular Horns are available in sizes WR3 to WR42.

Applications

• Low F/D Antennas

• Surveillance Systems

• Offset Feed Antenna

HASCO’s Stand Rectangular Gain Horns are used in a wide variety of applications, such as antenna testing and RF radiation pattern measurement. HASCO gain horns function as a calibration standard or as reference for antenna gain measurement. They are also used as feed horns for lens and reflector antennas or stand-alone antennas in subsystems.

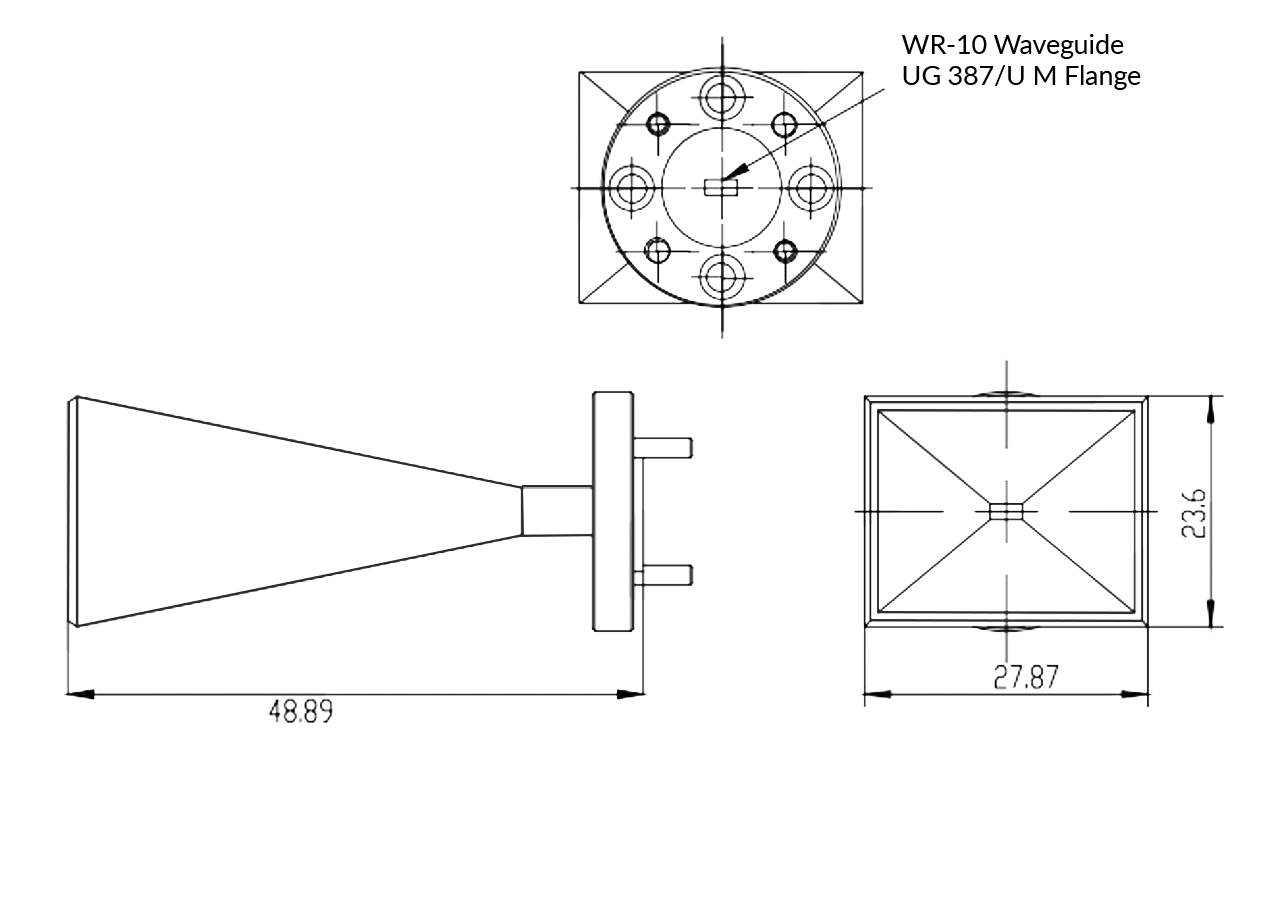

Click Here to View Outline  « Click Here for the HWSGH10-23-ER Outline Drawing

 Specifications

Item

Specification

 Gain

 23 dBi

 Frequency Range

 75 to 110 GHz

 Impedance

 50 Ohms

 VSWR

 1.10:1 Max

 Input

 WR-10 Waveguide

 Flange

 UG-387/U MOD

 Series

 Directional

 Polarity

 Vertical

 Temperature Range

 -55°C to 85°C



 Mechanical Specifications

Item

Specification

 Body Material

 Gold Plated Electroformed Copper

 Length - L

 1.940 inch

 Width - W

 0.969 inch

 Height - H

 0.740 inch

 Flange

 Round 0.750

 WG A DIM

 0.1000 inch

WG B DIM

 0.0500 inch

*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242. Email: sales@hasco-inc.com
Type:
Standard Gain Horn
Style:
WR-10 Waveguide Horn
Application:
W-Band Waveguide Horn
Operating Frequency Range (GHz):
75 to 110 GHz
Connector:
UG-387/U MOD Flange
Gain:
23 dBi
Length (inch):
1.940 inch
Width (inch):
0.969 inch
Height (inch):
0.740 inch
Body Style:
Right Angle
Series Type:
Directional
PRODUCT DETAILS
HASCO Part Number: HWSGH10-23-ER


HWSGH10-23-ER is a W-band WR-10 waveguide standard rectangular gain horn antenna that operates from 75 GHz to 110 GHz. The antenna offers 23 dBi typical gain, precisely electroformed over a mandrel and gold plated. These horns have a pyramidal shape with a rectangular aperture. The standard gain horn antenna supports linear polarized waveforms. The input of this antenna is a WR-10 waveguide with UG-387/U MOD flange. The standard gain horn antenna is used for antenna range calibration and general-purpose system set ups.

Horns with different gain values can be special ordered. Rectangular Horns are available in sizes WR3 to WR42.

Applications

• Low F/D Antennas

• Surveillance Systems

• Offset Feed Antenna

HASCO’s Stand Rectangular Gain Horns are used in a wide variety of applications, such as antenna testing and RF radiation pattern measurement. HASCO gain horns function as a calibration standard or as reference for antenna gain measurement. They are also used as feed horns for lens and reflector antennas or stand-alone antennas in subsystems.

Click Here to View Outline  « Click Here for the HWSGH10-23-ER Outline Drawing

 Specifications

Item

Specification

 Gain

 23 dBi

 Frequency Range

 75 to 110 GHz

 Impedance

 50 Ohms

 VSWR

 1.10:1 Max

 Input

 WR-10 Waveguide

 Flange

 UG-387/U MOD

 Series

 Directional

 Polarity

 Vertical

 Temperature Range

 -55°C to 85°C



 Mechanical Specifications

Item

Specification

 Body Material

 Gold Plated Electroformed Copper

 Length - L

 1.940 inch

 Width - W

 0.969 inch

 Height - H

 0.740 inch

 Flange

 Round 0.750

 WG A DIM

 0.1000 inch

WG B DIM

 0.0500 inch

WARRANTY INFORMATION
*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242. Email: sales@hasco-inc.com
Part No: HWSGH10-23-ER
WR-10 Rectangular Standard Gain Horn Antenna 23 dBi Typical Gain, W Band - 75 to 110 GHz

HASCO Part Number: HWSGH10-23-ER


HWSGH10-23-ER is a W-band WR-10 waveguide standard rectangular gain horn antenna that operates from 75 GHz to 110 GHz. The antenna offers 23 dBi typical gain, precisely electroformed over a mandrel and gold plated. These horns have a pyramidal shape with a rectangular aperture. The standard gain horn antenna supports linear polarized waveforms. The input of this antenna is a WR-10 waveguide with UG-387/U MOD flange. The standard gain horn antenna is used for antenna range calibration and general-purpose system set ups.

Horns with different gain values can be special ordered. Rectangular Horns are available in sizes WR3 to WR42.

Applications

• Low F/D Antennas

• Surveillance Systems

• Offset Feed Antenna

HASCO’s Stand Rectangular Gain Horns are used in a wide variety of applications, such as antenna testing and RF radiation pattern measurement. HASCO gain horns function as a calibration standard or as reference for antenna gain measurement. They are also used as feed horns for lens and reflector antennas or stand-alone antennas in subsystems.

Click Here to View Outline  « Click Here for the HWSGH10-23-ER Outline Drawing

 Specifications

Item

Specification

 Gain

 23 dBi

 Frequency Range

 75 to 110 GHz

 Impedance

 50 Ohms

 VSWR

 1.10:1 Max

 Input

 WR-10 Waveguide

 Flange

 UG-387/U MOD

 Series

 Directional

 Polarity

 Vertical

 Temperature Range

 -55°C to 85°C



 Mechanical Specifications

Item

Specification

 Body Material

 Gold Plated Electroformed Copper

 Length - L

 1.940 inch

 Width - W

 0.969 inch

 Height - H

 0.740 inch

 Flange

 Round 0.750

 WG A DIM

 0.1000 inch

WG B DIM

 0.0500 inch

Part No: HWSGH10-23-ER
