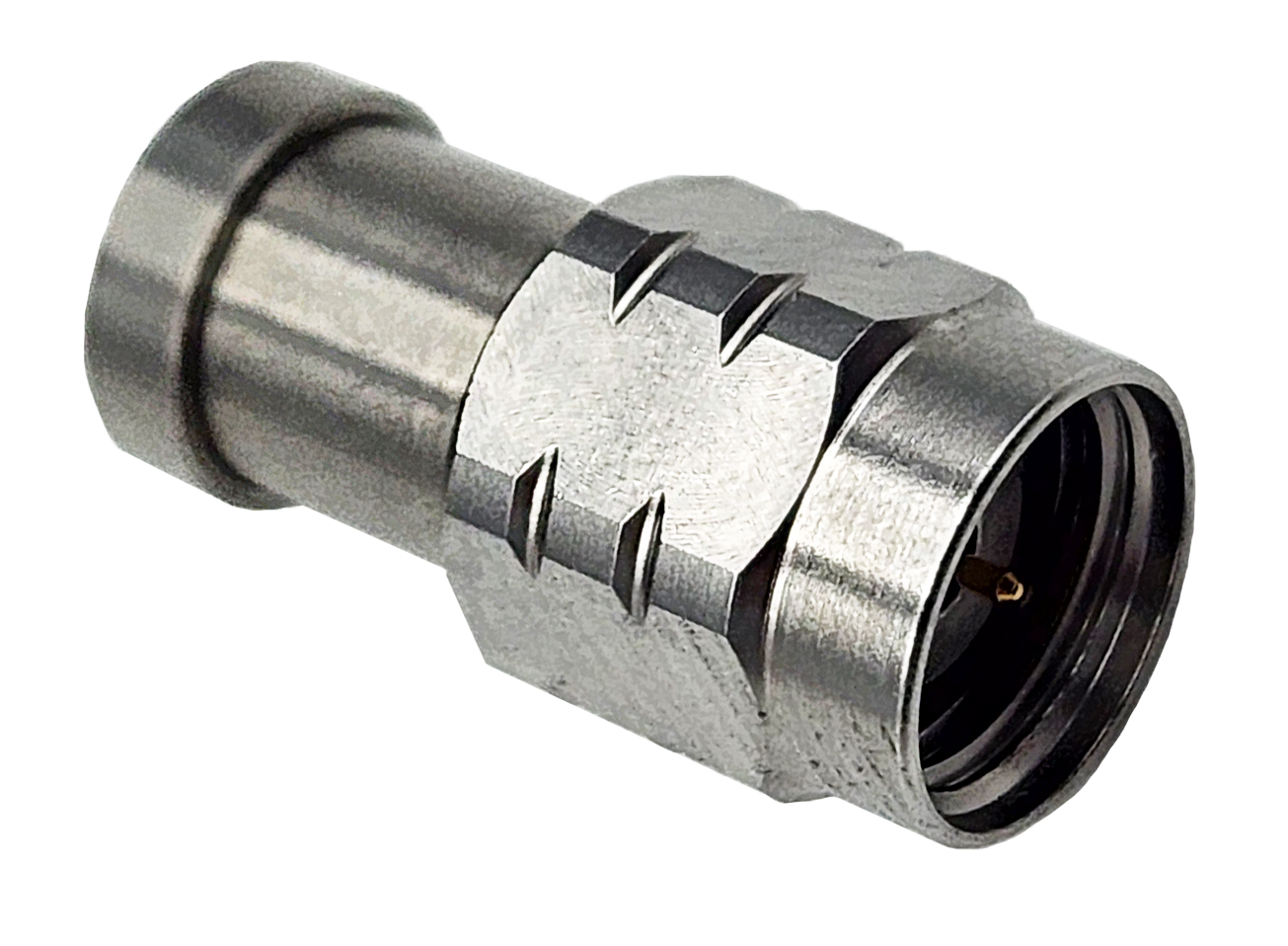

1 Watt Coaxial Termination with 1.85mm Male Connector

1 Watt Coaxial Termination with 1.85mm Male Connector - 67 GHz

$331.36

Part #:

HT65M-1

Brand:

HASCO Components

Weight:

1.00 Ounces

Shipping:

Calculated at checkout

Current Stock:

Pricing by Quantity:

QUANTITY

1 to 9

Buy 10 - 24

Buy 25 - 49

Buy 50 - 99

Buy 100 - 249

Buy 250 - 499

Buy 500 or above

PRICE

$331.36

$321.42

$311.78

$302.43

$293.35

$284.55

$276.02

PRODUCT DETAILS
Warranty Information

Description

HASCO Part Number: HT65M-1

Features
• RoHs Compliant

The HASCO HT65M-1 is a 1.85mm Male Coaxial Termination manufactured by HASCO Components. HT65M-1 is rated for operation from DC to 67 GHz and rated for 1 Watts. RF Loads, also known as Terminations are used to prevent signals from flowing back into a transmission line causing unwanted distortion and power loss. Terminations are available for coaxial transmission lines and waveguide. HASCO Cage Code: 0T8L4

« Datasheet

Electrical

Item	Specification
Impedence	50 Ohms
Frequency Range	DC to 67 GHz
VSWR	1.20:1 @ DC - 18 GHz 1.30:1 @ 10 - 40 GHz 1.35:1 @ 40 - 67 GHz
Power	Watt AVG TO 25°C (AMBIENT TEMPERATURE, DERATED LINEARLY TO 0.1 W @ 125°C) 0.1 KW (5μS PLUSE WIDTH WITH 0.5% DUTY CYCLE)
Torque	0.90 NM Recommended, 1.7 NM Max

Mechanical

Item	Specification
Durability	500 Cycles Min

Environmental

Item	Specification
Temperature Range	-55°C to 125°C

Material

Item	Specification
Body & Nut	Passivated Stainless Steel
Contact	Gold plated BeCu
Dielectric	PEI
Resistance	Beryllium Oxide

*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242

Adapter Body Style:: Straight
Connector 1 Gender:: Male
Connector 1 Series:: 1.85mm
Frequency, Max:: 67 GHz
Frequency, Min:: DC
