Description
Features
• RoHs Compliant

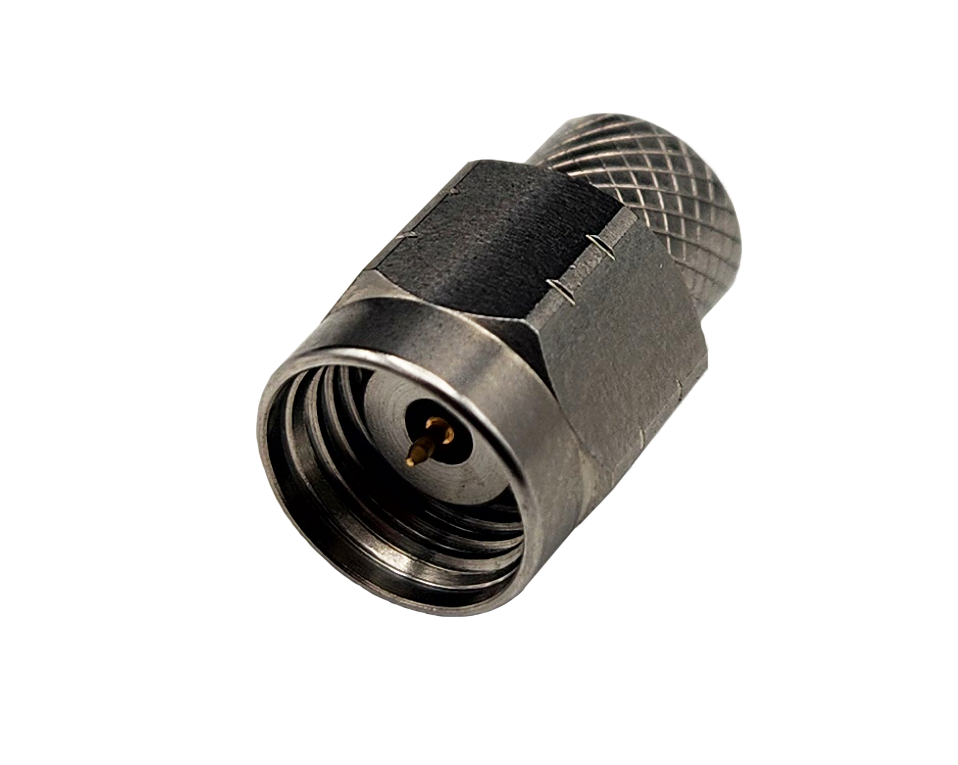

The HASCO HT67M-2 is a 1.85mm Male RF Load / RF Termination manufactured by HASCO Components. HT67M-2 is rated for operation from DC to 67 GHz and rated for 2 Watts. RF Loads, also known as Terminations are used to prevent signals from flowing back into a transmission line causing unwanted distortion and power loss. Terminations are available for coaxial transmission lines and waveguide. HASCO Cage Code: 0T8L4
« Datasheet Item | Specification |
| Impedence | 50 Ohms |
| Frequency Range | DC to 67 GHz |
| VSWR | 1.30:1 Max |
| Power | 20 Watts Peak |
Mechanical
Item | Specification |
| Torque | 1.7 NM Max |
| Durability | 500 Cycles Min |
Environmental
Item | Specification |
| Temperature Range | -55°C to 125°C |
Material
Item | Specification |
|---|---|
| Body & Nut | Passivated Stainless Steel |
| Contact | Gold plated BeCu |
| Dielectric | PEI |
- Adapter Body Style:
- Straight
- Connector 1 Gender:
- Male
- Connector 1 Series:
- 1.85mm
- Frequency, Max:
- 67 GHz
- Frequency, Min:
- DC
