2.4mm Male Open-Short-Load-Through Calibration Kit

2.4mm Male Open-Short-Load-Through Calibration Kit - 50 GHz

$3,038.76

Part #:

HAOSLT-24P-50

Brand:

HASCO Components

Weight:

2.00 Ounces

Shipping:

Calculated at checkout

Out of stock - Call for availability

Pricing by Quantity:

QUANTITY

1 to 1

Buy 2 - 4

Buy 5 or above

PRICE

$3,038.76

$2,947.60

$2,859.17

PRODUCT DETAILS
Warranty Information

Description

HASCO Part Number: HAOSLT-24P-50

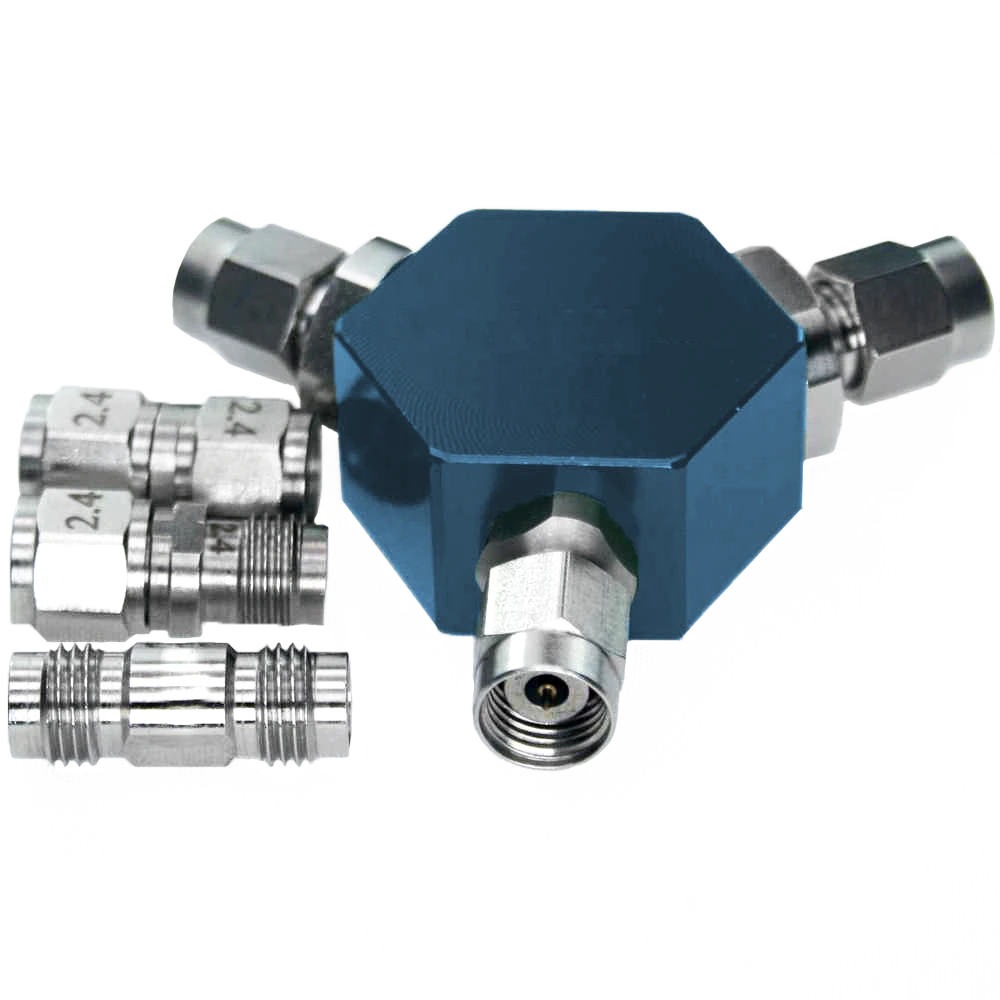

The HASCO RF 2.4mm Male Open-Short-Load-Through Calibration Standard provides accurate and repeatable calibration for Vector Network Analyzers (VNA) up to 50 GHz. The integrated OSLT design combines Open, Short, and Precision Load standards in a rugged, compact assembly ideal for laboratory, production, and field applications. HASCO Cage Code: 0T8L4

« Datasheet

Features

Compact one-piece design

High return loss performance

Low phase error

Laser engraved port identification

Includes calibration data

Electrical

Item	Specification
Impedance	50 Ω
DC Resistance	50 ± 0.50 Ω
Max Power	0.25 Watts
Frequency Range	DC - 50 GHz
Insertion Loss (Through)	≦ 0.3 dB
Phase Error (Open/Short)	≦ 2° (DC - 10 GHz) ≦ 3° (10 - 26.5 GHz) ≦ 4° (26.5 - 50 GHz)
Return Loss (Open/Short)	≦ 0.1 dB (DC - 10 GHz) ≦ 0.2 dB (10 - 26.5 GHz) ≦ 0.3 dB (26.5 - 50 GHz)
Return Loss (Load)	≧ 38 dB (DC - 4 GHz) ≧ 30 dB (4 - 20 GHz) ≧ 26 dB (20 - 26.5 GHz)
Return Loss (Through)	≧ 30 dB (DC - 4 GHz) ≧ 26 dB (4 - 26.5 GHz) ≧ 23 dB (26.5 - 50 GHz)
Capacitance (Open)	29.722 (1E-15) F -3.539 (1E-36) F/Hz²

Mechanical

Item	Specification
Open/Short Offset Length	20.83 ps (Open) 22.54 ps (Short)

Environmental

Item	Specification
Temperature Range (Storage)	-20°C to 75°C
Temperature Range (Optimal)	20°C to 25°C
RoHS	Compliant

Material

Item	Specification
Housing	Anodized Aluminum
Body & Nut	Passivated Stainless Steel
Dielectric	PS (Open) PPO (Load/Through)
Contact	Gold plated BeCu
Cap	PVC

*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242

Frequency, Max:: 50 GHz
Frequency, Min:: DC
Download[PDF]:: https://store-68dp4b.mybigcommerce.com/content/Calibration%20Kits/HAOSLT-24P-50_Datasheet.pdf
Power, Max:: 0.25 Watts
Phase Error (Open):: < 4°
Phase Error (Short):: < 4°
Return Loss (Load):: > 23 dB
