Description

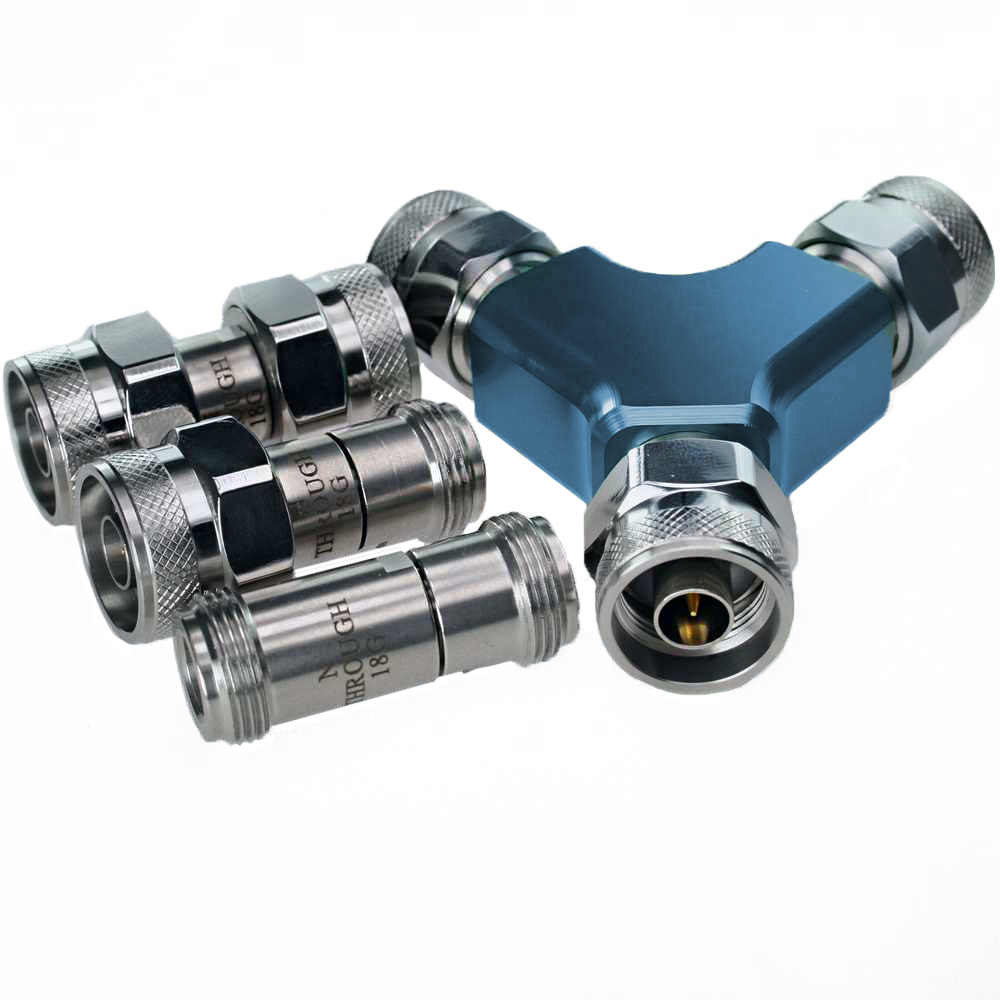

The HASCO RF Type N Male Open-Short-Load-Through Calibration Standard provides accurate and repeatable calibration for Vector Network Analyzers (VNA) up to 18 GHz. The integrated OSLT design combines Open, Short, and Precision Load standards in a rugged, compact assembly ideal for laboratory, production, and field applications. HASCO Cage Code: 0T8L4
« Datasheet|
|
|
Compact one-piece design |
|
High return loss performance |
|
Low phase error |
|
Laser engraved port identification |
|
Includes calibration data |
Item |
Specification |
|
Impedance |
50 Ω |
|
DC Resistance |
50 ± 0.50 Ω |
|
Max Power |
1 Watt |
|
Frequency Range |
DC - 18 GHz |
|
Insertion Loss (Through) |
≦ 0.2 dB |
|
Phase Error (Open/Short) |
≦ 1.5° (DC - 6 GHz) |
|
Return Loss (Open/Short) |
≦ 0.10 dB (DC - 6 GHz) |
|
Return Loss (Load) |
≧ 42 dB (DC - 6 GHz) |
|
Return Loss (Through) |
≧ 36 dB (DC - 6 GHz) |
|
Capacitance (Open) |
4.0 (1E-15) F |
Item |
Specification |
|---|---|
|
Open/Short Offset Length |
59.44 ps |
Item |
Specification |
|---|---|
|
Temperature Range (Storage) |
-20°C to 75°C |
|
Temperature Range (Optimal) |
20°C to 25°C |
|
RoHS |
Compliant |
Item |
Specification |
|---|---|
|
Housing |
Anodized Aluminum |
|
Body |
Tin-Zinc-Copper alloy plated Brass |
|
Body & Nut (Adaptor) |
Passivated Stainless Steel |
|
Dielectric |
PPO |
|
Contact |
Gold plated BeCu |
|
Cap |
PVC |
- Frequency, Max:
- 18 GHz
- Frequency, Min:
- DC
- Download[PDF]:
- https://store-68dp4b.mybigcommerce.com/content/Calibration%20Kits/HAOSLT-NP-18_Datasheet.pdf
- Power, Max:
- 1 Watt
- Phase Error (Open):
- < 3.0°
- Phase Error (Short):
- < 3.0°
- Return Loss (Load):
- > 30 dB
