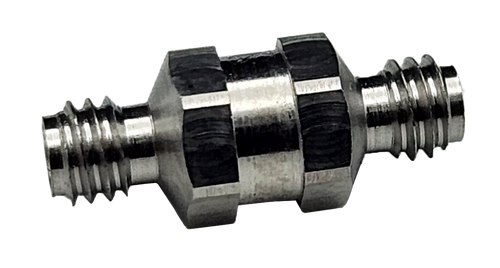

1.0mm Female to 1.0mm Male Adapter - 110 GHz

$525.00
Part #:
2430-00SF
Brand:
Southwest Microwave
Weight:
0.50 Ounces
Shipping:
Calculated at checkout
Current Stock:
1

For quantities greater than current stock levels, please contact customer service at 1-888-498-3242

Pricing by Quantity:

QUANTITY

1 to 9

Buy 10 - 24

Buy 25 - 49

Buy 50 or above

PRICE

$525.00

$469.27

$423.30

$387.26

ADD TO WISHLIST

Description

Southwest Microwave Part Number: 2430-00SF

2430-00SF is a 1.0mm Female to 1.0mm Male in series adapter manufactured by Southwest Microwave. This in series 1.0mm to 1.0mm coax adapter will operate up to 110 GHz. Adapters that have a male to female or plug to jack configuration are known as "connector savers." Typically, a low loss or low VSWR male to female adapter is placed on more expensive component connectors to prevent damage.  Bulkhead adapters and right angle adapters are also available from Southwest Microwave. Southwest Microwave Cage Code: 66049

Click Here to View Outline  « Click Here for the 2430-00SF Outline Drawing

 Specifications

Item

Specification

 Frequency Range

 DC to 110 GHz

 VSWR

 DC to 110 GHz:     1.28:1 MAX

 RF Leakage

 < -100 dB

 Temperature Range

 -55°C to 165°C



 Mechanical Specifications

Item

Specification

 Housing Material

 STEEL, CRES ALLOY UNS-30300 PER ASTM A582 PASSIVATED PER ASTM A967-99

 Coupling Nut

 STEEL, CRES ALLOY UNS-30300 PER ASTM A582 PASSIVATED PER ASTM A967-99

 Retaining Ring

 BeCu UNS-C17300 PER ASTM B196/197

 Contact

 BeCu UNS-C17300 PER ASTM B196 GOLD PLATE PER MIL-DTL-45204

 Capture Bead

ULTEM 1000 PER ASTM D5205

*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242
Adapter Body Style:
Straight
Connector 1 Gender:
Female
Connector 1 Series:
1.0mm
Connector 2 Gender:
Male
Connector 2 Series:
1.0mm
Frequency, Max:
110 GHz
Frequency, Min:
DC
Type:
In-Series
PRODUCT DETAILS
Southwest Microwave Part Number: 2430-00SF

2430-00SF is a 1.0mm Female to 1.0mm Male in series adapter manufactured by Southwest Microwave. This in series 1.0mm to 1.0mm coax adapter will operate up to 110 GHz. Adapters that have a male to female or plug to jack configuration are known as "connector savers." Typically, a low loss or low VSWR male to female adapter is placed on more expensive component connectors to prevent damage.  Bulkhead adapters and right angle adapters are also available from Southwest Microwave. Southwest Microwave Cage Code: 66049

Click Here to View Outline  « Click Here for the 2430-00SF Outline Drawing

 Specifications

Item

Specification

 Frequency Range

 DC to 110 GHz

 VSWR

 DC to 110 GHz:     1.28:1 MAX

 RF Leakage

 < -100 dB

 Temperature Range

 -55°C to 165°C



 Mechanical Specifications

Item

Specification

 Housing Material

 STEEL, CRES ALLOY UNS-30300 PER ASTM A582 PASSIVATED PER ASTM A967-99

 Coupling Nut

 STEEL, CRES ALLOY UNS-30300 PER ASTM A582 PASSIVATED PER ASTM A967-99

 Retaining Ring

 BeCu UNS-C17300 PER ASTM B196/197

 Contact

 BeCu UNS-C17300 PER ASTM B196 GOLD PLATE PER MIL-DTL-45204

 Capture Bead

ULTEM 1000 PER ASTM D5205

WARRANTY INFORMATION
*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242
Part No: 2430-00SF
1.0mm Female to 1.0mm Male Adapter - 110 GHz

Southwest Microwave Part Number: 2430-00SF

2430-00SF is a 1.0mm Female to 1.0mm Male in series adapter manufactured by Southwest Microwave. This in series 1.0mm to 1.0mm coax adapter will operate up to 110 GHz. Adapters that have a male to female or plug to jack configuration are known as "connector savers." Typically, a low loss or low VSWR male to female adapter is placed on more expensive component connectors to prevent damage.  Bulkhead adapters and right angle adapters are also available from Southwest Microwave. Southwest Microwave Cage Code: 66049

Click Here to View Outline  « Click Here for the 2430-00SF Outline Drawing

 Specifications

Item

Specification

 Frequency Range

 DC to 110 GHz

 VSWR

 DC to 110 GHz:     1.28:1 MAX

 RF Leakage

 < -100 dB

 Temperature Range

 -55°C to 165°C



 Mechanical Specifications

Item

Specification

 Housing Material

 STEEL, CRES ALLOY UNS-30300 PER ASTM A582 PASSIVATED PER ASTM A967-99

 Coupling Nut

 STEEL, CRES ALLOY UNS-30300 PER ASTM A582 PASSIVATED PER ASTM A967-99

 Retaining Ring

 BeCu UNS-C17300 PER ASTM B196/197

 Contact

 BeCu UNS-C17300 PER ASTM B196 GOLD PLATE PER MIL-DTL-45204

 Capture Bead

ULTEM 1000 PER ASTM D5205
