RF / MICROWAVE / mmWAVE INTERCONNECTS

Route closer. Reduce adapters. Keep RF performance in focus.

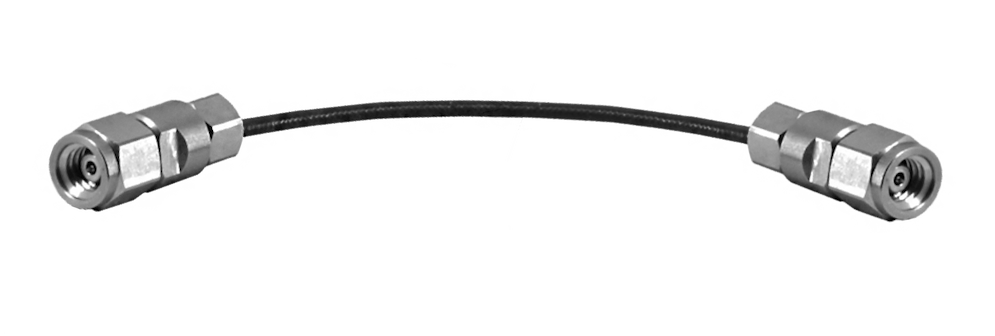

HLB055/HLB055A configurations available through 110 GHz. Performance depends on connector, length, and specific assembly.

Select by operating band and installation needs

Choose the cable family that fits your frequency range, connector interface, space constraints, and required mechanical protection.

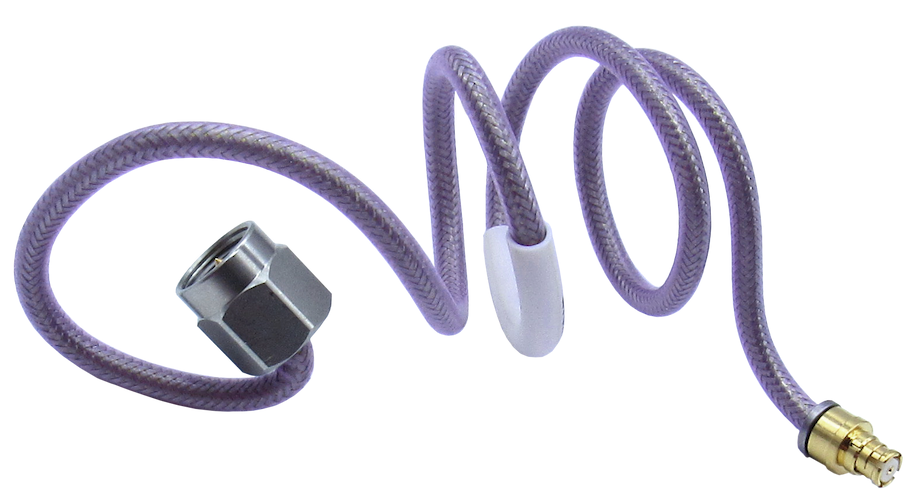

HLB098 | Ultra-flexible RF interconnects

0.098-inch cable. Published minimum bend radius: static 0.20" (5 mm) / repeated 0.40". Designed for compact routing; consult the part-specific specifications for shielding and phase/amplitude stability.

Examples: SMA to 26.5 GHz • 2.92 mm to 40 GHz • 2.4 mm to 50 GHz • 1.85 mm to 67 GHz. Also SMP, SMPM, Type N.

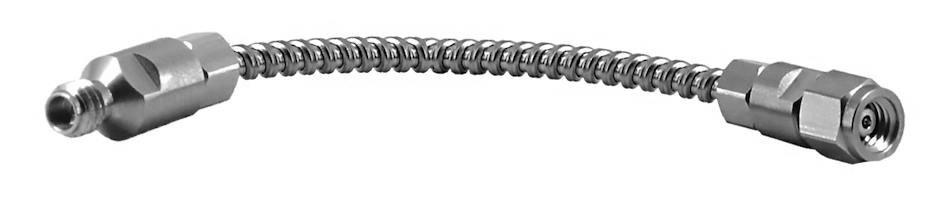

HLB055A | Armored protection

Specify your assembly in three steps

01   Frequency & interface — Operating band and connector type/gender at each end (availability varies by series).

02   Length & routing — Finished length (availability varies by series and connector), clearance, bend path, and whether armor is needed.

03   Quantity & delivery — Prototype or production quantity, target date, and any special requirements.

Review the selected part number for applicable VSWR and insertion-loss data. For engineering review, include your target limits if applicable. HASCO can match a standard configuration or quote a custom assembly.

Technical resources for your design

LittleBend Selection Resources — compare available configurations and interfaces.

Application & Selection Article — additional background for cable selection.

Complete LittleBend Resource Library — find supporting technical materials.

Have a tight RF cable routing challenge?

Send HASCO your operating band, connector interfaces, length, routing constraints, and quantity. Our technical sales team can help narrow the options.

Prefer email? sales@hasco-inc.com
