2.92mm Male to 2.92mm Male Test Cable using HLL150 Low Loss Flexible Cable, Phase Stable vs. Flexure, 60 Inches

$266.00
Part #:
HLL150-29P-29P-60
Brand:
HASCO Components
Weight:
4.00 Ounces
Shipping:
Calculated at checkout

Out of stock - Call for availability

For quantities greater than current stock levels, please contact customer service at 1-888-498-3242

Pricing by Quantity:

QUANTITY

1 to 9

Buy 10 - 24

Buy 25 - 49

Buy 50 or above

PRICE

$266.00

$262.55

$258.03

$250.29

ADD TO WISHLIST

Description

HASCO Part Number: HLL150-29P-29P-60

RF Cable Assemblies offered by HASCO Components are available in a variety of RF connectors and custom lengths for production and testing environments.  HLL150-29P-29P-60 is an RF test cable manufactured by HASCO Components.  The RF cable used is HLL150, it is designed to be Phase Stable against Flexure. HLL150-29P-29P-60 has 2.92mm Male to 2.92mm Male connectors. This RF Assembly is rated up to 40 GHz. For additional technical information please refer to the datasheet. HASCO Cage Code: 0T8L4

pdf-icon.png« Click Here for the HLL150-29P-29P-60 Datasheetpdf-icon.png« Click Here for the HLL150-29P-29P-60 Outline Drawing

FEATURES:

  •  RoHS Compliant
  •  Low Loss, Low VSWR, High Reliability
  •  Phase Stable over Temp: 550ppm Max @ -40°C ~ +85°C
  •  Phase Stability Vs. Flexure: ± 8° @ 40GHz (When wrapped 360°around a 2" diameter mandrel)
  •  Available with Stainless Steel Armor
  •  Cable Insertion Loss: -.75 dB per Ft @ 40 GHz
  •  Amplitude Stability: < ± 0.4 through 40 GHz

ELECTRICAL SPECIFICATIONS:

Max Frequency (GHz)

40









Capacitance (pF/ft)

24









Velocity Propagation (%)

83









RF Leakage @ 18 GHz (dB)











Time Delay (ns/Ft)

1.2









Impedance (Ohms)

50









Frequency (GHz)

2

6

18

26.5

40

Power CW (Watts)

420

215

125

100

75

Phase Stability vs. Flexure (°)

±0.4

±1.2

±3.6

±5.3

±8.0

MECHANICAL SPECIFICATIONS:

VA Armor Max Dia. (Inch)

0.15

Min. bend radius (Inch)

.75

Recommend Bend Radius (Inch)

2.0

Temperature Range (°C)

-55 to +85

MATERIALS AND FINISHES:

DESCRIPTION

MATERIALS

FINISH OR COLOR

Cable Jacket

FEP

Blue

Marker

Mil-l-23053

White

Contacts

BeCu

Gold Plated

Insulators

PEEK

None

Connector Bodies

Stainless Steel

Passivated

Connector Nuts

Stainless Steel

Passivated

Gasket

Silicon Rubber

A-A-59588




Test #1: 2.92mm Male to 2.92mm Male, 24 inches, DC - 40 GHz



Test #2: 2.92mm to 2.92mm Male, 24 inches, DC - 40 GHz
*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242
Type:
Coax Cable Assemblies
Style:
Test Cable Assemblies
Application:
2.92mm Male to 2.92mm Male Cable Assemblies
Construction:
Low Loss
Connector 1:
2.92mm Male
Connector 2:
2.92mm Male
Length (in.):
60
Impedance (Ohms):
50
PRODUCT DETAILS
HASCO Part Number: HLL150-29P-29P-60

RF Cable Assemblies offered by HASCO Components are available in a variety of RF connectors and custom lengths for production and testing environments.  HLL150-29P-29P-60 is an RF test cable manufactured by HASCO Components.  The RF cable used is HLL150, it is designed to be Phase Stable against Flexure. HLL150-29P-29P-60 has 2.92mm Male to 2.92mm Male connectors. This RF Assembly is rated up to 40 GHz. For additional technical information please refer to the datasheet. HASCO Cage Code: 0T8L4

pdf-icon.png« Click Here for the HLL150-29P-29P-60 Datasheetpdf-icon.png« Click Here for the HLL150-29P-29P-60 Outline Drawing

FEATURES:

  •  RoHS Compliant
  •  Low Loss, Low VSWR, High Reliability
  •  Phase Stable over Temp: 550ppm Max @ -40°C ~ +85°C
  •  Phase Stability Vs. Flexure: ± 8° @ 40GHz (When wrapped 360°around a 2" diameter mandrel)
  •  Available with Stainless Steel Armor
  •  Cable Insertion Loss: -.75 dB per Ft @ 40 GHz
  •  Amplitude Stability: < ± 0.4 through 40 GHz

ELECTRICAL SPECIFICATIONS:

Max Frequency (GHz)

40









Capacitance (pF/ft)

24









Velocity Propagation (%)

83









RF Leakage @ 18 GHz (dB)











Time Delay (ns/Ft)

1.2









Impedance (Ohms)

50









Frequency (GHz)

2

6

18

26.5

40

Power CW (Watts)

420

215

125

100

75

Phase Stability vs. Flexure (°)

±0.4

±1.2

±3.6

±5.3

±8.0

MECHANICAL SPECIFICATIONS:

VA Armor Max Dia. (Inch)

0.15

Min. bend radius (Inch)

.75

Recommend Bend Radius (Inch)

2.0

Temperature Range (°C)

-55 to +85

MATERIALS AND FINISHES:

DESCRIPTION

MATERIALS

FINISH OR COLOR

Cable Jacket

FEP

Blue

Marker

Mil-l-23053

White

Contacts

BeCu

Gold Plated

Insulators

PEEK

None

Connector Bodies

Stainless Steel

Passivated

Connector Nuts

Stainless Steel

Passivated

Gasket

Silicon Rubber

A-A-59588




Test #1: 2.92mm Male to 2.92mm Male, 24 inches, DC - 40 GHz



Test #2: 2.92mm to 2.92mm Male, 24 inches, DC - 40 GHz
WARRANTY INFORMATION
*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242
Part No: HLL150-29P-29P-60
2.92mm Male to 2.92mm Male Test Cable using HLL150 Low Loss Flexible Cable, Phase Stable vs. Flexure, 60 Inches

HASCO Part Number: HLL150-29P-29P-60

RF Cable Assemblies offered by HASCO Components are available in a variety of RF connectors and custom lengths for production and testing environments.  HLL150-29P-29P-60 is an RF test cable manufactured by HASCO Components.  The RF cable used is HLL150, it is designed to be Phase Stable against Flexure. HLL150-29P-29P-60 has 2.92mm Male to 2.92mm Male connectors. This RF Assembly is rated up to 40 GHz. For additional technical information please refer to the datasheet. HASCO Cage Code: 0T8L4

pdf-icon.png« Click Here for the HLL150-29P-29P-60 Datasheetpdf-icon.png« Click Here for the HLL150-29P-29P-60 Outline Drawing

FEATURES:

  •  RoHS Compliant
  •  Low Loss, Low VSWR, High Reliability
  •  Phase Stable over Temp: 550ppm Max @ -40°C ~ +85°C
  •  Phase Stability Vs. Flexure: ± 8° @ 40GHz (When wrapped 360°around a 2" diameter mandrel)
  •  Available with Stainless Steel Armor
  •  Cable Insertion Loss: -.75 dB per Ft @ 40 GHz
  •  Amplitude Stability: < ± 0.4 through 40 GHz

ELECTRICAL SPECIFICATIONS:

Max Frequency (GHz)

40









Capacitance (pF/ft)

24









Velocity Propagation (%)

83









RF Leakage @ 18 GHz (dB)











Time Delay (ns/Ft)

1.2









Impedance (Ohms)

50









Frequency (GHz)

2

6

18

26.5

40

Power CW (Watts)

420

215

125

100

75

Phase Stability vs. Flexure (°)

±0.4

±1.2

±3.6

±5.3

±8.0

MECHANICAL SPECIFICATIONS:

VA Armor Max Dia. (Inch)

0.15

Min. bend radius (Inch)

.75

Recommend Bend Radius (Inch)

2.0

Temperature Range (°C)

-55 to +85

MATERIALS AND FINISHES:

DESCRIPTION

MATERIALS

FINISH OR COLOR

Cable Jacket

FEP

Blue

Marker

Mil-l-23053

White

Contacts

BeCu

Gold Plated

Insulators

PEEK

None

Connector Bodies

Stainless Steel

Passivated

Connector Nuts

Stainless Steel

Passivated

Gasket

Silicon Rubber

A-A-59588




Test #1: 2.92mm Male to 2.92mm Male, 24 inches, DC - 40 GHz



Test #2: 2.92mm to 2.92mm Male, 24 inches, DC - 40 GHz

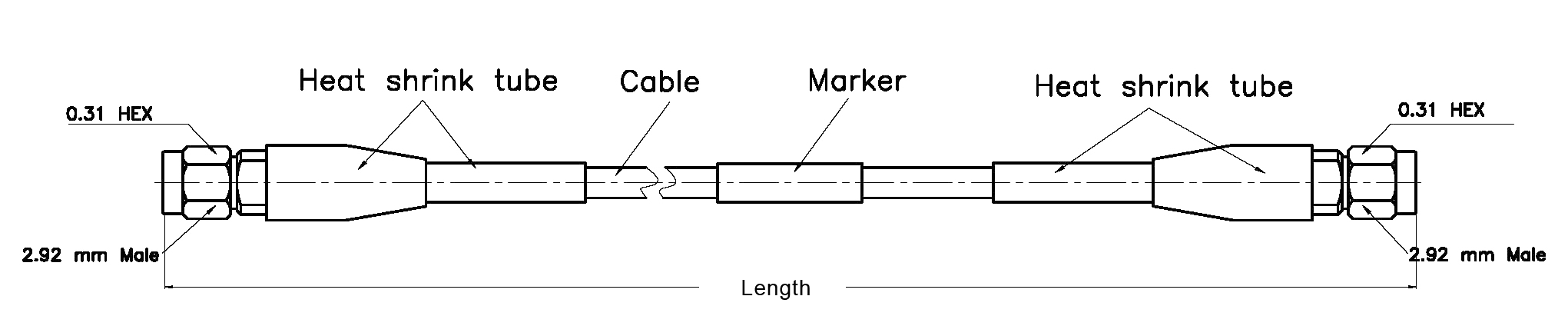

Part No: HLL150-29P-29P-60
LTR
DESCRIPTION
DATE
APPR
THIS DRAWING IS A CONTROLLED DOCUMENT
DRAWN BY:
CHECKED BY:
APPROVED BY:
THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF HASCO COMPONENTS AND SHALL NOT BE REPRODUCED, COPIED NOR USED - IN WHOLE OR IN PART - AS THE BASIS FOR THE MANUFACTURE OR SALE OF OTHER ITEMS WITHOUT THE EXPRESS, RITTEN PERMISSION OF HASCO COMPONENTS.

MATERIALS:

SEE DATA SHEET

CAGE CODE:

HLL150-29P-29P-60

MATERIALS:

SEE DATA SHEET

SCALE:

NS

SIZE:

REV:
