2.92mm Male to 2.92mm Male Ultra Low Loss Test Cable using HULL140 Flexible Cable, Phase Stable vs. Temp and Flexure, 18 Inches

$196.41
Part #:
HULL140-29P-29P-18
Brand:
HASCO Components
Weight:
2.50 Ounces
Shipping:
Calculated at checkout
Current Stock:
5

For quantities greater than current stock levels, please contact customer service at 1-888-498-3242

Pricing by Quantity:

QUANTITY

1 to 9

Buy 10 - 24

Buy 25 - 49

Buy 50 or above

PRICE

$196.41

$193.86

$190.52

$184.81

ADD TO WISHLIST

Description

HASCO Part Number: HULL140-29P-29P-18

RF Cable Assemblies offered by HASCO Components are available in a variety of RF connectors and custom lengths for production and testing environments.  HULL140-29P-29P-18 is an RF test cable manufactured by HASCO Components.  The RF cable used is HULL140, it is designed to be phase stable against both temperature and flexure. HULL140-29P-29P-18 has 2.92mm Male to 2.92mm Male connectors. This RF Assembly is rated up to 40 GHz. For additional technical information please refer to the datasheet. HASCO Cage Code: 0T8L4.

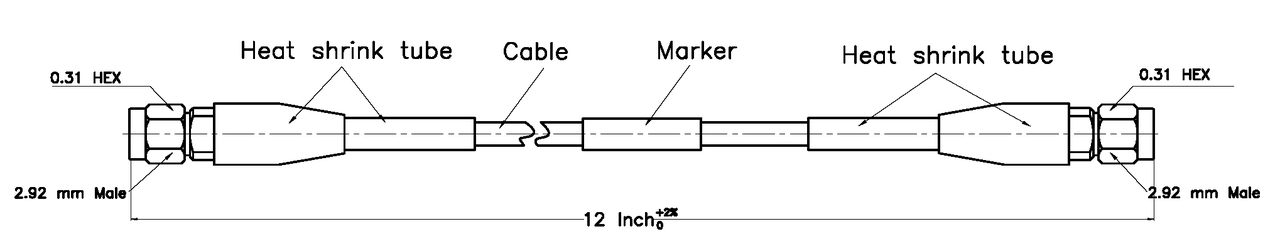

pdf-icon.png« Click Here for the HULL140-29P-29P-18 Datasheetpdf-icon.png« Click Here for the HULL140-29P-29P-18 Outline Drawing

FEATURES:

  •  RoHs Compliant
  •  Low Loss, Low VSWR, High Reliability
  •  Phase Stable over Temp: 500ppm Max @ -40°C ~ +85°C
  •  Phase Stability Vs. Flexure: ± 7.2° @ 40GHz (When wrapped 360° around a 2" diameter mandrel)
  •  Available with Stainless Steel Armor
  •  Cable Insertion Loss: -.75 dB per Ft @ 40 GHz
  •  Amplitude Stability: < ± 0.3 through 40 GHz

ELECTRICAL SPECIFICATIONS:

Max Frequency (GHz)

40









Capacitance (pF/ft)

23.7









Velocity Propagation (%)

85









RF Leakage @ 18 GHz (dB)

<-90









Time Delay (ns/Ft)

1.18









Impedance (Ohms)

50









Frequency (GHz)

2

6

18

26.5

40

Power CW (Watts)

415

210

120

100

75

Phase Stability vs. Flexure (°)

±0.36

±1.1

±3.3

±4.8

±7.2

MECHANICAL SPECIFICATIONS:

VA Armor Max Dia. (Inch)

0.142

Min. bend radius (Inch)

0.5

Recommend Bend Radius (Inch)

1.42

Temperature Range (°C)

-55 to +85

MATERIALS AND FINISHES:

DESCRIPTION

MATERIALS

FINISH OR COLOR

Cable Jacket

PFA

Gray

Marker

Mil-l-23053

White

Contacts

BeCu

Gold Plated

Insulators

PTFE

None

Connector Bodies

Stainless Steel

Passivated

Connector Nuts

Stainless Steel

Passivated

Gasket

Silicon Rubber

A-A-59588




Test #1: 2.92mm Male to 2.92mm Male, DC - 40 GHz



Test #2: 2.92mm to 2.92mm Male, DC - 40 GHz
*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242
Type:
Coax Cable Assemblies
Style:
Test Cable Assemblies
Application:
2.92mm Male to 2.92mm Male Cable Assemblies
Construction:
Low Loss
Connector 1:
2.92mm Male
Connector 2:
2.92mm Male
Length (in.):
18
Impedance (Ohms):
50
PRODUCT DETAILS
HASCO Part Number: HULL140-29P-29P-18

RF Cable Assemblies offered by HASCO Components are available in a variety of RF connectors and custom lengths for production and testing environments.  HULL140-29P-29P-18 is an RF test cable manufactured by HASCO Components.  The RF cable used is HULL140, it is designed to be phase stable against both temperature and flexure. HULL140-29P-29P-18 has 2.92mm Male to 2.92mm Male connectors. This RF Assembly is rated up to 40 GHz. For additional technical information please refer to the datasheet. HASCO Cage Code: 0T8L4.

pdf-icon.png« Click Here for the HULL140-29P-29P-18 Datasheetpdf-icon.png« Click Here for the HULL140-29P-29P-18 Outline Drawing

FEATURES:

  •  RoHs Compliant
  •  Low Loss, Low VSWR, High Reliability
  •  Phase Stable over Temp: 500ppm Max @ -40°C ~ +85°C
  •  Phase Stability Vs. Flexure: ± 7.2° @ 40GHz (When wrapped 360° around a 2" diameter mandrel)
  •  Available with Stainless Steel Armor
  •  Cable Insertion Loss: -.75 dB per Ft @ 40 GHz
  •  Amplitude Stability: < ± 0.3 through 40 GHz

ELECTRICAL SPECIFICATIONS:

Max Frequency (GHz)

40









Capacitance (pF/ft)

23.7









Velocity Propagation (%)

85









RF Leakage @ 18 GHz (dB)

<-90









Time Delay (ns/Ft)

1.18









Impedance (Ohms)

50









Frequency (GHz)

2

6

18

26.5

40

Power CW (Watts)

415

210

120

100

75

Phase Stability vs. Flexure (°)

±0.36

±1.1

±3.3

±4.8

±7.2

MECHANICAL SPECIFICATIONS:

VA Armor Max Dia. (Inch)

0.142

Min. bend radius (Inch)

0.5

Recommend Bend Radius (Inch)

1.42

Temperature Range (°C)

-55 to +85

MATERIALS AND FINISHES:

DESCRIPTION

MATERIALS

FINISH OR COLOR

Cable Jacket

PFA

Gray

Marker

Mil-l-23053

White

Contacts

BeCu

Gold Plated

Insulators

PTFE

None

Connector Bodies

Stainless Steel

Passivated

Connector Nuts

Stainless Steel

Passivated

Gasket

Silicon Rubber

A-A-59588




Test #1: 2.92mm Male to 2.92mm Male, DC - 40 GHz



Test #2: 2.92mm to 2.92mm Male, DC - 40 GHz
WARRANTY INFORMATION
*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242
Part No: HULL140-29P-29P-18
2.92mm Male to 2.92mm Male Ultra Low Loss Test Cable using HULL140 Flexible Cable, Phase Stable vs. Temp and Flexure, 18 Inches

HASCO Part Number: HULL140-29P-29P-18

RF Cable Assemblies offered by HASCO Components are available in a variety of RF connectors and custom lengths for production and testing environments.  HULL140-29P-29P-18 is an RF test cable manufactured by HASCO Components.  The RF cable used is HULL140, it is designed to be phase stable against both temperature and flexure. HULL140-29P-29P-18 has 2.92mm Male to 2.92mm Male connectors. This RF Assembly is rated up to 40 GHz. For additional technical information please refer to the datasheet. HASCO Cage Code: 0T8L4.

pdf-icon.png« Click Here for the HULL140-29P-29P-18 Datasheetpdf-icon.png« Click Here for the HULL140-29P-29P-18 Outline Drawing

FEATURES:

  •  RoHs Compliant
  •  Low Loss, Low VSWR, High Reliability
  •  Phase Stable over Temp: 500ppm Max @ -40°C ~ +85°C
  •  Phase Stability Vs. Flexure: ± 7.2° @ 40GHz (When wrapped 360° around a 2" diameter mandrel)
  •  Available with Stainless Steel Armor
  •  Cable Insertion Loss: -.75 dB per Ft @ 40 GHz
  •  Amplitude Stability: < ± 0.3 through 40 GHz

ELECTRICAL SPECIFICATIONS:

Max Frequency (GHz)

40









Capacitance (pF/ft)

23.7









Velocity Propagation (%)

85









RF Leakage @ 18 GHz (dB)

<-90









Time Delay (ns/Ft)

1.18









Impedance (Ohms)

50









Frequency (GHz)

2

6

18

26.5

40

Power CW (Watts)

415

210

120

100

75

Phase Stability vs. Flexure (°)

±0.36

±1.1

±3.3

±4.8

±7.2

MECHANICAL SPECIFICATIONS:

VA Armor Max Dia. (Inch)

0.142

Min. bend radius (Inch)

0.5

Recommend Bend Radius (Inch)

1.42

Temperature Range (°C)

-55 to +85

MATERIALS AND FINISHES:

DESCRIPTION

MATERIALS

FINISH OR COLOR

Cable Jacket

PFA

Gray

Marker

Mil-l-23053

White

Contacts

BeCu

Gold Plated

Insulators

PTFE

None

Connector Bodies

Stainless Steel

Passivated

Connector Nuts

Stainless Steel

Passivated

Gasket

Silicon Rubber

A-A-59588




Test #1: 2.92mm Male to 2.92mm Male, DC - 40 GHz



Test #2: 2.92mm to 2.92mm Male, DC - 40 GHz
