2.92mm Male to 2.92mm Male Ultra Low Loss Test Cable using HULL140 Flexible Cable, Phase Stable vs. Temp and Flexure, 48 Inches

2.92mm Male to 2.92mm Male Ultra Low Loss Test Cable using HULL140 Flexible Cable, Phase Stable vs. Temp and Flexure, 48 Inches

Sale Price:
$264.60
Model #:
HULL140-29P-29P-48
Weight:
2.50 Ounces
Part Number:
HULL140-29P-29P-48
Shipping:
Calculated at checkout
Current Stock:
10

*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242


Quantity:


Product Description

HASCO Part Number: HULL140-29P-29P-48

RF Cable Assemblies offered by HASCO Components are available in a variety of RF connectors and custom lengths for production and testing environments.  HULL140-29P-29P-48 is an RF test cable manufactured by HASCO Components.  The RF cable used is HULL140, it is designed to be phase stable against both temperature and flexure. HULL140-29P-29P-48 has 2.92mm Male to 2.92mm Male connectors. This RF Assembly is rated up to 40 GHz. For additional technical information please refer to the datasheet. Insulated Wire Cage Code: 59528

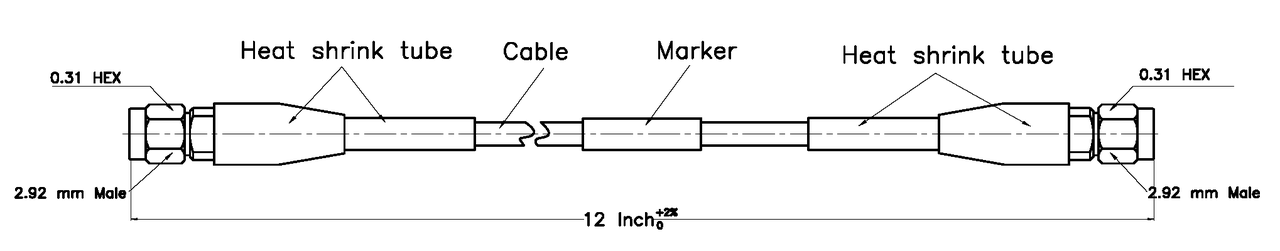

pdf-icon.png« Click Here for the HULL140-29P-29P-48 Outline Drawing pdf-icon.png« Click Here for the HULL140-29P-29P-48 Outline Drawing

FEATURES:

  •  RoHs Compliant

  •  Low Loss, Low VSWR, High Reliability

  •  Phase Stable over Temp: 500ppm Max @ -40°C ~ +85°C

  •  Phase Stability Vs. Flexure: ± 7.2° @ 40GHz
    (When wrapped 360°around a 2" diameter mandrel)

  •  Available with Stainless Steel Armor

  •  Cable Insertion Loss: -.75 dB per Ft @ 40 GHz

  •  Amplitude Stability: < ± 0.3 through 40 GHz

ELECTRICAL SPECIFICATIONS:

Max Frequency (GHz)

40









Capacitance (pF/ft)

23.7









Velocity Propagation (%)

85









RF Leakage @ 18 GHz (dB)

<-90









Time Delay (ns/Ft)

1.18









Impedance (Ohms)

50









Frequency (GHz)

2

6

18

26.5

40

Power CW (Watts)

415

210

120

100

75

Phase Stability vs. Flexure (°)

±0.36

±1.1

±3.3

±4.8

±7.2

MECHANICAL SPECIFICATIONS:

VA Armor Max Dia. (Inch)

0.142

Min. bend radius (Inch)

0.5

Recommend Bend Radius (Inch)

1.42

Temperature Range (°C)

-55 to +85

MATERIALS AND FINISHES:

DESCRIPTION

MATERIALS

FINISH OR COLOR

Cable Jacket

PFA

Gray

Marker

Mil-l-23053

White

Contacts

BeCu

Gold Plated

Insulators

PTFE

None

Connector Bodies

Stainless Steel

Passivated

Connector Nuts

Stainless Steel

Passivated

Gasket

Silicon Rubber

A-A-59588




Test #1: 2.92mm Male to 2.92mm Male, DC - 40 GHz



Test #2: 2.92mm to 2.92mm Male, DC - 40 GHz
