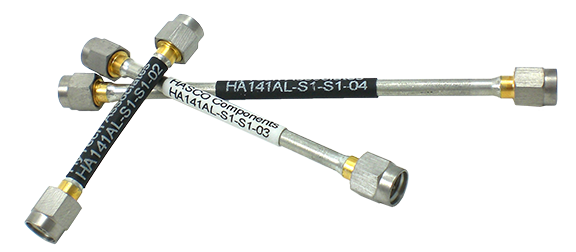

SMA Male to SMA Male .141 Hand Formable Cable using RG402 Aluminum Coax, 5 Inches

$24.42
Part #:
HA141AL-S1-S1-05
Brand:
HASCO Components
Weight:
1.00 Ounces
Shipping:
Calculated at checkout

Out of stock - Call for availability

For quantities greater than current stock levels, please contact customer service at 1-888-498-3242

Pricing by Quantity:

QUANTITY

1 to 9

Buy 10 - 24

Buy 25 - 49

Buy 50 - 99

Buy 100 or above

PRICE

$24.42

$23.25

$22.48

$21.70

$20.93

ADD TO WISHLIST

Description

HASCO Part Number: HA141AL-S1-S1-05

RF Cable Assemblies offered by HASCO Components are available in a variety of RF connectors and custom lengths for production and testing environments.  HA141AL-S1-S1-05 is an RF cable assembly manufactured by HASCO Components.  The cable assembly uses an RG402 Aluminum Hand Formable coax type. HA141AL-S1-S1-05 has SMA Male to SMA Male connectors. This RF Assembly is available in with different connectors and operating frequency ranges. For additional technical information please refer to the datasheet.

pdf-icon.png« Click Here for the HA141AL-S1-S1-05 Datasheet

FEATURES:

  •  RoHs Compliant

  •  Easily hand Formable to Final Shape

  •  SMA Straight Connector

  •  100% VSWR test to 18 GHz

  •  100% Hi-pot and continuity tests

  •  Cable Insertion Loss at +25°C: 0.8 dB + 0.065 x length (per inch)

ELECTRICAL SPECIFICATIONS:

Max Frequency (GHz)

18









Capacitance (pF/ft)

29









Velocity Propagation (%)

70









RF Leakage @ 18 GHz (dB)

 >100









Impedance (Ohms)

50









Power CW (Watts)

 Call for
More Info









MECHANICAL SPECIFICATIONS:

 Outer Conductor Diameter (Inch)  .141

Min. bend radius (Inch)

.25

Recommend Bend Radius (Inch)

1.5

Raw Cable Temperature Range (°C)

-55 to +85°C

MATERIALS AND FINISHES:

DESCRIPTION

MATERIALS

FINISH OR COLOR

Marker

Mil-l-23053

Black

Contacts

Brass

Gold Plated

Insulators

PTFE

None

Connector Bodies

Brass

Ni/Au

Connector Nuts

Stainless Steel

Passivated

Gasket

Silicon Rubber

A-A-59588




*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242
Type:
Coax Cable Assemblies
Style:
Conformable Cable Assemblies
Application:
SMA Male to SMA Male Cable Assemblies
Construction:
Standard
Connector 1:
SMA Male
Connector 2:
SMA Male
Length (in.):
5
Impedance (Ohms):
50
PRODUCT DETAILS
HASCO Part Number: HA141AL-S1-S1-05

RF Cable Assemblies offered by HASCO Components are available in a variety of RF connectors and custom lengths for production and testing environments.  HA141AL-S1-S1-05 is an RF cable assembly manufactured by HASCO Components.  The cable assembly uses an RG402 Aluminum Hand Formable coax type. HA141AL-S1-S1-05 has SMA Male to SMA Male connectors. This RF Assembly is available in with different connectors and operating frequency ranges. For additional technical information please refer to the datasheet.

pdf-icon.png« Click Here for the HA141AL-S1-S1-05 Datasheet

FEATURES:

  •  RoHs Compliant

  •  Easily hand Formable to Final Shape

  •  SMA Straight Connector

  •  100% VSWR test to 18 GHz

  •  100% Hi-pot and continuity tests

  •  Cable Insertion Loss at +25°C: 0.8 dB + 0.065 x length (per inch)

ELECTRICAL SPECIFICATIONS:

Max Frequency (GHz)

18









Capacitance (pF/ft)

29









Velocity Propagation (%)

70









RF Leakage @ 18 GHz (dB)

 >100









Impedance (Ohms)

50









Power CW (Watts)

 Call for
More Info









MECHANICAL SPECIFICATIONS:

 Outer Conductor Diameter (Inch)  .141

Min. bend radius (Inch)

.25

Recommend Bend Radius (Inch)

1.5

Raw Cable Temperature Range (°C)

-55 to +85°C

MATERIALS AND FINISHES:

DESCRIPTION

MATERIALS

FINISH OR COLOR

Marker

Mil-l-23053

Black

Contacts

Brass

Gold Plated

Insulators

PTFE

None

Connector Bodies

Brass

Ni/Au

Connector Nuts

Stainless Steel

Passivated

Gasket

Silicon Rubber

A-A-59588




WARRANTY INFORMATION
*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242
Part No: HA141AL-S1-S1-05
SMA Male to SMA Male .141 Hand Formable Cable using RG402 Aluminum Coax, 5 Inches

HASCO Part Number: HA141AL-S1-S1-05

RF Cable Assemblies offered by HASCO Components are available in a variety of RF connectors and custom lengths for production and testing environments.  HA141AL-S1-S1-05 is an RF cable assembly manufactured by HASCO Components.  The cable assembly uses an RG402 Aluminum Hand Formable coax type. HA141AL-S1-S1-05 has SMA Male to SMA Male connectors. This RF Assembly is available in with different connectors and operating frequency ranges. For additional technical information please refer to the datasheet.

pdf-icon.png« Click Here for the HA141AL-S1-S1-05 Datasheet

FEATURES:

  •  RoHs Compliant

  •  Easily hand Formable to Final Shape

  •  SMA Straight Connector

  •  100% VSWR test to 18 GHz

  •  100% Hi-pot and continuity tests

  •  Cable Insertion Loss at +25°C: 0.8 dB + 0.065 x length (per inch)

ELECTRICAL SPECIFICATIONS:

Max Frequency (GHz)

18









Capacitance (pF/ft)

29









Velocity Propagation (%)

70









RF Leakage @ 18 GHz (dB)

 >100









Impedance (Ohms)

50









Power CW (Watts)

 Call for
More Info









MECHANICAL SPECIFICATIONS:

 Outer Conductor Diameter (Inch)  .141

Min. bend radius (Inch)

.25

Recommend Bend Radius (Inch)

1.5

Raw Cable Temperature Range (°C)

-55 to +85°C

MATERIALS AND FINISHES:

DESCRIPTION

MATERIALS

FINISH OR COLOR

Marker

Mil-l-23053

Black

Contacts

Brass

Gold Plated

Insulators

PTFE

None

Connector Bodies

Brass

Ni/Au

Connector Nuts

Stainless Steel

Passivated

Gasket

Silicon Rubber

A-A-59588





Part No: HA141AL-S1-S1-05
LTR
DESCRIPTION
DATE
APPR
THIS DRAWING IS A CONTROLLED DOCUMENT
DRAWN BY:
CHECKED BY:
APPROVED BY:
THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF HASCO COMPONENTS AND SHALL NOT BE REPRODUCED, COPIED NOR USED - IN WHOLE OR IN PART - AS THE BASIS FOR THE MANUFACTURE OR SALE OF OTHER ITEMS WITHOUT THE EXPRESS, RITTEN PERMISSION OF HASCO COMPONENTS.

MATERIALS:

SEE DATA SHEET

CAGE CODE:

HA141AL-S1-S1-05

MATERIALS:

SEE DATA SHEET

SCALE:

NS

SIZE:

REV:
