N Female 4 Hole 1.00" Square Flange - Accepts Pin Dia. .015

$53.76
Part #:
312-03SF
Brand:
Southwest Microwave
Weight:
1.00 Ounces
Shipping:
Calculated at checkout
Current Stock:
8

For quantities greater than current stock levels, please contact customer service at 1-888-498-3242

Pricing by Quantity:

QUANTITY

1 to 9

10 to 24

25 to 49

50 or above

PRICE

$53.76

$48.27

$43.77

$39.34

ADD TO WISHLIST

Description

HASCO Part Number: 312-03SF

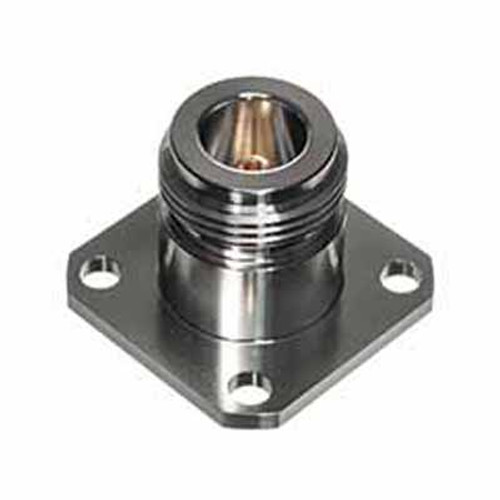

312-03SF is a 4 Hole Square Flange N Type Female connector manufactured by Southwest Microwave. This N Type Female accepts a 0.015" Pin Diameter and will operate up to 18 GHz. The flange size is 1" All Southwest Microwave N Type connectors are made of Stainless Steel with either Gold Plated Brass or Beryllium Copper center contacts. This connector conforms to MIL-STD-348A and MIL-PRF-39012. Southwest Microwave Cage Code: 66049

pdf-icon.png« Click Here for the 312-03SF Outline Drawing

Electrical:

  • Mode Free Through 18.0 GHz
  • Low VSWR: DC to 18.0 GHz ……...1.15:1 max
  • Low RF Leakage _< -100 dB
  • Low Insertion Loss

Materials/Construction:

  • Housing: Steel, CRES Alloy UNS S30300 Per ASTM A582, Passivated Per ASTM A967
  • Contact: Beryllium Copper (BeCu), UNS C17300 Per ASTM B196,
    Gold Plated Per MIL-G-45204 or ASTM B488
  • Dielectric: Virgin PTFE Fluorocarbon Per ASTM D1710
  • Center Contact Capture: High Temperature Ultem 1000 Per ASTM D5205
  • Connector Interface: Per MIL-STD-348, Figs. 304-1 and 304-2
  • Raised Metal Grounding Ring for 360° Metal-to-metal Contact

Environmental:

  • Temperature: -55° C to +165° C
*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242
HASCO Cage Code:
0T8L4
PRODUCT DETAILS
HASCO Part Number: 312-03SF

312-03SF is a 4 Hole Square Flange N Type Female connector manufactured by Southwest Microwave. This N Type Female accepts a 0.015" Pin Diameter and will operate up to 18 GHz. The flange size is 1" All Southwest Microwave N Type connectors are made of Stainless Steel with either Gold Plated Brass or Beryllium Copper center contacts. This connector conforms to MIL-STD-348A and MIL-PRF-39012. Southwest Microwave Cage Code: 66049

pdf-icon.png« Click Here for the 312-03SF Outline Drawing

Electrical:

  • Mode Free Through 18.0 GHz
  • Low VSWR: DC to 18.0 GHz ……...1.15:1 max
  • Low RF Leakage _< -100 dB
  • Low Insertion Loss

Materials/Construction:

  • Housing: Steel, CRES Alloy UNS S30300 Per ASTM A582, Passivated Per ASTM A967
  • Contact: Beryllium Copper (BeCu), UNS C17300 Per ASTM B196,
    Gold Plated Per MIL-G-45204 or ASTM B488
  • Dielectric: Virgin PTFE Fluorocarbon Per ASTM D1710
  • Center Contact Capture: High Temperature Ultem 1000 Per ASTM D5205
  • Connector Interface: Per MIL-STD-348, Figs. 304-1 and 304-2
  • Raised Metal Grounding Ring for 360° Metal-to-metal Contact

Environmental:

  • Temperature: -55° C to +165° C
WARRANTY INFORMATION
*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242
Part No: 312-03SF
N Female 4 Hole 1.00" Square Flange - Accepts Pin Dia. .015

HASCO Part Number: 312-03SF

312-03SF is a 4 Hole Square Flange N Type Female connector manufactured by Southwest Microwave. This N Type Female accepts a 0.015" Pin Diameter and will operate up to 18 GHz. The flange size is 1" All Southwest Microwave N Type connectors are made of Stainless Steel with either Gold Plated Brass or Beryllium Copper center contacts. This connector conforms to MIL-STD-348A and MIL-PRF-39012. Southwest Microwave Cage Code: 66049

pdf-icon.png« Click Here for the 312-03SF Outline Drawing

Electrical:

  • Mode Free Through 18.0 GHz
  • Low VSWR: DC to 18.0 GHz ……...1.15:1 max
  • Low RF Leakage _< -100 dB
  • Low Insertion Loss

Materials/Construction:

  • Housing: Steel, CRES Alloy UNS S30300 Per ASTM A582, Passivated Per ASTM A967
  • Contact: Beryllium Copper (BeCu), UNS C17300 Per ASTM B196,
    Gold Plated Per MIL-G-45204 or ASTM B488
  • Dielectric: Virgin PTFE Fluorocarbon Per ASTM D1710
  • Center Contact Capture: High Temperature Ultem 1000 Per ASTM D5205
  • Connector Interface: Per MIL-STD-348, Figs. 304-1 and 304-2
  • Raised Metal Grounding Ring for 360° Metal-to-metal Contact

Environmental:

  • Temperature: -55° C to +165° C
