Description
Inner Only DC Block with N Type Connectors operating from 10 MHz to 18 GHz
An RF DC Block is a device used prevent the flow of direct current through a transmission line and introduce minimal RF noise. There are three type of DC blocks: Inner, Outer, and Inner/Outer. Inner DC Blocks have a capacitor in series with the center conductor, outer has a capacitor in the outer conductor and lastly Inner / Outer DC blocks have both. HASCO has various DC Blocks with various connectors and frequency configurations.

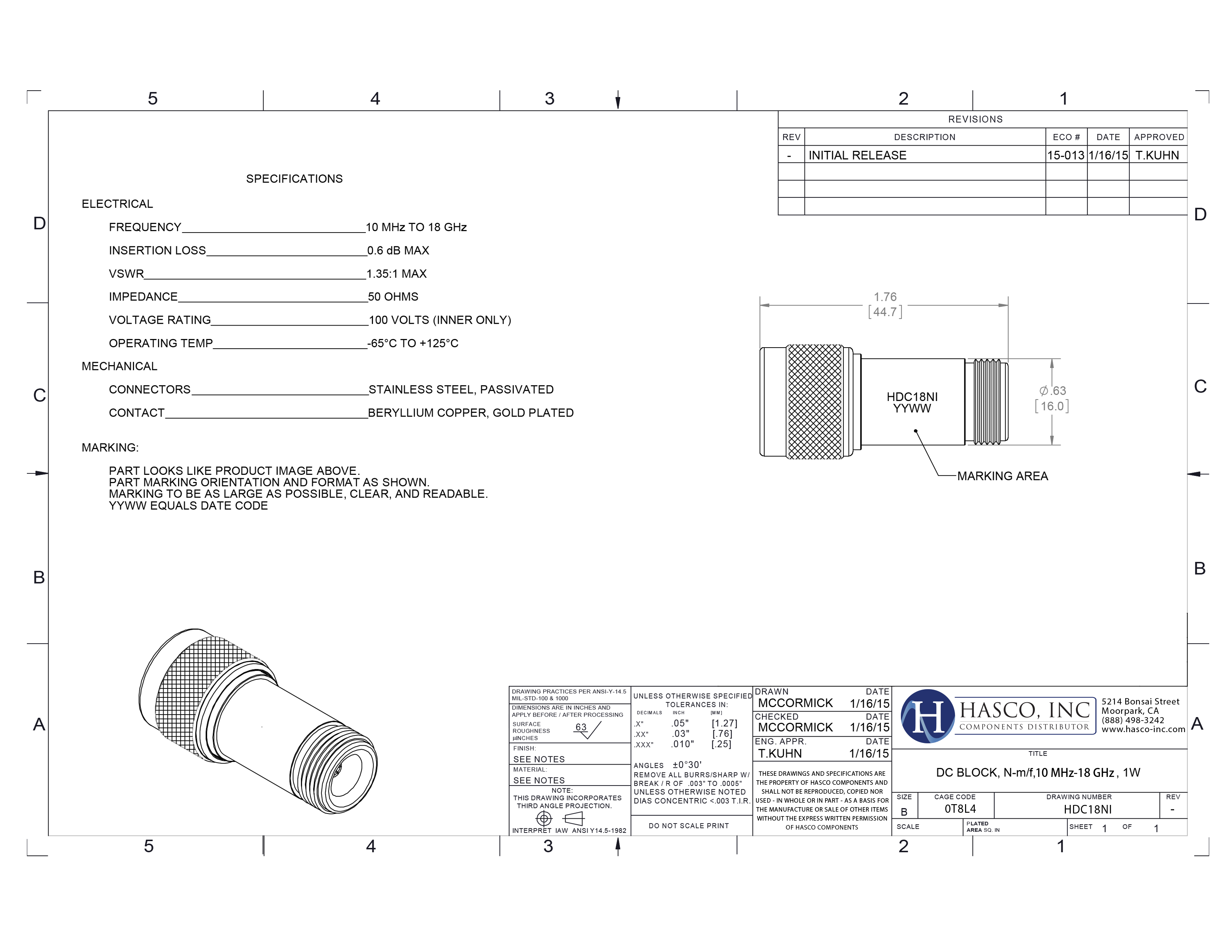

HDC18NI - N Type RF DC Block Inner Only- 10 MHz to 18 GHz
Material
• N Connectors: Passivated Stainless Steel
• Conductors: Gold Plated Beryllium Copper
• Housing: High Temperature Plastic
Environmental Data
• Temperature Range: -65°C - 125°C
- Type:
- Inner Only
- Style:
- N DC Blocks
- Application:
- .01 to 18 GHz
- Impedance (Ohms):
- 50
