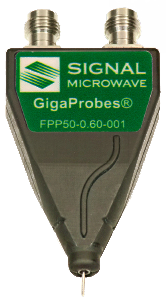

Standard Differential Probe with 0.6mm Pin Pitch - 50 GHz

Product Image 1 - Standard Differential Probe with 0.6mm Pin Pitch - 50 GHz

Standard Differential Probe with 0.6mm Pin Pitch - 50 GHz

$5,000.00

Part #:

FPP50-0.60-001

Brand:

Signal Microwave

Weight:

1.00 Ounces

Shipping:

Calculated at checkout

Out of stock - Call for availability

PRODUCT DETAILS
Warranty Information

Description

Signal Microwave Part Number: FPP50-0.60-001

These probes are designed to support the industry’s demand for higher data rates over differential traces. They are used to characterize transmission lines and devices. A newly patented differential probe design was developed to replace internal cable wires with a printed circuit board. It has a high bandwidth differential transmission line that can be used with test equipment to measure differential S-parameters. There are also de-embedding methods and boards available that support the probes. HASCO Cage Code: 0T8L4

« Datasheet

Electrical

Item	Specification
Differential	100 Ohms
Frequency Range	DC to 50 GHz

Mechanical

Item	Specification
Pin Pitch	0.60mm

Material

Item	Specification
Pin	Stainless Steel

*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242

Pin Pitch:: 0.6mm
Frequency, Max:: 50 GHz
Frequency, Min:: DC
Pin Material:: Stainless Steel
Download[PDF]:: https://www.hasco-inc.com/content/FPP50%20Series_Datasheet.pdf
Body Style:: Standard

PRODUCT DETAILS

Signal Microwave Part Number: FPP50-0.60-001

These probes are designed to support the industry’s demand for higher data rates over differential traces. They are used to characterize transmission lines and devices. A newly patented differential probe design was developed to replace internal cable wires with a printed circuit board. It has a high bandwidth differential transmission line that can be used with test equipment to measure differential S-parameters. There are also de-embedding methods and boards available that support the probes. HASCO Cage Code: 0T8L4

« Datasheet

Electrical

Item	Specification
Differential	100 Ohms
Frequency Range	DC to 50 GHz

Mechanical

Item	Specification
Pin Pitch	0.60mm

Material

Item	Specification
Pin	Stainless Steel

WARRANTY INFORMATION

*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242
