Description

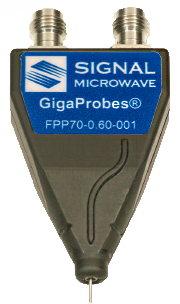

Signal Microwave Part Number: FPP70-0.60-001
These probes are designed to support the industry’s demand for higher data rates over differential traces. They are used to characterize transmission lines and devices. A newly patented differential probe design was developed to replace internal cable wires with a printed circuit board. It has a high bandwidth differential transmission line that can be used with test equipment to measure differential S-parameters. There are also de-embedding methods and boards available that support the probes. HASCO Cage Code: 0T8L4
« DatasheetFeatures
|
|
|
100Ω true odd mode differential |
|
No ground pins |
|
Multiple probe pin pitches (0.6mm, 0.8mm, 1.0mm) |
|
Straight 1-hole mounting |
|
Multiple pin lengths available |
Electrical
Item |
Specification |
|
Differential |
100 Ohms |
|
Frequency Range |
DC to 70 GHz |
Mechanical
Item |
Specification |
|---|---|
|
Pin Pitch |
0.60mm |
Material
Item |
Specification |
|---|---|
|
Pin |
Stainless Steel |
*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242
- Pin Pitch:
- 0.6mm
- Frequency, Max:
- 70 GHz
- Frequency, Min:
- DC
- Pin Material:
- Stainless Steel
- Download[PDF]:
- https://www.hasco-inc.com/content/FPP70%20Series_Datasheet.pdf
- Body Style:
- Standard
PRODUCT DETAILS
Signal Microwave Part Number: FPP70-0.60-001
These probes are designed to support the industry’s demand for higher data rates over differential traces. They are used to characterize transmission lines and devices. A newly patented differential probe design was developed to replace internal cable wires with a printed circuit board. It has a high bandwidth differential transmission line that can be used with test equipment to measure differential S-parameters. There are also de-embedding methods and boards available that support the probes. HASCO Cage Code: 0T8L4
« DatasheetFeatures
|
|
|
100Ω true odd mode differential |
|
No ground pins |
|
Multiple probe pin pitches (0.6mm, 0.8mm, 1.0mm) |
|
Straight 1-hole mounting |
|
Multiple pin lengths available |
Electrical
Item |
Specification |
|
Differential |
100 Ohms |
|
Frequency Range |
DC to 70 GHz |
Mechanical
Item |
Specification |
|---|---|
|
Pin Pitch |
0.60mm |
Material
Item |
Specification |
|---|---|
|
Pin |
Stainless Steel |
