Posted by HASCO Components on 11th Dec 2023


We are happy to feature the Ruggedized Series Cables by HASCO. These cable assemblies are internally ruggedized with multi-layer copper spiral and braided armor. They offer excellent phase and amplitude stability vs. flexure. The ruggedized cable series are RoHs Compliant.
Our RF Cable Assemblies available in a variety of RF connectors, frequencies, and custom lengths for production and testing environments.


Featured Products

HLL185R - 1.85mm

- 67 GHz Max Frequency
- Insertion Loss: < 4 dB @ 67 GHz
- Phase Stability over Flexure:< ±6.5° @ 67 GHz
- Lengths from 24" to 36"

HLL283R - SMA

- 26.5 GHz Max Frequency
- Insertion Loss: < 2.6 dB @ 26.5 GHz
- Phase Stability over Flexure: < ±2.7° @ 26.5 GHz
- Lengths from 24" to 36"

HLL228R - 2.4mm

- 50 GHz Max Frequency
- Insertion Loss: < 2.8 dB @ 50 GHz
- Phase Stability over Flexure: < ±5° @ 50 GHz
- Lengths from 6" to 48"

HLL228R - 2.92mm

- 40 GHz Max Frequency
- Insertion Loss: < 2.8 dB @ 40 GHz
- Phase Stability over Flexure: < ±4° @ 40 GHz
- Lengths from 24" to 36"


Our Ruggedized Series Cables are in stock, and ready to ship daily.

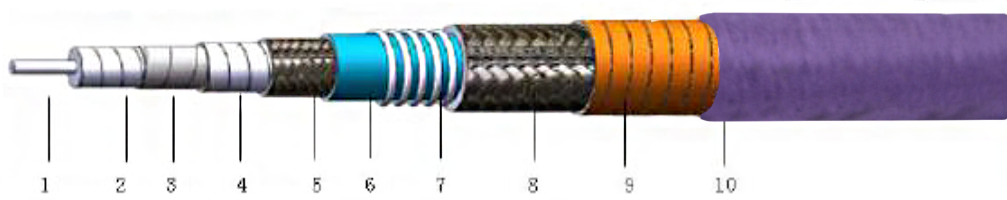

Construction & Performance

1. Center Conductor: Silver Plated Copper

2. Dielectric (2.92, 2.4, 1.85): LDPTFE

2. Dielectric (SMA): PTFE

3. Inner Shield: Silver plated flat Copper wire braid

4. Middle Shield: LDPTFE

5. Outer Shield: Silver plated Copper wire braid

6. Jacket: FEP

7. Inner Armor: Silver plated Copper

8. Str. Shield (2.4, 1.85): Silver plated Copper wire

8. Str. Shield (SMA, 2.92): Tin plated Copper wire

9. Anti-Twist Layer (SMA, 2.4, 1.85): Polyimide

9. Anti-Twist Layer (2.92): PTFE wrapping tape

10. Outer Armor: Purple PTFE Braid
