Weekly Showcase - August 2, 2024

Weekly Showcase - August 2, 2024

Posted by HASCO Components on 2nd Aug 2024


FedEx 2-Day Shipping Rates for Qualifying Orders

Dual Directional Coupler, 20 dB, SMA Female - 6 to 18 GHz

P/N: WMDDC-6-18-20dB-S

Brand: Werbel Microwave

The WMDDC-6-18-20dB-S is an SMA female Dual Directional Coupler with a wide frequency range spanning from 6 GHz to 18 GHz by Werbel Microwave. Features excellent return loss, coupling flatness and high directivity. Its advantage is a smaller and more lightweight housing than two independent couplers. It eliminates reflections caused by additional cabling. Improved performance over separate couplers due to the lack of interconnections and cable between. Designed, assembled, and tested in USA with lead free solder making it RoHS compliant.

Product Page

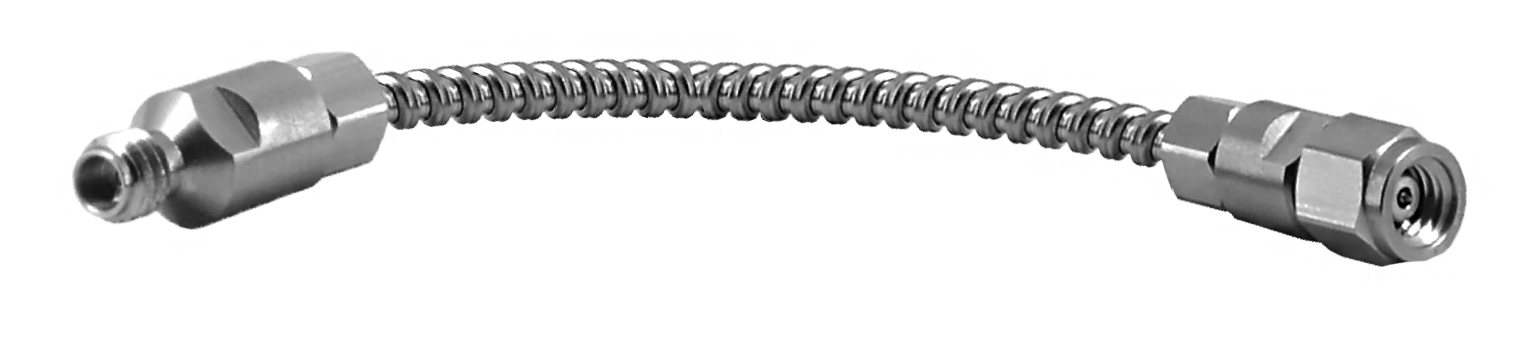

Littlebend HLB055 Armored Ultra Flexible RF Cable with 1.0mm Male to 1.0mm Female Connectors - 6 inch

P/N: HLB055A-WP-WJ-06

Brand: Littlebend

The HLB055A Little-110 Armored Ultra Flexible RF Cable is designed for demanding microwave interconnect requirements. They are phase and amplitude stable. This cable is well suited for dense microwave packaging with a 0.79” minimum bend radius in an 0.055” cable with stainless steel braid. HLB055A Littlebend 110 GHz armored flexible cables are terminated with high performance 1.0mm straight connectors. Also available in SMA, 1.85mm, 2.4mm, 2.92mm, SMP and SMPM connectors. Additional configurations available by special order.

Product Page


WR-15 Fixed Millimeter Waveguide Attenuator, V-Band, 30 dB

P/N: HWFA15-30-2.0

Brand: HASCO Components

FIRESALE Item

The HWFA15-30-2.0 is a WR-15 Fixed Millimeter Waveguide Attenuator.

Our Firesale components are high performance components that either may be overstocked or discontinued. We extend the same level of support and guarantee the quality of these units, as with our standard stock items.

Check out our other FIRESALE parts here!

Product Page


HASCO RF MARKETING PARTNER

HASCO RF Marketing Partner

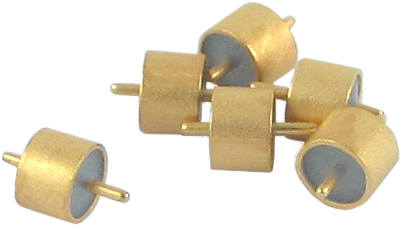

Feedthru/Hermetic Seal, 0.012" Dia. - 42 GHz

P/N: HA-2940

Brand: HASCO Components

The HA-2940 is a Feedthru/Hermetic Seal. The end launch accessories are designed to interface with Southwest Microwave's and other manufacturer's end launch connectors that use common end launch .005 pin, .007 pin, .009 pin, .010 pin, .012 pin, .015 pin, .020 pin, .0290 pin, /0390 pin, .0480 pin and .0635 pin connectors.

Product Page

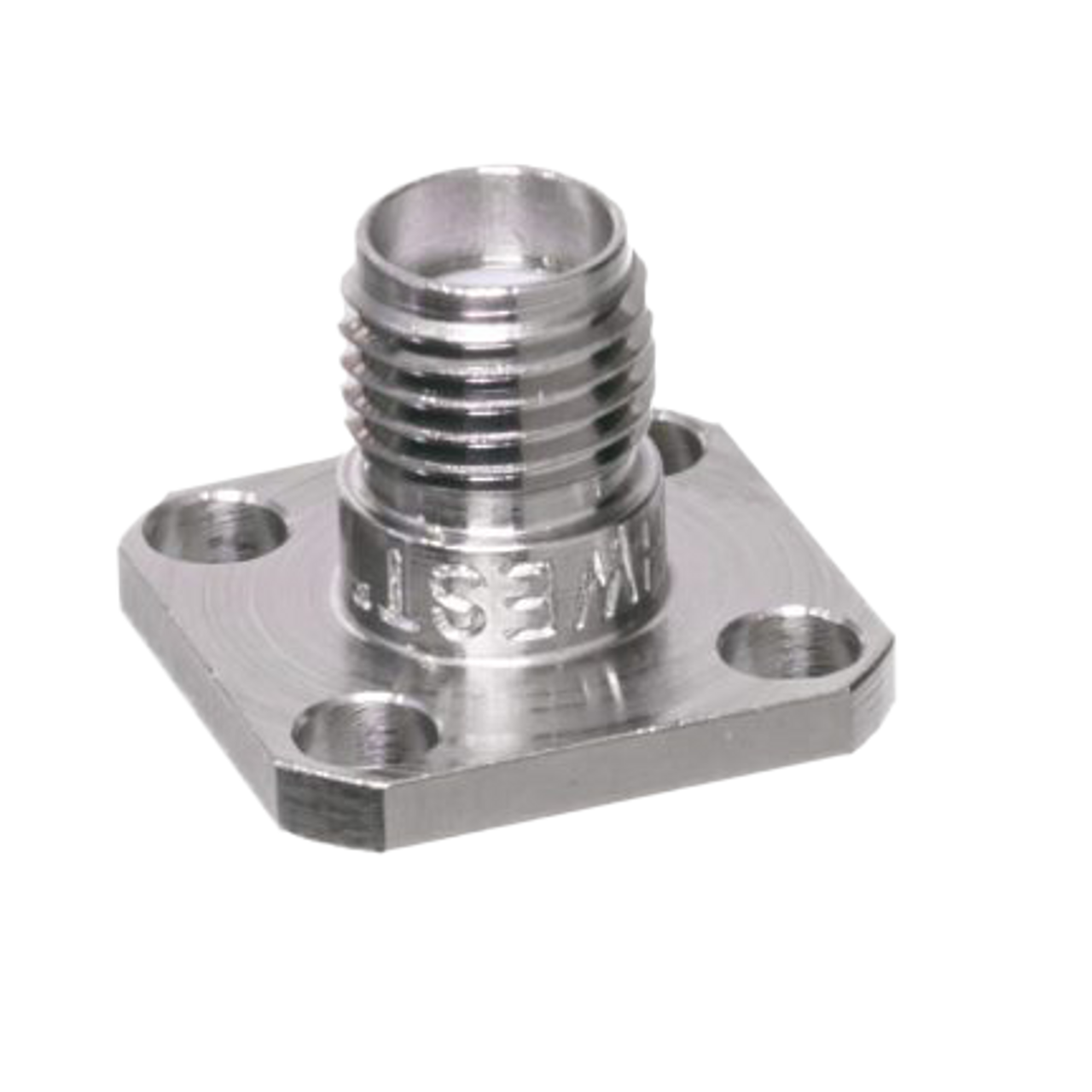

SMA Female Connector, 4-Hole 0.500" Square Flange - 27 GHz

P/N: 212-501SF

Brand: Southwest Microwave

The 212-501SF is a 4-Hole Square Flange SMA Female connector manufactured by Southwest Microwave. This SMA Female accepts a 0.015" Pin Diameter, 0.500" square flange, and will operate up to 27 GHz.

Product Page


HASCO's Quality Standard


When ordering from HASCO, customers can expect several significant benefits. HASCO is renowned for its commitment to producing high-quality products. Our components are carefully crafted using premium materials and advanced manufacturing processes, guaranteeing long-lasting performance and durability.



HASCO's exceptional customer service and technical support add to the overall value. Expert guidance is readily available to assist customers in choosing the right components for their applications, while prompt and reliable delivery ensures customers receive their orders on time.

• Let us know how we can assist you •


Request a Quote
