3.5mm Male to 3.5mm Male Test Cable using HLL142 Low Loss Flexible Cable, Phase Stable vs. Temperature, 18 Inches

$135.83
Part #:
HLL142-35P-35P-18
Brand:
HASCO Components
Weight:
5.00 Ounces
Shipping:
Calculated at checkout
Current Stock:
2

For quantities greater than current stock levels, please contact customer service at 1-888-498-3242

Pricing by Quantity:

QUANTITY

1 to 9

10 to 49

50 to 99

100 to 249

250 or above

PRICE

$135.83

$131.75

$127.80

$124.00

$120.25

ADD TO WISHLIST

Description

HASCO Part Number: HLL142-35P-35P-18

RF Cable Assemblies offered by HASCO Components are available in a variety of RF connectors and custom lengths for production and testing environments.  HLL142-35P-35P-18 is an RF test cable manufactured by HASCO Components.  The RF cable used is HLL142, it is designed to be phase stable against temperature. HLL142-35P-35P-18 has 3.5mm Male to 3.5mm Male connectors. This RF Assembly is rated up to 26.5 GHz. For additional technical information please refer to the datasheet. HASCO Cage Code: 0T8L4

pdf-icon.png« Click Here for the HLL142-35P-35P-18 Datasheetpdf-icon.png« Click Here for the HLL142-35P-35P-18 Outline Drawing

FEATURES:

  •  RoHS Compliant

  •  Low Loss, Low VSWR, High Reliability

  •  Phase Stable over Temp: 250ppm Max @ +22°C ~ +100°C

  •  Phase Stability Vs. Flexure: ± 5.3° @ 26.5GHz
    (When wrapped 360°around a 1.5 diameter mandrel)

  •  Available with Stainless Steel Armor

  •  VSWR: 1.35:1

  •  Cable Insertion Loss: -.48 dB per ft @ 26.5GHz

  •  Amplitude Stability: < ± 0. 3 through 26.5GHz

ELECTRICAL SPECIFICATIONS:

Max Frequency (GHz)

26.5









Capacitance (pF/ft)

82









Velocity Propagation (%)

80









RF Leakage @ 18 GHz (dB)

 95









Time Delay (ns/Ft)

4.14









Impedance (Ohms)

50









Frequency (GHz)

2

6

18

26.5



Power CW (Watts)

510

285

165

135



Attenuation Typ. (dB/m)

0.0271

0.661

0.825

1.469



Phase Stability vs. Flexure (°)

±0.4

±1.2

±3.6

±5.3



MECHANICAL SPECIFICATIONS:

Cable Max Dia. (Inch)

0.195

Min. bend radius (Inch)

1.0

Recommend Bend Radius (Inch)

2.0

Temperature Range (°C)
*High Temperature Strain Relief Available upon Request.

-55 to +85

Raw Cable Temperature Range (°C)

-55 to +200

MATERIALS AND FINISHES:

DESCRIPTION

MATERIALS

FINISH OR COLOR

Cable Jacket

FEP

Light Green

Marker

Mil-l-23053

White

Contacts

BeCu

Gold Plated

Insulators

PEEK

None

Connector Bodies

Stainless Steel

Passivated

Connector Nuts

Stainless Steel

Passivated

Gasket

Silicon Rubber

A-A-59588




Test #1: 3.5mm Male to 3.5mm Male, 24 inches, DC - 30 GHz



Test #2: 3.5mm Male to 3.5mm Male, 24 inches, DC - 30 GHz
*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242
Type:
Coax Cable Assemblies
Style:
Test Cable Assemblies
Application:
3.5mm Male to 3.5mm Male Cable Assemblies
Construction:
Low Loss
Connector 1:
3.5mm Male
Connector 2:
3.5mm Male
Length (in.):
18
Impedance (Ohms):
50
PRODUCT DETAILS
HASCO Part Number: HLL142-35P-35P-18

RF Cable Assemblies offered by HASCO Components are available in a variety of RF connectors and custom lengths for production and testing environments.  HLL142-35P-35P-18 is an RF test cable manufactured by HASCO Components.  The RF cable used is HLL142, it is designed to be phase stable against temperature. HLL142-35P-35P-18 has 3.5mm Male to 3.5mm Male connectors. This RF Assembly is rated up to 26.5 GHz. For additional technical information please refer to the datasheet. HASCO Cage Code: 0T8L4

pdf-icon.png« Click Here for the HLL142-35P-35P-18 Datasheetpdf-icon.png« Click Here for the HLL142-35P-35P-18 Outline Drawing

FEATURES:

  •  RoHS Compliant

  •  Low Loss, Low VSWR, High Reliability

  •  Phase Stable over Temp: 250ppm Max @ +22°C ~ +100°C

  •  Phase Stability Vs. Flexure: ± 5.3° @ 26.5GHz
    (When wrapped 360°around a 1.5 diameter mandrel)

  •  Available with Stainless Steel Armor

  •  VSWR: 1.35:1

  •  Cable Insertion Loss: -.48 dB per ft @ 26.5GHz

  •  Amplitude Stability: < ± 0. 3 through 26.5GHz

ELECTRICAL SPECIFICATIONS:

Max Frequency (GHz)

26.5









Capacitance (pF/ft)

82









Velocity Propagation (%)

80









RF Leakage @ 18 GHz (dB)

 95









Time Delay (ns/Ft)

4.14









Impedance (Ohms)

50









Frequency (GHz)

2

6

18

26.5



Power CW (Watts)

510

285

165

135



Attenuation Typ. (dB/m)

0.0271

0.661

0.825

1.469



Phase Stability vs. Flexure (°)

±0.4

±1.2

±3.6

±5.3



MECHANICAL SPECIFICATIONS:

Cable Max Dia. (Inch)

0.195

Min. bend radius (Inch)

1.0

Recommend Bend Radius (Inch)

2.0

Temperature Range (°C)
*High Temperature Strain Relief Available upon Request.

-55 to +85

Raw Cable Temperature Range (°C)

-55 to +200

MATERIALS AND FINISHES:

DESCRIPTION

MATERIALS

FINISH OR COLOR

Cable Jacket

FEP

Light Green

Marker

Mil-l-23053

White

Contacts

BeCu

Gold Plated

Insulators

PEEK

None

Connector Bodies

Stainless Steel

Passivated

Connector Nuts

Stainless Steel

Passivated

Gasket

Silicon Rubber

A-A-59588




Test #1: 3.5mm Male to 3.5mm Male, 24 inches, DC - 30 GHz



Test #2: 3.5mm Male to 3.5mm Male, 24 inches, DC - 30 GHz
WARRANTY INFORMATION
*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242
Part No: HLL142-35P-35P-18
3.5mm Male to 3.5mm Male Test Cable using HLL142 Low Loss Flexible Cable, Phase Stable vs. Temperature, 18 Inches

HASCO Part Number: HLL142-35P-35P-18

RF Cable Assemblies offered by HASCO Components are available in a variety of RF connectors and custom lengths for production and testing environments.  HLL142-35P-35P-18 is an RF test cable manufactured by HASCO Components.  The RF cable used is HLL142, it is designed to be phase stable against temperature. HLL142-35P-35P-18 has 3.5mm Male to 3.5mm Male connectors. This RF Assembly is rated up to 26.5 GHz. For additional technical information please refer to the datasheet. HASCO Cage Code: 0T8L4

pdf-icon.png« Click Here for the HLL142-35P-35P-18 Datasheetpdf-icon.png« Click Here for the HLL142-35P-35P-18 Outline Drawing

FEATURES:

  •  RoHS Compliant

  •  Low Loss, Low VSWR, High Reliability

  •  Phase Stable over Temp: 250ppm Max @ +22°C ~ +100°C

  •  Phase Stability Vs. Flexure: ± 5.3° @ 26.5GHz
    (When wrapped 360°around a 1.5 diameter mandrel)

  •  Available with Stainless Steel Armor

  •  VSWR: 1.35:1

  •  Cable Insertion Loss: -.48 dB per ft @ 26.5GHz

  •  Amplitude Stability: < ± 0. 3 through 26.5GHz

ELECTRICAL SPECIFICATIONS:

Max Frequency (GHz)

26.5









Capacitance (pF/ft)

82









Velocity Propagation (%)

80









RF Leakage @ 18 GHz (dB)

 95









Time Delay (ns/Ft)

4.14









Impedance (Ohms)

50









Frequency (GHz)

2

6

18

26.5



Power CW (Watts)

510

285

165

135



Attenuation Typ. (dB/m)

0.0271

0.661

0.825

1.469



Phase Stability vs. Flexure (°)

±0.4

±1.2

±3.6

±5.3



MECHANICAL SPECIFICATIONS:

Cable Max Dia. (Inch)

0.195

Min. bend radius (Inch)

1.0

Recommend Bend Radius (Inch)

2.0

Temperature Range (°C)
*High Temperature Strain Relief Available upon Request.

-55 to +85

Raw Cable Temperature Range (°C)

-55 to +200

MATERIALS AND FINISHES:

DESCRIPTION

MATERIALS

FINISH OR COLOR

Cable Jacket

FEP

Light Green

Marker

Mil-l-23053

White

Contacts

BeCu

Gold Plated

Insulators

PEEK

None

Connector Bodies

Stainless Steel

Passivated

Connector Nuts

Stainless Steel

Passivated

Gasket

Silicon Rubber

A-A-59588




Test #1: 3.5mm Male to 3.5mm Male, 24 inches, DC - 30 GHz



Test #2: 3.5mm Male to 3.5mm Male, 24 inches, DC - 30 GHz

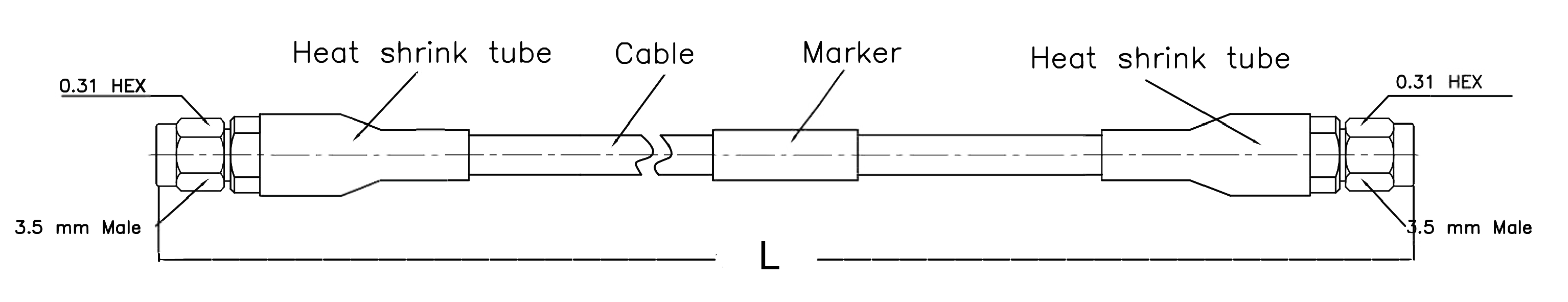

Part No: HLL142-35P-35P-18
LTR
DESCRIPTION
DATE
APPR
THIS DRAWING IS A CONTROLLED DOCUMENT
DRAWN BY:
CHECKED BY:
APPROVED BY:
THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF HASCO COMPONENTS AND SHALL NOT BE REPRODUCED, COPIED NOR USED - IN WHOLE OR IN PART - AS THE BASIS FOR THE MANUFACTURE OR SALE OF OTHER ITEMS WITHOUT THE EXPRESS, RITTEN PERMISSION OF HASCO COMPONENTS.

MATERIALS:

SEE DATA SHEET

CAGE CODE:

HLL142-35P-35P-18

MATERIALS:

SEE DATA SHEET

SCALE:

NS

SIZE:

REV:
