- 3.5mm Male to 3.5mm Male Test Cable using HLL142 Low Loss Flexible Cable, Phase Stable vs. Temperature, 48 Inches
3.5mm Male to 3.5mm Male Test Cable using HLL142 Low Loss Flexible Cable, Phase Stable vs. Temperature, 48 Inches
3.5mm Male to 3.5mm Male Test Cable using HLL142 Low Loss Flexible Cable, Phase Stable vs. Temperature, 48 Inches
Sale Price:
$193.45
Part #:
HLL142-35P-35P-48
Brand:
Weight:
5.00 Ounces
Part Number:
HLL142-35P-35P-48
Shipping:
Calculated at checkout
Current Stock:
Out of stock
*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242
)
Product Description
HASCO Part Number: HLL142-35P-35P-48
RF Cable Assemblies offered by HASCO Components are available in a variety of RF connectors and custom lengths for production and testing environments. HLL142-35P-35P-48 is an RF test cable manufactured by HASCO Components. The RF cable used is HLL142, it is designed to be phase stable against temperature. HLL142-35P-35P-48 has 3.5mm Male to 3.5mm Male connectors. This RF Assembly is rated up to 26.5 GHz. For additional technical information please refer to the datasheet. Insulated Wire Cage Code: 59528

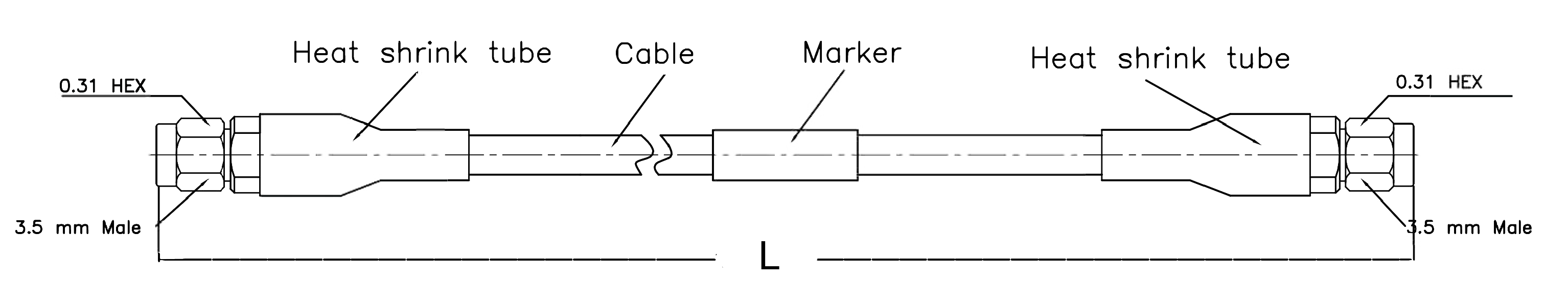

« Click Here for the HLL142-35P-35P-48 Datasheet « Click Here for the HLL142-35P-35P-48 Outline DrawingFEATURES:
- RoHS Compliant
- Low Loss, Low VSWR, High Reliability
- Phase Stable over Temp: 250ppm Max @ +22°C ~ +100°C
- Phase Stability Vs. Flexure: ± 5.3° @ 26.5GHz
(When wrapped 360°around a 1.5 diameter mandrel) - Available with Stainless Steel Armor
- VSWR: 1.35:1
- Cable Insertion Loss: -.48 dB per ft @ 26.5GHz
- Amplitude Stability: < ± 0. 3 through 26.5GHz
ELECTRICAL SPECIFICATIONS:
|
Max Frequency (GHz) |
26.5 |
|
|
|
|
|
Capacitance (pF/ft) |
82 |
|
|
|
|
|
Velocity Propagation (%) |
80 |
|
|
|
|
|
RF Leakage @ 18 GHz (dB) |
95 |
|
|
|
|
|
Time Delay (ns/Ft) |
4.14 |
|
|
|
|
|
Impedance (Ohms) |
50 |
|
|
|
|
|
Frequency (GHz) |
2 |
6 |
18 |
26.5 |
|
|
Power CW (Watts) |
510 |
285 |
165 |
135 |
|
|
Attenuation Typ. (dB/m) |
0.0271 |
0.661 |
0.825 |
1.469 |
|
|
Phase Stability vs. Flexure (°) |
±0.4 |
±1.2 |
±3.6 |
±5.3 |
MECHANICAL SPECIFICATIONS:
|
Cable Max Dia. (Inch) |
0.195 |
|
Min. bend radius (Inch) |
1.0 |
|
Recommend Bend Radius (Inch) |
2.0 |
|
Temperature Range (°C) |
-55 to +85 |
|
Raw Cable Temperature Range (°C) |
-55 to +200 |
MATERIALS AND FINISHES:
|
DESCRIPTION |
MATERIALS |
FINISH OR COLOR |
|
Cable Jacket |
FEP |
Light Green |
|
Marker |
Mil-l-23053 |
White |
|
Contacts |
BeCu |
Gold Plated |
|
Insulators |
PEEK |
None |
|
Connector Bodies |
Stainless Steel |
Passivated |
|
Connector Nuts |
Stainless Steel |
Passivated |
|
Gasket |
Silicon Rubber |
A-A-59588 |
Test #1: 3.5mm Male to 3.5mm Male, 24 inches, DC - 30 GHz
Test #2: 3.5mm Male to 3.5mm Male, 24 inches, DC - 30 GHz
- Parameter Value
- HASCO Cage Code 0T8L4
Related Products
-
Part #:HLL142-35P-35P-60$213.45 -
Part #:HLL142-35P-35P-36$170.40 -
Part #:HLL142-35P-35P-24$147.40 -
Part #:HLL142-35P-35J-48$206.60 -
Part #:HLL142-35P-35J-72$242.25
