3.5mm Male to 3.5mm Male Test Cable using HLL142 Low Loss Flexible Cable, Phase Stable vs. Temperature, 36 Inches

3.5mm Male to 3.5mm Male Test Cable using HLL142 Low Loss Flexible Cable, Phase Stable vs. Temperature, 36 Inches

Sale Price:
$154.91
Model #:
HLL142-35P-35P-36
Weight:
5.00 Ounces
Part Number:
HLL142-35P-35P-36
Shipping:
Calculated at checkout
Current Stock:
1

*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242


Quantity:


Product Description

Hasco Part Number: HLL142-35P-35P-36

RF Cable Assemblies offered by HASCO Components are available in a variety of RF connectors and custom lengths for production and testing environments.  HLL142-35P-35P-36 is an RF test cable manufactured by HASCO Components.  The RF cable used is HLL142, it is designed to be phase stable against temperature. HLL142-35P-35P-36 has 3.5mm Male to 3.5mm Male connectors. This RF Assembly is rated up to 26.5 GHz. For additional technical information please refer to the datasheet. Insulated Wire Cage Code: 59528

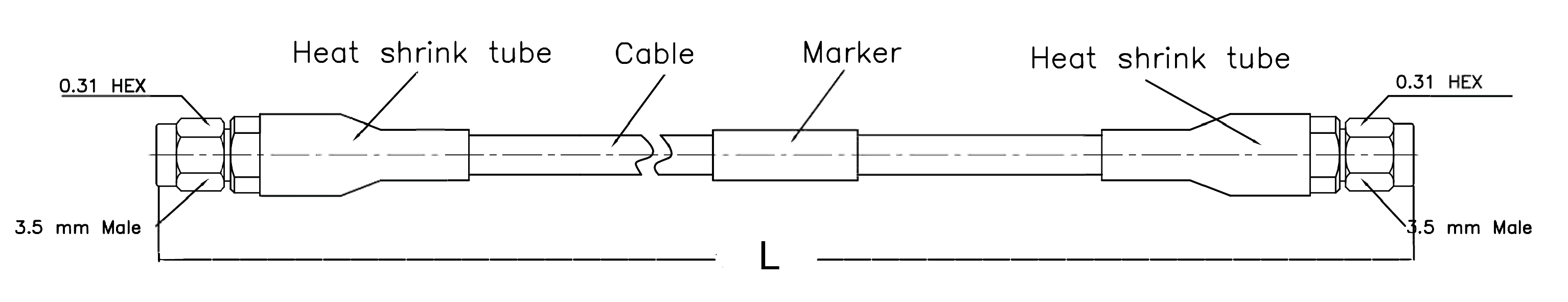

pdf-icon.png« Click Here for the HLL142-35P-35P-36 Datasheet pdf-icon.png« Click Here for the HLL142-35P-35P-36 Outline Drawing

FEATURES:

  •  RoHS Compliant

  •  Low Loss, Low VSWR, High Reliability

  •  Phase Stable over Temp: 250ppm Max @ +22°C ~ +100°C

  •  Phase Stability Vs. Flexure: ± 5.3° @ 26.5GHz
    (When wrapped 360°around a 1.5 diameter mandrel)

  •  Available with Stainless Steel Armor

  •  VSWR: 1.35:1

  •  Cable Insertion Loss: -.48 dB per ft @ 26.5GHz

  •  Amplitude Stability: < ± 0. 3 through 26.5GHz

ELECTRICAL SPECIFICATIONS:

Max Frequency (GHz)

26.5









Capacitance (pF/ft)

82









Velocity Propagation (%)

80









RF Leakage @ 18 GHz (dB)

 95









Time Delay (ns/Ft)

4.14









Impedance (Ohms)

50









Frequency (GHz)

2

6

18

26.5



Power CW (Watts)

510

285

165

135



Attenuation Typ. (dB/m)

0.0271

0.661

0.825

1.469



Phase Stability vs. Flexure (°)

±0.4

±1.2

±3.6

±5.3



MECHANICAL SPECIFICATIONS:

Cable Max Dia. (Inch)

0.195

Min. bend radius (Inch)

1.0

Recommend Bend Radius (Inch)

2.0

Temperature Range (°C)
*High Temperature Strain Relief Available upon Request.

-55 to +85

Raw Cable Temperature Range (°C)

-55 to +200

MATERIALS AND FINISHES:

DESCRIPTION

MATERIALS

FINISH OR COLOR

Cable Jacket

FEP

Light Green

Marker

Mil-l-23053

White

Contacts

BeCu

Gold Plated

Insulators

PEEK

None

Connector Bodies

Stainless Steel

Passivated

Connector Nuts

Stainless Steel

Passivated

Gasket

Silicon Rubber

A-A-59588




Test #1: 3.5mm Male to 3.5mm Male, 24 inches, DC - 30 GHz



Test #2: 3.5mm Male to 3.5mm Male, 24 inches, DC - 30 GHz
