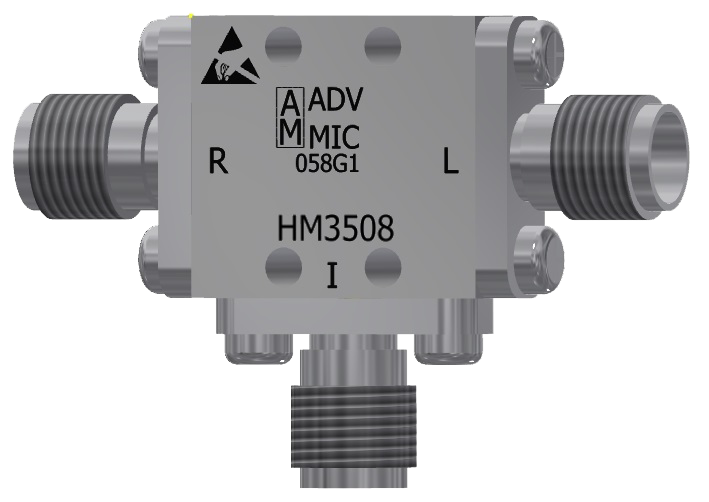

Double Balanced Microwave Mixer with SMA Female Connectors

P/N: HM3508

Brand: Advanced Microwave

The Advanced Microwave HM3508 is a double-balanced 25 to 40 GHz microwave mixer with an IF frequency range of DC to 8 GHz. The LO is driven between +14 to +17 dBm, and as an up or down converter features typical conversion loss of 10 dB, L to I isolation of 30 dB, and L toR isolation of 32 dB. Maximum Input power is +20dBm.

Type N Female to Type N Female In-Series Adapter - 18 GHz

P/N: NJ-NJ-18

Brand: HASCO Components

NJ-NJ-18 is a N Type Female to N Type Female in-series adapter from HASCO Components. This between series N Type to N Type coax adapter will operate up to 18 GHz. Adapters that have a male to female or plug to jack configuration are known as "connector savers." Typically, a low loss or low VSWR male to female adapter is placed on more expensive component connectors to prevent damage.

Littlebend HLB098 Ultra-Flexible Cable with 2.92mm Male Connectors - 10 inches

P/N: HLB098-KP-KP-10

Brand: Littlebend

The HLB098 Littlebend Ultra Flexible RF Cable is designed for demanding microwave interconnect requirements. They are phase and amplitude stable. This cable is well suited for dense microwave packaging with a 0.20” minimum bend radius in an 0.098” cable with stainless steel braid. HLB098 Littlebend 40GHz flexible cables are terminated with high performance 2.92mm straight connectors.

HASCO RF MARKETING PARTNER

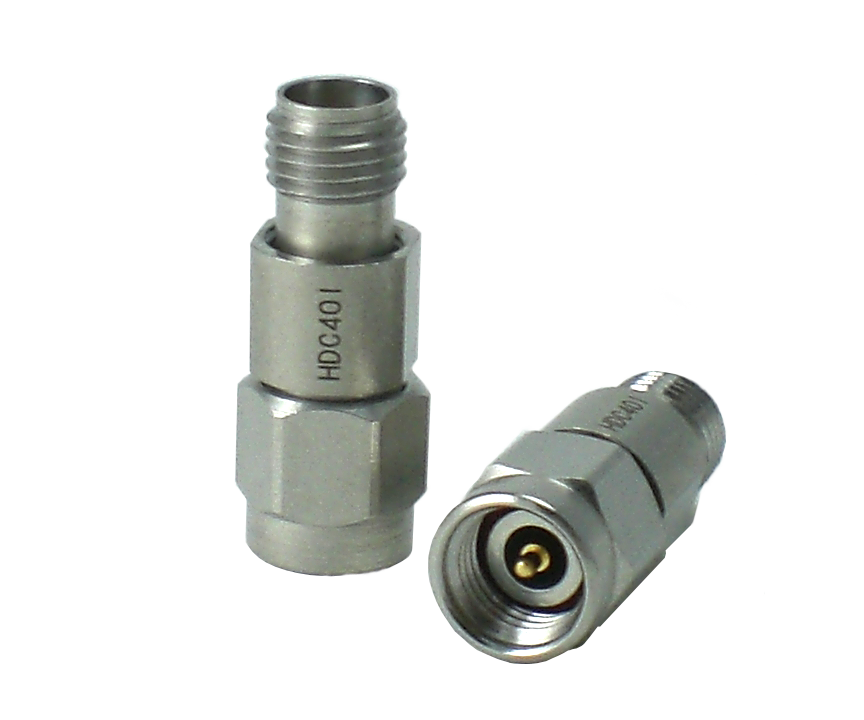

DC Block with 2.92mm Male to 2.92mm Female Connectors - Inner Only

P/N: HDC40I

Brand: HASCO Components

The HDC40I is a 2.92mm DC Block, inner only design from HASCO. An RF Inner Only DC Block is a coaxial device that prevents DC current flow through the center conductor while introducing minimal RF noise. The manner by which DC Blocks prevent DC current is by inserting blocking capacitors in-line with the desired blocking path. In the case of an Inner DC Blocks, they have a capacitor in series with the center conductor.

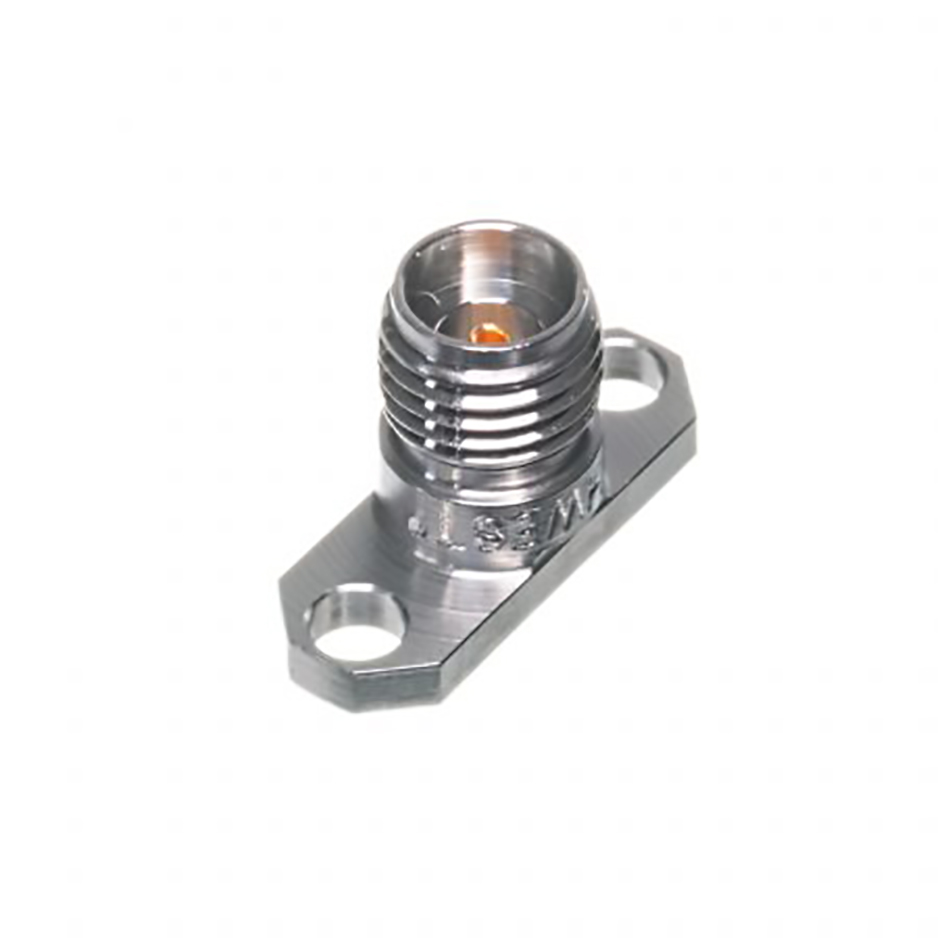

2.92mm Female Connector, 2-Hole .625" Long Flange - Accepts .012" Pin

P/N: 1014-01SF

Brand: Southwest Microwave

1014-01SF is a 2 Hole Long Flange 2.92mm Female connector manufactured by Southwest Microwave. This 2.92mm Female accepts a 0.012" Pin Diameter and will operate up to 40 GHz. The flange size is .625" All Southwest Microwave 2.92mm connectors are made of Stainless Steel with either Gold Plated Brass or Beryllium Copper center contacts.
